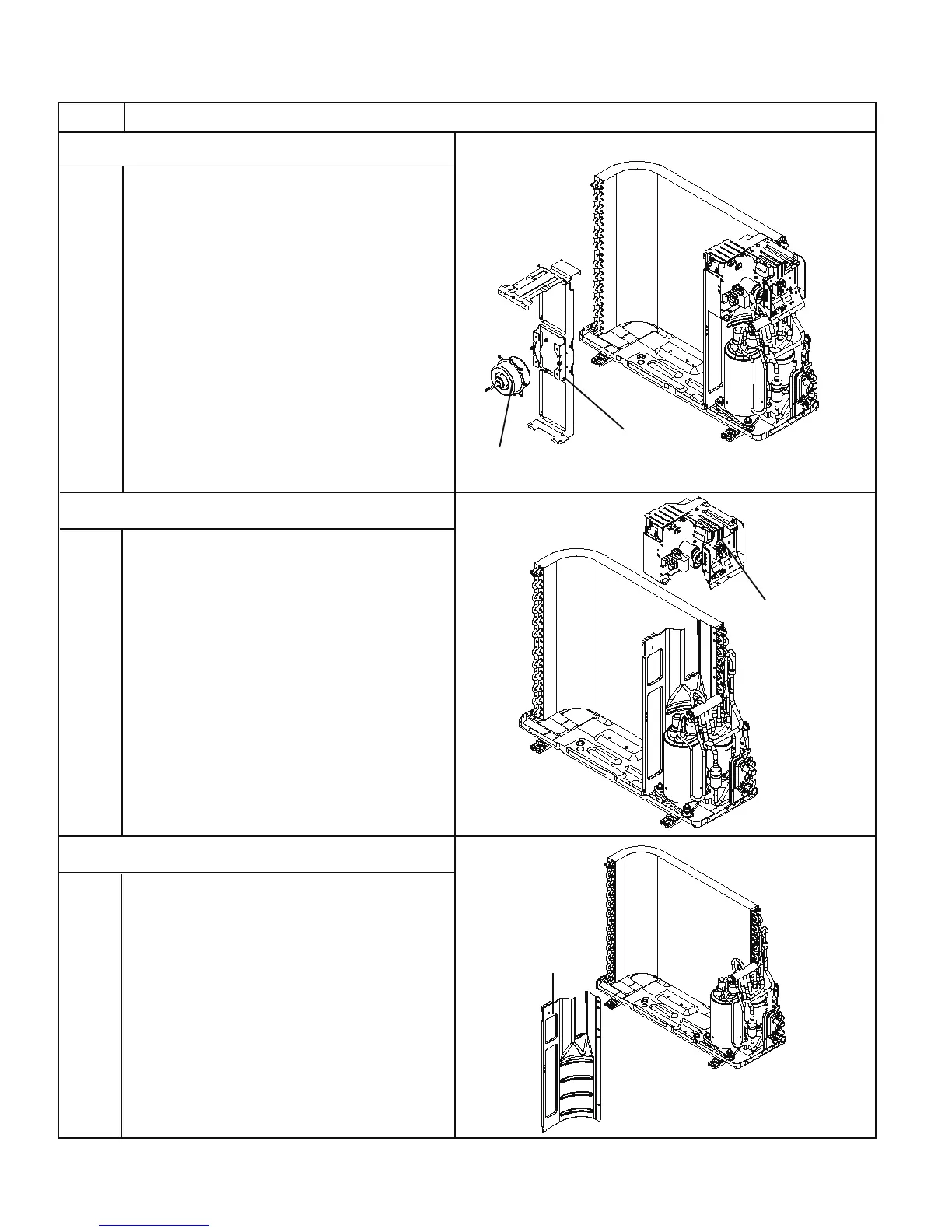

6.Remove motor and motor support
motor
motor support
8.Remove clapboard
clapboard
7.Remove electric box assy
electric box assy
Remove the screws fixing motor and then remove
the motor.
Remove the screws fixing motor support and then
remove the motor support.
Remove the screws fixing clapboard and then
remove the clapboard.
Remove the screws fixing electric box assy; cut off
the tieline; pull out each wiring terminal; lift the
electric box assy upwards to remove it.
Note:
When pulling out the wiring terminal, pay attention
to loose the clasp and don’t pull it so hard.
