Service Manual
Step Ps rocedure

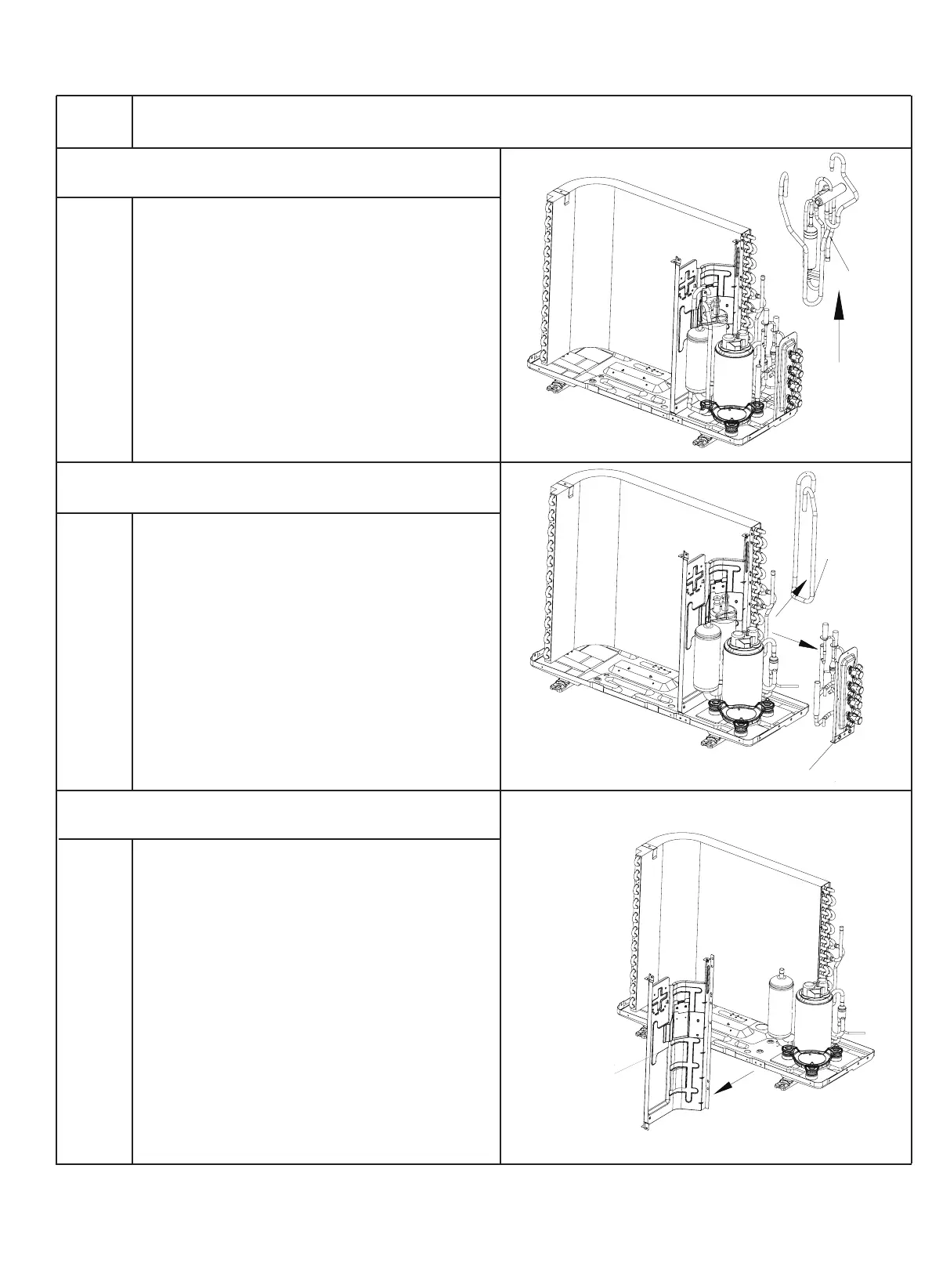

13. Remove 4-way valve assy
14. Remove valve support sub-assy and expansion valve assy
Unsolder the welding joint connecting the 4-way valve
assy with compressor suction and discharge port, the
valve with the outlet pipe of condenser. Then lift the
4-way valve assy to remove it.
(NOTE: Discharge the refrigerant completely before
unsoldering.)
Remove the screw connecting the valve support and
the chassis, and then remove the valve support assy.
Unsolder the welding joint connecting the electronic
expansion valve assy with the cut-off valve and the
condenser connection pipe, and then remove the e
xpansion valve assy.
15. Remove middle isolation sheet
Remove the screws connecting the middle
isolation sheet with the chassis assy and the
condenser assy, and then remove the middle
isolation sheet.
valve support assy
expansion
valve assy
4-way valve
assy
middle isolation sheet
