This function indicates that moisture on evaporator of
indoor unit will be blowed after the unit is stopped to
avoid mould.
Having set X-FAN function on: After turning off the unit
by pressing ON/OFF button indoor fan will continue
running for a few minutes. at low speed. In this period,
Hold fan speed button for 2s to stop indoor fan directly.
Having set X-FAN function off: After turning off the unit
by pressing ON/OFF button, the complete unit will be
off directly.
This is a general use remote controller. It could be
used for the air conditioner with multifunction. For the
functions which the model doesn't have, if press the
corresponding button on the remote controller, the
unit will keep the original running status.
After putting through the power, the air conditioner
will give out a sound. Power indicator " " is ON.
After that, you can operate the air conditioner by
using remote controller.
Under on status, pressing the button on the remote
controller, the signal icon " " on the display of
remote controller will blink once and the air condition-
er will give out a
"
di
"
sound, which means the signal
has been sent to the air conditioner.
●
●
●
●
button
Swing
Mode
Sleep
button
Heat mode: Only for models with heating function.
button
●
Outdoor temperature display is not available for some
Turbo
button
Under cool or heat mode, press this button to turn

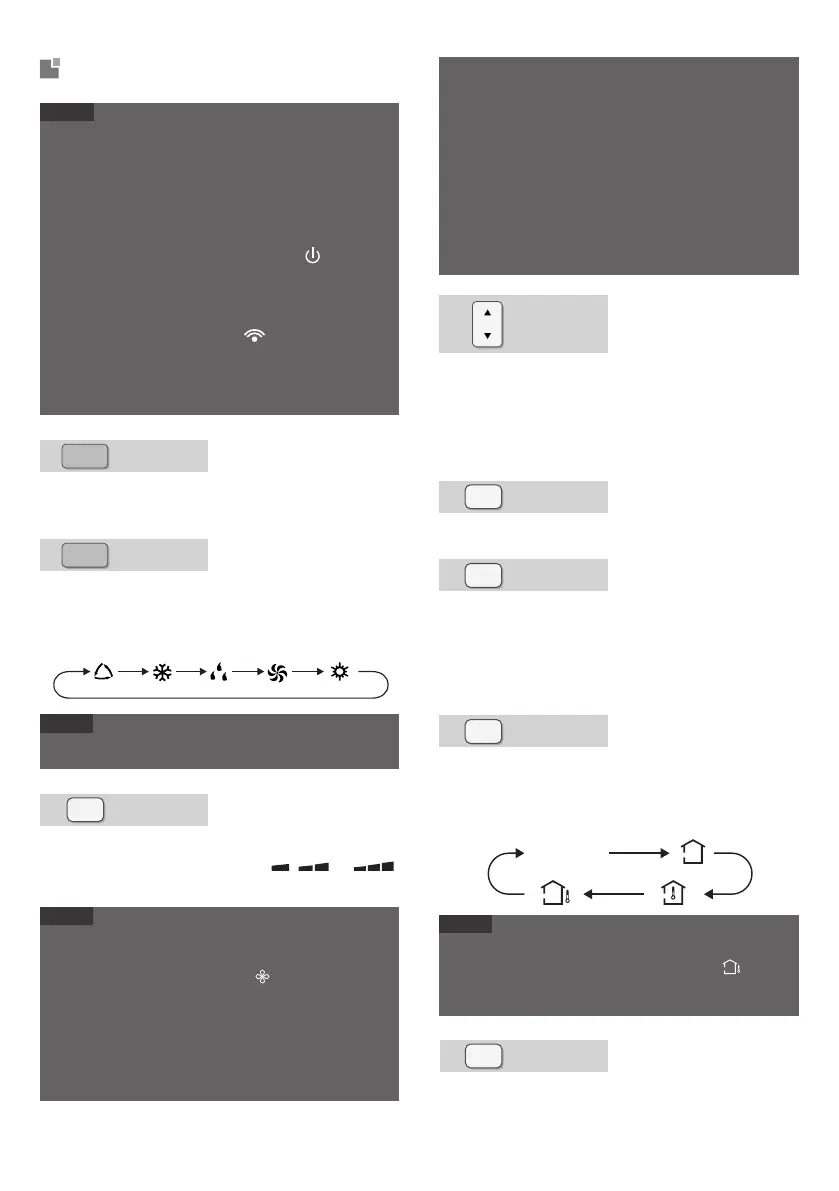

Introduction for buttons on
remote controller
button
Press ▲ / ▼ button to increase / decrease set tem-
perature. In AUTO mode, set temperature is not ad-
justable.
When setting Timer On or Timer Off, press "▲" or
"▼" button to adjust the time.
button
Press this button to set up & down swing angle.
button
Under Cool, Heat mode, press this button to turn
on Sleep function.
Press this button again to cancel Sleep function.
Under Fan, Dry and Auto modes, this function is
unavailable.
On/Off
Press this button to turn on the unit. Press this button
again to turn off the unit.
button
NOTE
●
Temp
Press this button, you can see indoor set tempera-
ture, indoor ambient temperature on indoor unit's
display. The setting on remote controller is selected
circularly as below:
no display
Fan
This button is used for setting Fan Speed in the
sequence that goes from AUTO, , , to ,
then back to Auto.
NOTE
●
NOTE
Fan speed under dry mode is low speed.
X-FAN function：Hold fan speed button for 2s in
COOL or DRY mode, the icon " " is displayed and
the indoor fan will continue operation for a few minutes
in order to dry the indoor unit even though you have
turned off the unit. After energization, X-FAN OFF is
defaulted. X-FAN is not available in AUTO, FAN or
HEAT mode.
NOTE
models. At that time, indoor unit receives " " signal,
while it displays indoor set temperature.
Each time you press this button, a mode is selected
in a sequence that goes from AUTO, COOL, DRY,
FAN, and HEAT, as the following:
AUTO COOL DRY FAN
HEAT
●
●
