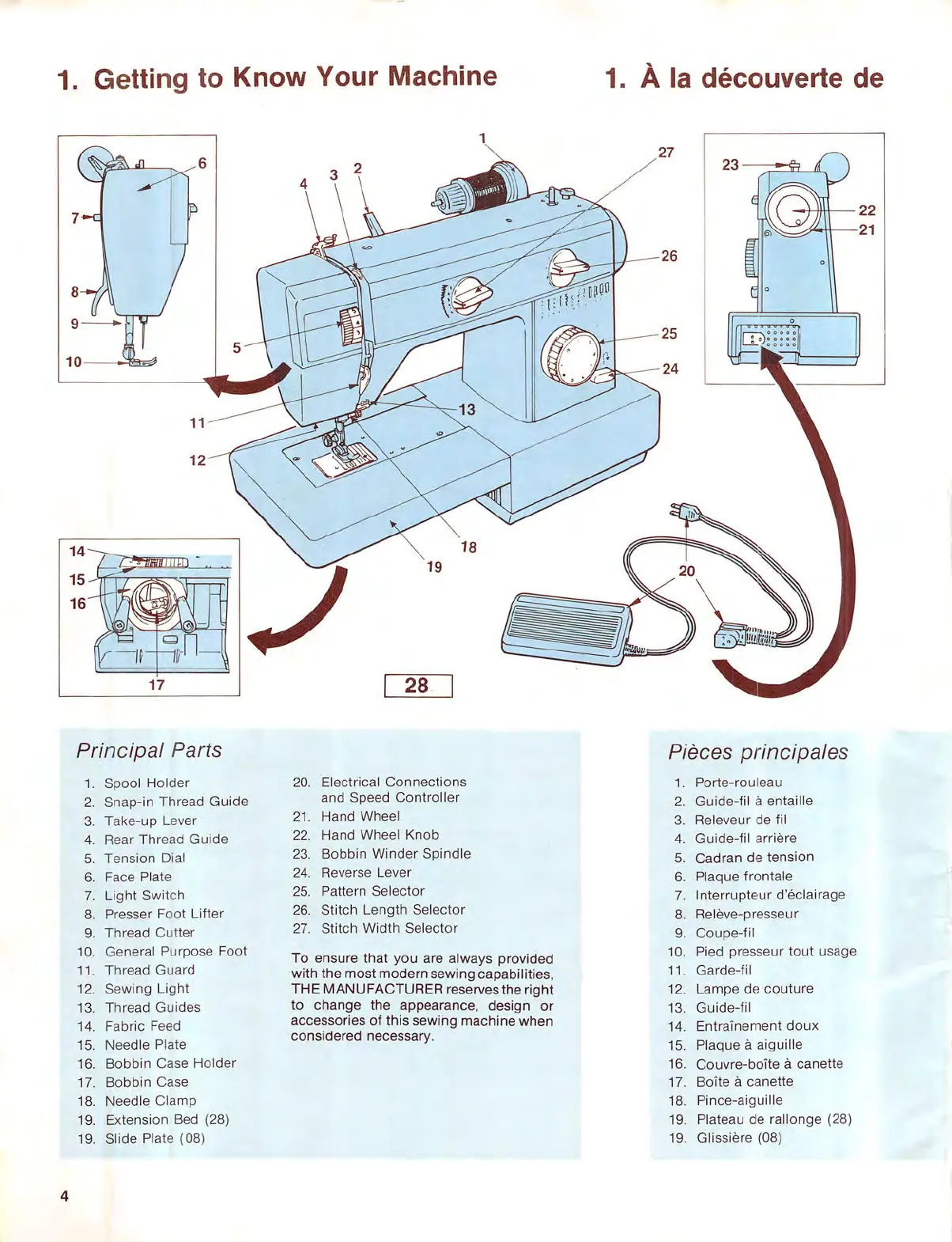

1. Getting to Know Your Machine
1s ---7rrr~~:t:;:::;:::::;:,.-
16
17
28
Principal Parts
1.
Spool Holder
20 .
Electrical
Connections
2.
Snap-in Thread Guide
and Speed Contro ller
3.
Take-up Lever
21 .
Hand
Wheel
4.
Rear
Thr ead Guide
22 .
Hand
Wheel Knob
5.
Tension
Dial
23.
Bobbin Winder
Spindle
6.
Face
Plate
24 .
Reverse Lever
7.
Light Switch
25 .
Pattern
Selector
8.
Presser F
oot Lifter
26 .
Stitch Length Selector
9.
Thread Cutter
27.
Stitch Width Selector
10.
General Purpose Foot
To ensure that you are always provided
11.
Thread Guard
with the most modern sewing
capabilities,
12.
Sewing Li ght
THE MANUFACTURER reserves the right
13.
Thread Guides
to change the appearance, design
or
14.
Fabric Feed
accessories
of this sewing machine when
15.
Needle Plate
considered necessary.
16.
Bobbin
Case Holder
17.
Bobbin
Case
18. Need l ~ Clamp
19.
Extension Bed (28)
19.
Slide Pl ate (08)
4
1. A Ia decouverte de
-1- -1+1+-- 22
~ ~-tt-- -21
Pieces principales
1.
Porte-rouleau
2.
Guide-til a entai ll e
3.
Releveur de fi l
4.
Guide-til arriere
5.
Cadran de tension
6.
Plaque fr ontale
7.
lnterrupt eu r d'eclairage
8.
Releve-presseur
9.
Coupe-til
10 .
Pied presseur tout usage
11.
Garde-fil
12 .
Lampe de
couture
13.
Guide-til
14.
Entralnement dou x
15 .
Plaque a aiguille
16.
Couvre-bolte a canette
17.
Bolte a canette
18.
Pince-aiguille
19 .
Plateau de rallonge (28)
19 .
Glissiere (08)
