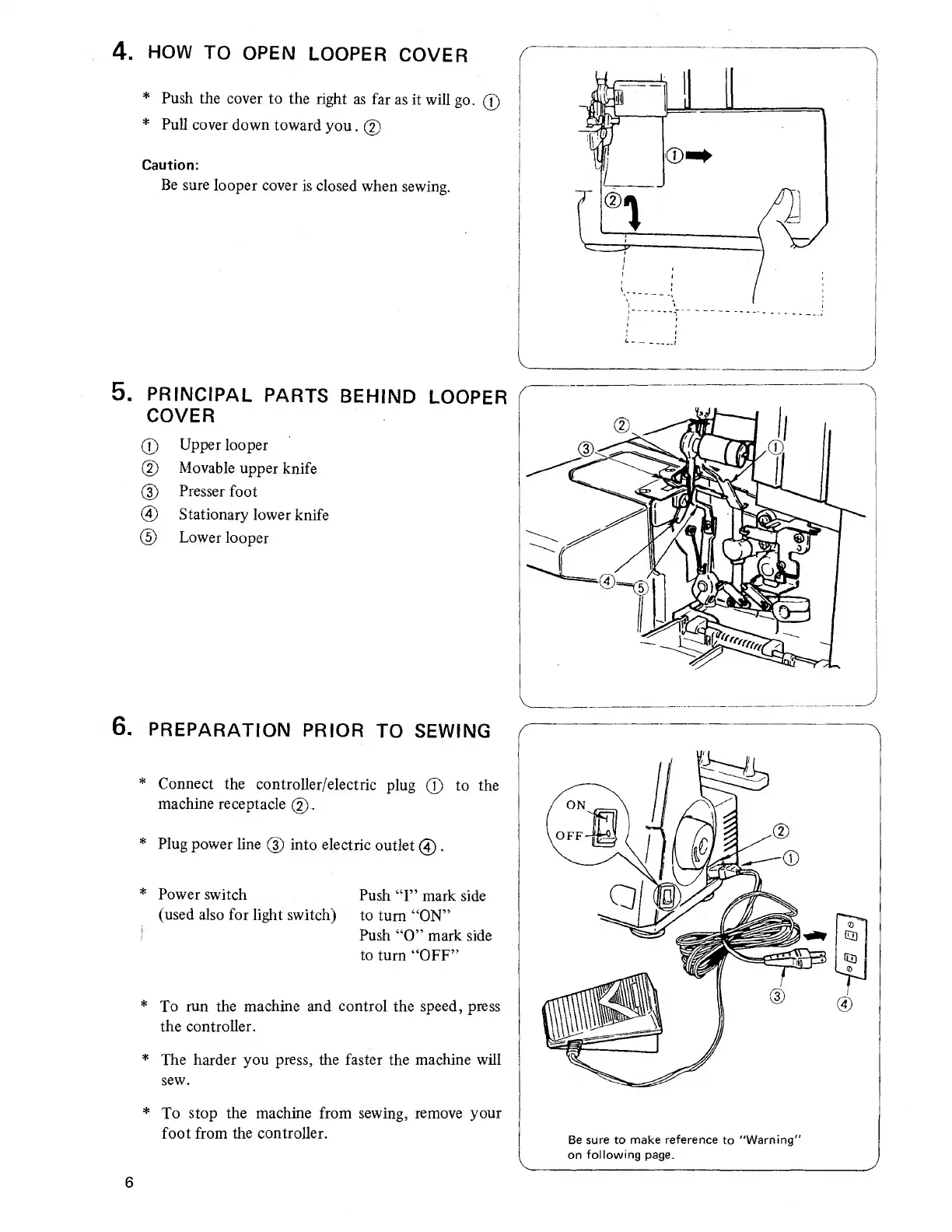

4. HOW TO OPEN LOOPER COVER
* Push the cover to the right as far as it will go. (T)
* Pull cover down toward you. ( 2 )
Caution:
Be sure looper cover is closed when sewing.
5. PRINCIPAL PARTS BEHIND LOOPER
COVER
0 Upper looper
@ Movable upper knife
0 Presser foot
0 Stationary lower knife
0 Lower looper
6. PREPARATION PRIOR TO SEWING
* Connect the controller/electric plug 0 to the
machine receptacle 0 .
* Plug power line @ into electric outlet 0 .
* Power switch Push “I” mark side
(used also for light switch) to turn “ON”
I Push “0” mark side
to turn “OFF”
* To run the machine and control the speed, press
the controller.
* The harder you press, the faster the machine will
sew.
* To stop the machine from sewing, remove your
foot from the controller.
6
Be sure to make reference to "Warning"
on following page.
