Singer 191D-20 - Lubrication; Thread Take-up Lever Oil Supply Adjustment

3.4

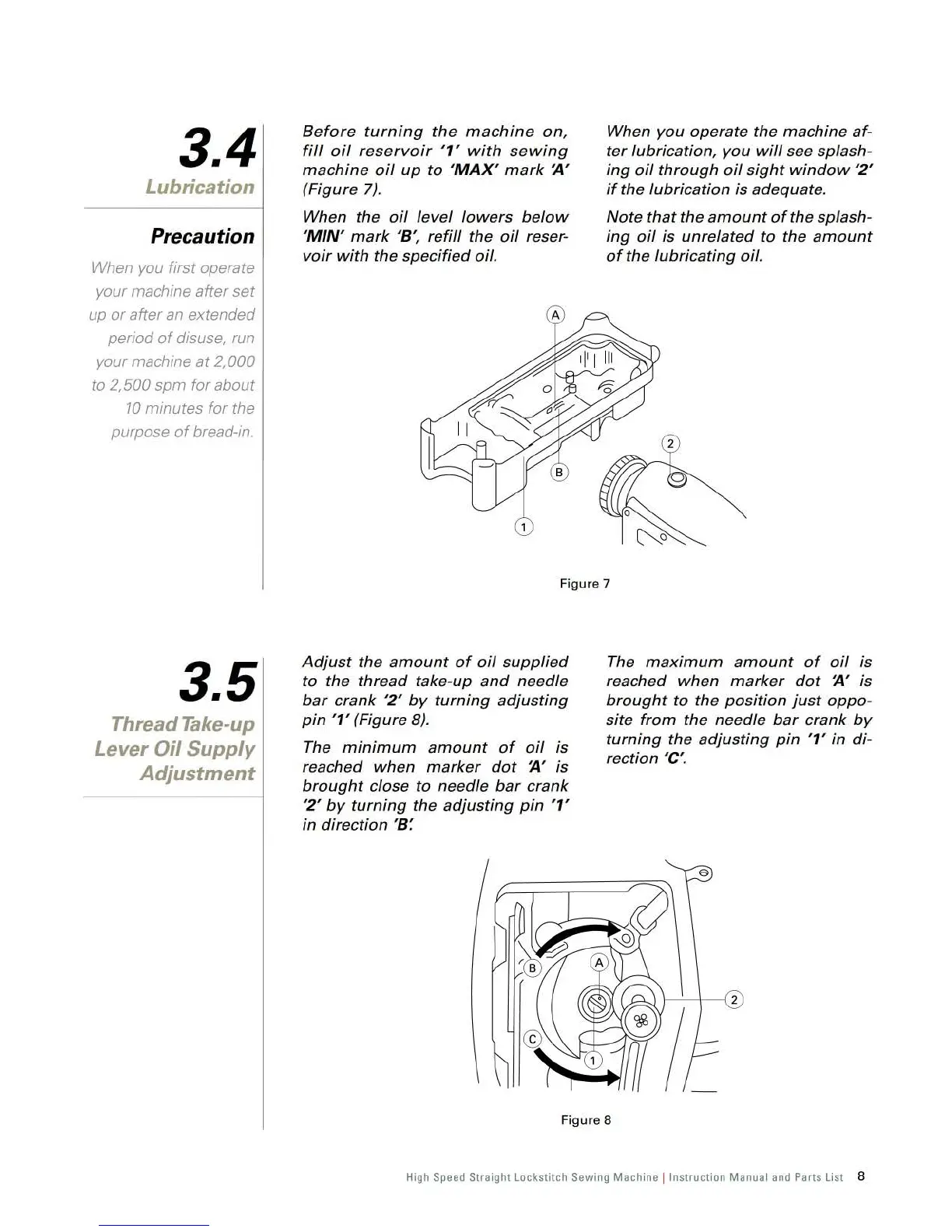

Lubrication
Precaution
When you first operate
your machine after
set
up or after an extended
period
of disuse, run
your machine at 2, 000
to 2, 500 spm for about
10 minutes for the
purpose
of bread-in.
3.5
Thread Take-up
Lever
Oil Supply
Adjustment
Before turning the machine on,
fill oil reservoir '1' with sewing
machine oil up to ' MA X' mark ~~
(Figure 7).
When the oil level lowers below
' MIN ' mark '8 ', refill the oil reser-
voir with the specified oil.
When
you operate the machine af-
ter lubrication, you will see splash-
ing oil through oil sight window '2'
if the lubrication is adequate.
Note that the amount of the splash-
ing oil is unrelated to the amount
of the lubricating oil.
Figure 7
Adjust the amount of oil supplied
to the thread take-up and needle
bar crank '2' by turning adjusting
pin '1' (Figure B).
The minimum amount of oil is
reached
when marker dot ~' is
brought close to needle bar crank
'2' by turning the adjusting pin '1'
in direction '8 :
The maximum amount of oil is
reached
when marker dot ~~ is
brought to the position just oppo-
site from the needle bar crank by
turning the adjusting pin '1' in di-
rection 'C '.
Figure 8
High Speed Straight L oc k stitch Sewing Machine ! Instruct ion M an ual an d Pa rt s List 8
