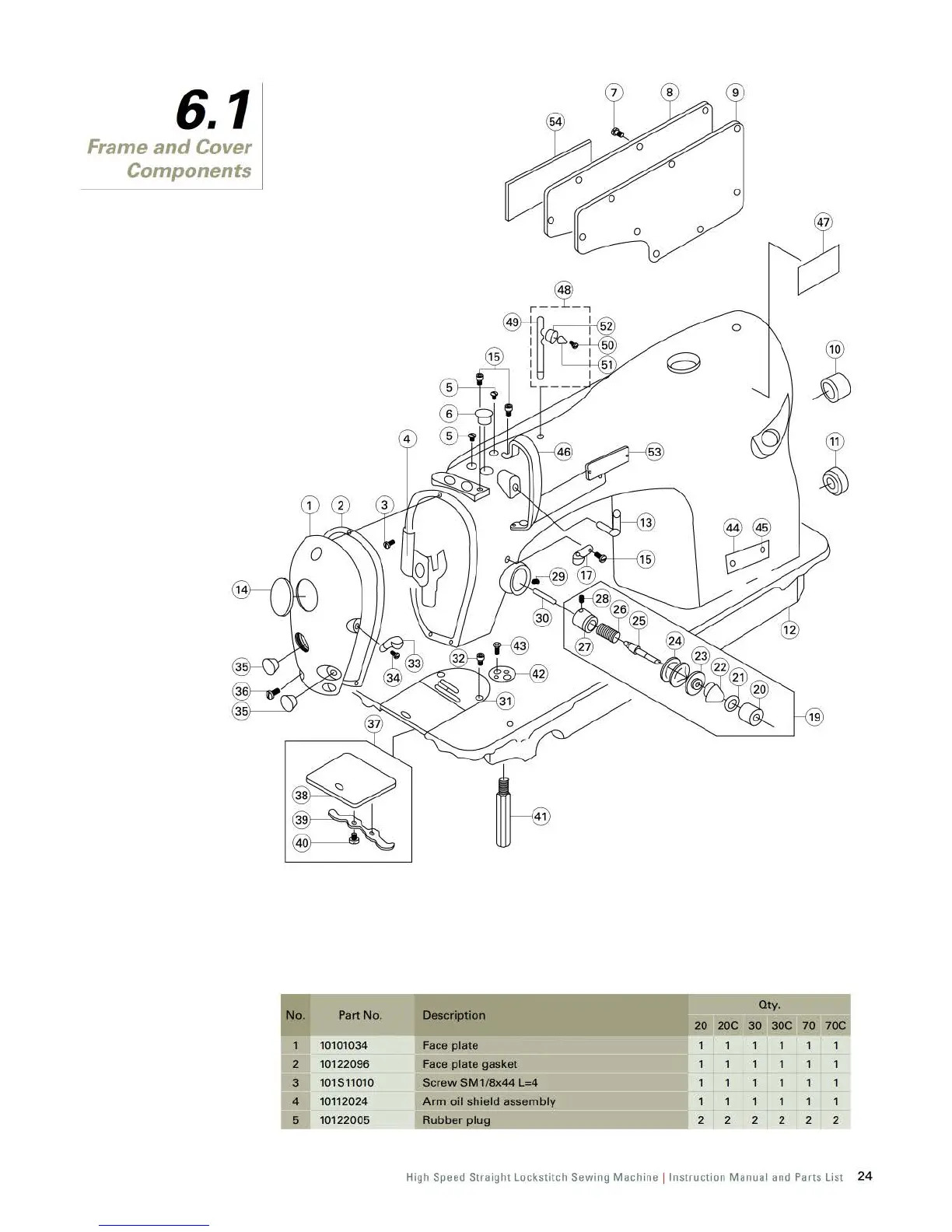

Singer 191D-20 - Frame and Cover Components

6.1
Frame and Cover
Components
No .
2
3
4
5
Part
No .
10101034
10122096
101511010
10112024
10122005
Description
Oty .
20
20C 30 30C 70 70C
Face plate
Face plate gasket
Screw SM1/8x44 L=4
Arm oil shield assembly
1 1 1 1 1 1
Rubber
plug 2 2 2 2 2 2
High Speed Straight Lockstitch Sewing Machine ! Instruction Manual and Parts List 24
From the library of: Superior Sewing Machine & Supply LLC
