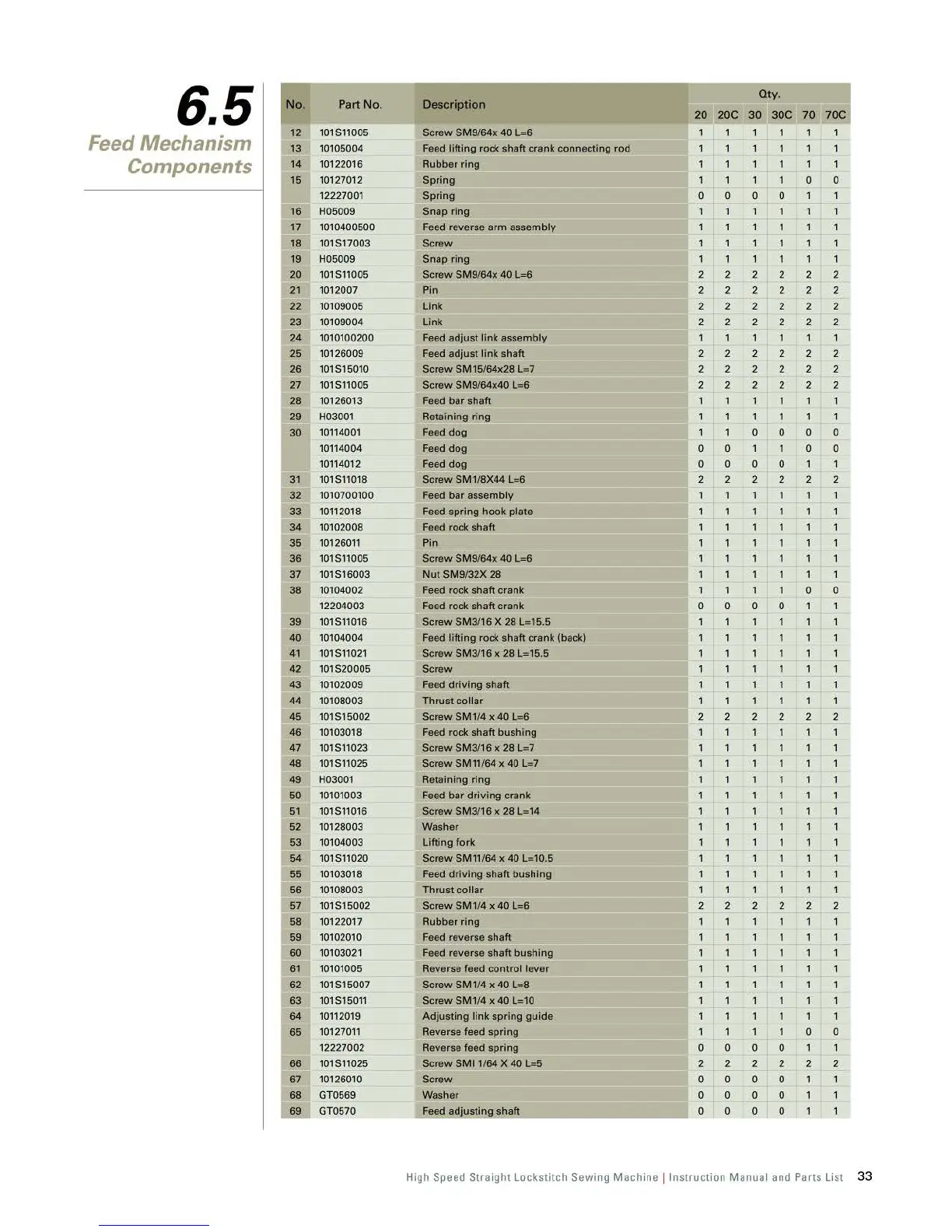

Singer 191D-20 - Page 36

6.5
No.
Part No.
Description
Oty.
20 20C 30 30C
70
70C
Feed Mechanism
12 101S11005 Screw SM9/64x 40 L=6
13 10105004 Feed lifting rock shaft crank connecting rod
Components
14 10122016 Rubber ring
15
10127012
Spring 1
1
1 1 0 0
12227001
Spring 0 0 0 0
16 H05009 Snap ring
17
1010400500
Feed reverse arm assembly
18 101S17003 Screw 1
19
H05009 Snap ring 1 1 1 1 1 1
20
101S11005 Screw SM9164x 40 L=6
2 2 2 2 2 2
21 1012007 Pin
2 2 2 2 2 2
22 10109005 Link 2 2 2 2 2 2
23
10109004
Link 2 2 2 2 2 2
24 1010100200 Feed adjust link assembly 1 1 1 1 1 1
25 10126009 Feed adjust link shaft 2 2 2 2 2 2
26 101S15010 Screw SM15/64x28 L=7 2 2 2 2 2 2
27 101S11005 Screw SM9/64x40 L=6
2
2
2
2 2
2
28
10126013 Feed bar shaft 1 1
29
H03001 Retaining ring 1 1 1 1
30
10114001 Feed dog 1 1
0 0 0 0
10114004
Feed dog 0 0 1 1 0 0
10114012
Feed dog 0 0 0 0 1 1
31
101S11018
Screw SM118X44 L=6 2 2 2 2 2 2
32
1010700100
Feed bar assembly
33
10112018 Feed spring hook plate
34
10102008 Feed rock shaft
35
10126011 Pin
36
101S11005 Screw SM9164x 40 L=6
37
101S16003
Nut SM9132X 28
1
1 1
38 10104002 Feed rock shaft crank 1 1 1 1 0 0
12204003
Feed rock shaft crank 0 0 0 0
39
101S11016
Screw SM3116 X 28 L=15.5
40
10104004 Feed l ifting rock shaft crank (back)
41 101S11021 Screw SM3116 x 28 L=15.5
42 101S20005 Screw
43
10102009 Fe ed driving shaft
44 10108003 Thrust collar 1 1 1 1 1 1
45
101S15002
Screw SM1/4 x 40 L=6 2 2 2 2 2 2
46 10103018 Feed rock shaft bushing
47
101S11023
Screw SM3116 x 28 l=7
48
101S 11 025
Screw SM11/64 x 40 L=7
49
H03001 Retaining ring
50
10101003 Feed bar driving crank
51 101S11016 Screw SM3116 x 28 L=14
52
10128003 Washer
53
10104003 Lifting fork
54
101S11020
Screw SM11/64 x 40 L=10.5
55 10103018 Feed dr i ving shaft bushing
56 10108003 Thrust collar 1 1 1 1 1 1
57
101S15002
Screw SM1/4 x 40 l=6 2 2 2 2 2 2
58
10122017 Rubber ring
59
10102010 Feed reverse shaft
60
10103021 Feed reverse shaft bushing
61 10101005 Reverse feed control lever
62 101S15007 Screw SM1/4 x 40 l=8
63
101S15011
Screw SM1/4 x 40 L=10
64
10112019
Adjusting link spr i ng guide 1 1
65
10127011
Reverse feed spring 1 1 1 0 0
12227002
Reverse feed spring
0 0 0 0
1 1
66
101S11025 Screw SMI1/64 X 40 L=5
2 2 2 2 2 2
67 10126010 Screw
0 0 0 0
68
GT0569 Washer
0 0 0 0
69 GT0570 Feed adjusting shaft 0 0 0 0
High Speed Straight Lock stitch Sewing Machine ! Instruct ion M an ual an d Pa rts List 33
From the library of: Superior Sewing Machine & Supply LLC
