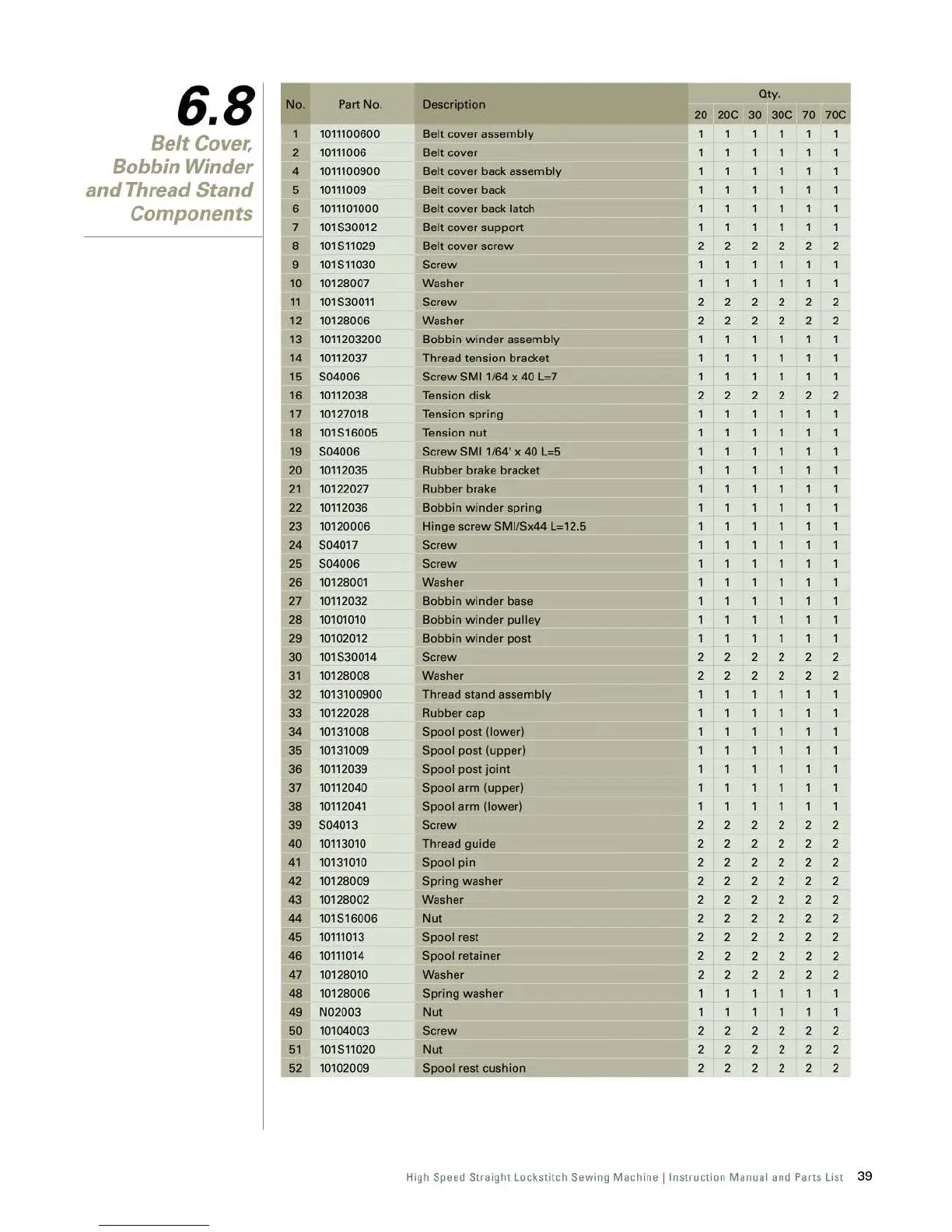

Singer 191D-20 - Page 42

6.8
No .
Part
No .
Description
Oty .
20 20C 30 30C
70
70C
Belt Cover,
1011100600 Belt cover assembly
2
10111006
Belt cover
Bobbin Winder
4 1011100900 Belt cover back assembly
and Thread Stand
5
10111009
Belt cover back
Components
6 1011101000 Belt cover back latch
7
101 S30012
Belt
cover support 1
1 1
1 1 1
8
101 S11029 Belt cover screw 2 2 2 2 2 2
9
101S11030
Screw
1 1
10 10128007 Washer 1 1
1
1 1 1
11
101 S30011
Screw 2 2 2 2 2 2
12
10128006 Washer 2 2 2 2 2 2
13
1011203200
Bobbin winder assembly
14 10112037 Thread tension bracket
15
S04006 Screw SMI1164 x 40 L=7
1
16
10112038 Tension disk 2 2 2 2 2 2
17
10127018 Tension spring
18 101S16005 Tension nut
19 S04006 Screw SM I 1164 ' x 40 L=5
20 10112035 Rubber brake bracket
21 10122027 Rubber brake
22
10112036 Bobbin winder spring
23 10120006 Hinge screw SMI/Sx44 L=12.5
24
S04017 Screw
25
S04006 Screw
26
10128001 Washer
27
10112032
Bobbin winder base
28
10101010 Bobbin winder pulley
29
10102012
Bobbin winder post
1
30
101S30014
Screw 2 2 2 2 2 2
31
10128008
Washer 2 2 2 2 2 2
32
1013100900 Thread stand assembly
33
10122028
Rubber cap
34
10131008
Spool
post (lower)
35 10131009 Spool post (upper)
36
10112039 Spool post joint
37 10112040 Spool arm (upper)
38
10112041
Spool arm (lower)
1 1 1 1 1 1
39
S04013 Screw 2 2 2 2 2 2
40 10113010 Thread gu ide 2 2 2 2 2 2
41
10131010
Spool pin 2 2 2 2 2 2
42
10128009 Spring washer 2 2 2 2 2 2
43 10128002 Washer 2 2 2 2 2 2
44
101S16006
Nut 2 2 2 2 2 2
45
10111013
Spool rest 2 2 2 2 2 2
46
10111014
Spool retainer 2 2 2 2 2 2
47
10128010 Washer 2 2 2 2 2 2
48
10128006 Spring washer
49 N02003 Nut 1 1 1 1 1 1
50
10104003
Screw 2
2
2 2 2 2
51 101 S11020 Nut 2 2 2 2 2 2
52
10102009 Spool rest cushion 2 2 2 2 2 2
