OIL-REMOVING WICK
ASSEMBLY
(continued)
REPLACEMENT-

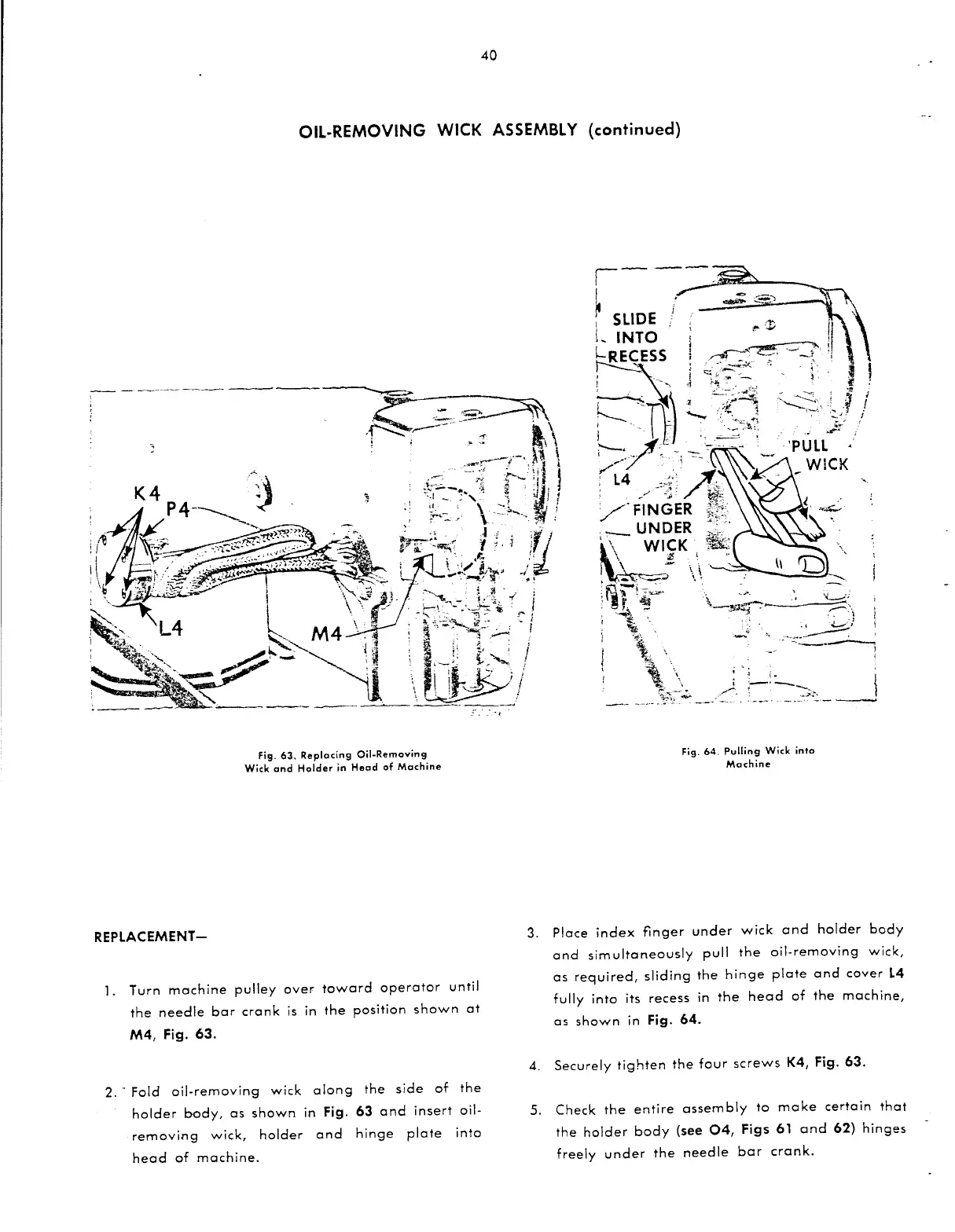

Fig.
63.
Replacing
Oil-Removing
Wick
and
Holder
in
Head
of
Machine
l.
Turn
machine
pulley
over
toward
operator
until
the
needle
bar
crank
is
in
the
position
shown
at
M4,
Fig. 63.
2. · Fold
oil-removing
wick
along
the
side
of
the
holder
body,
as
shown
in
Fig. 63
and
insert
oil-
removing
wick,
holder
and
hinge
plate
into
head
of
machine.
Fig.
64.
Pulling
Wick
into
Machine
3.
Place
index
finger
under
wick
and
holder
body
and
simultaneously
pull
the
oil-removing
wick,
as
required,
sliding
the
hinge
plate
and
cover
L4
fully
into
its
recess
in
the
head
of
the
machine,
as
shown
in
Fig.
64.
4.
Securely
tighten
the
four
screws
K4,
Fig. 63.
5.
Check
the
entire
assembly
to
make
certain
that
the
holder
body
(see
04,
Figs
61
and
62)
hinges
freely
under
the
needle
bar
crank.
