OIL-REMOVING WICK ASSEMBLY (continued)

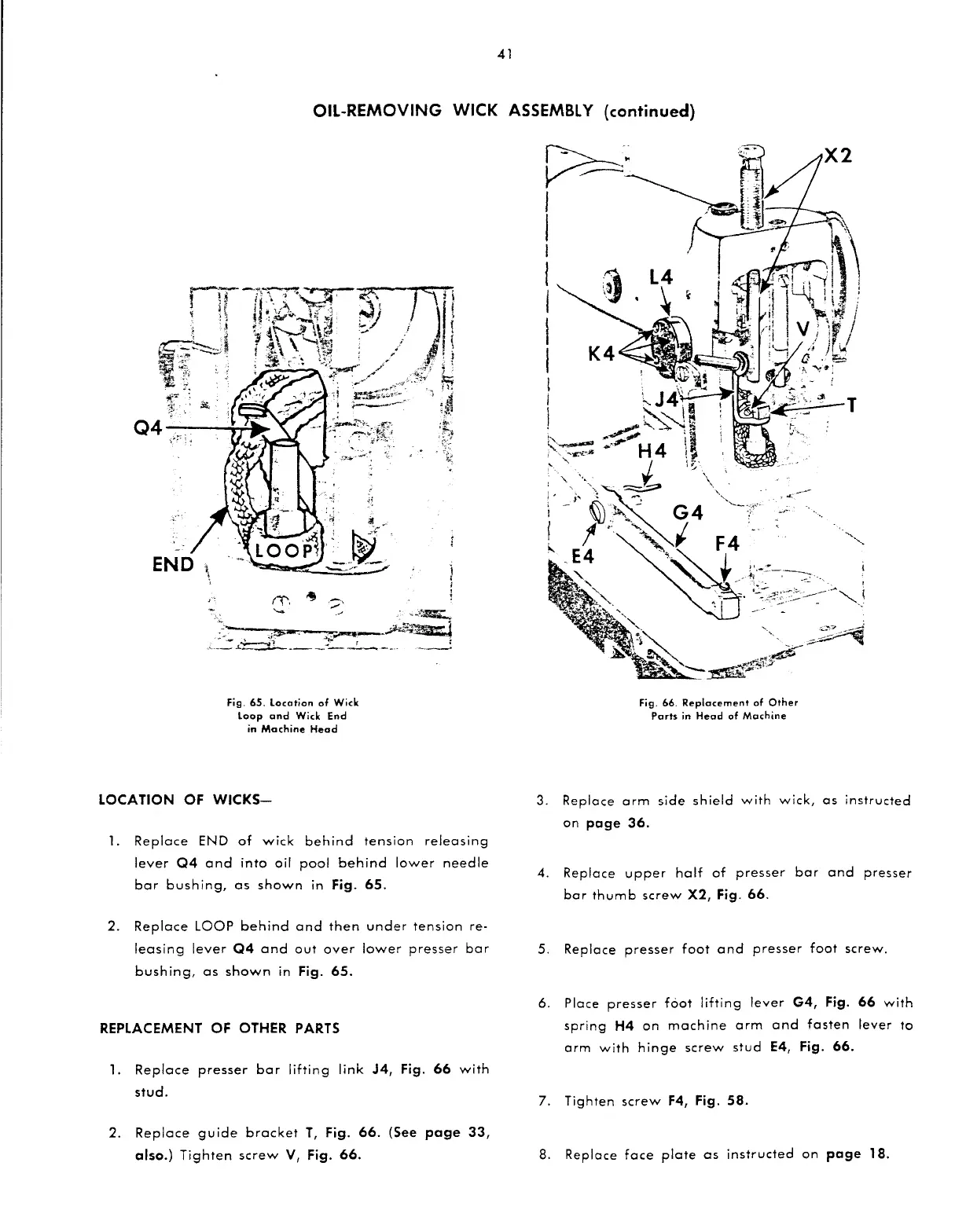

Fig. 6S. location of Wick
loop and Wick End
in Machine Head
LOCATION OF WICKS-
1. Replace END of wick behind tension releasing
lever 04 and into oil pool behind lower needle
bar bushing, as shown in Fig. 65.
2. Replace LOOP behind and then under tension re-
leasing lever 04 and out over lower presser bar
bushing, as shown in Fig. 65.
Fig. 66. Replacement of Other
Parts in Head of Machine
3. Replace arm side shield with wick, as instructed
on page 36.
4. Replace upper half of presser bar and presser
bar thumb screw X2, Fig. 66.
5. Replace presser foot and presser foot screw.
6. Place presser foot lifting lever G4, Fig. 66 with
REPLACEMENT OF OTHER PARTS spring H4 on machine arm and fasten lever to
arm with hinge screw stud E4, Fig. 66.
1. Replace presser bar lifting link J4, Fig. 66 with
stud.
2. Replace guide bracket T, Fig. 66. (See page 33,
also.) Tighten screw V, Fig. 66.
7. Tighten screw F4, Fig. 58.
8. Replace face plate as instructed on page 18.
