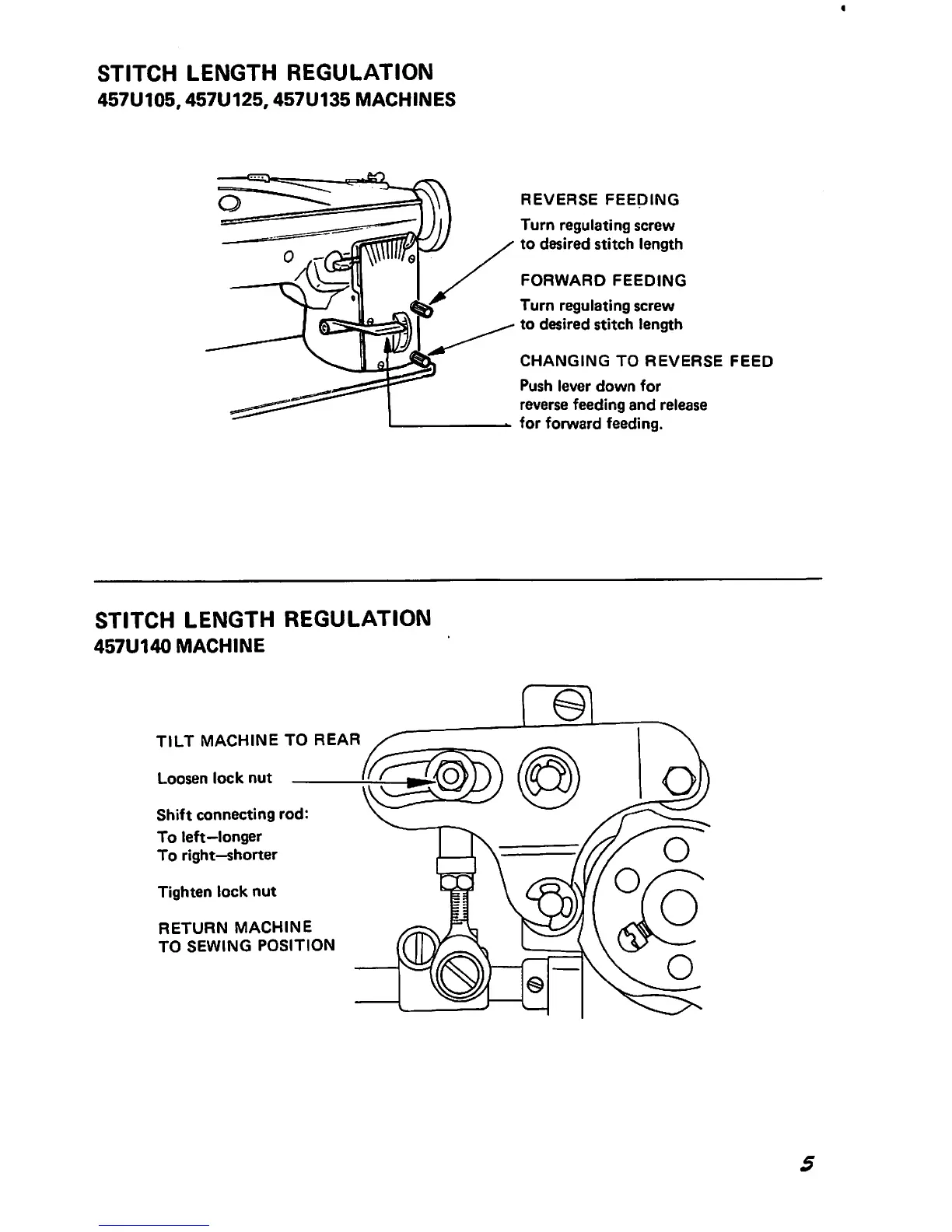

STITCH LENGTH REGULATION
457U105,457U125,457U135 MACHINES
STITCH LENGTH REGULATION
457U140 MACHINE
TILT MACHINE TO REAR
Loosen lock nut
Shift connecting rod:
To left—longer
To right—shorter
Tighten lock nut
RETURN MACHINE
TO SEWING POSITION
REVERSE FEEDING
Turn regulating screw
to desired stitch length
FORWARD FEEDING
Turn regulating screw
to desired stitch length
CHANGING TO REVERSE FEED
Push lever down for
reverse feeding and release
for forward feeding.
