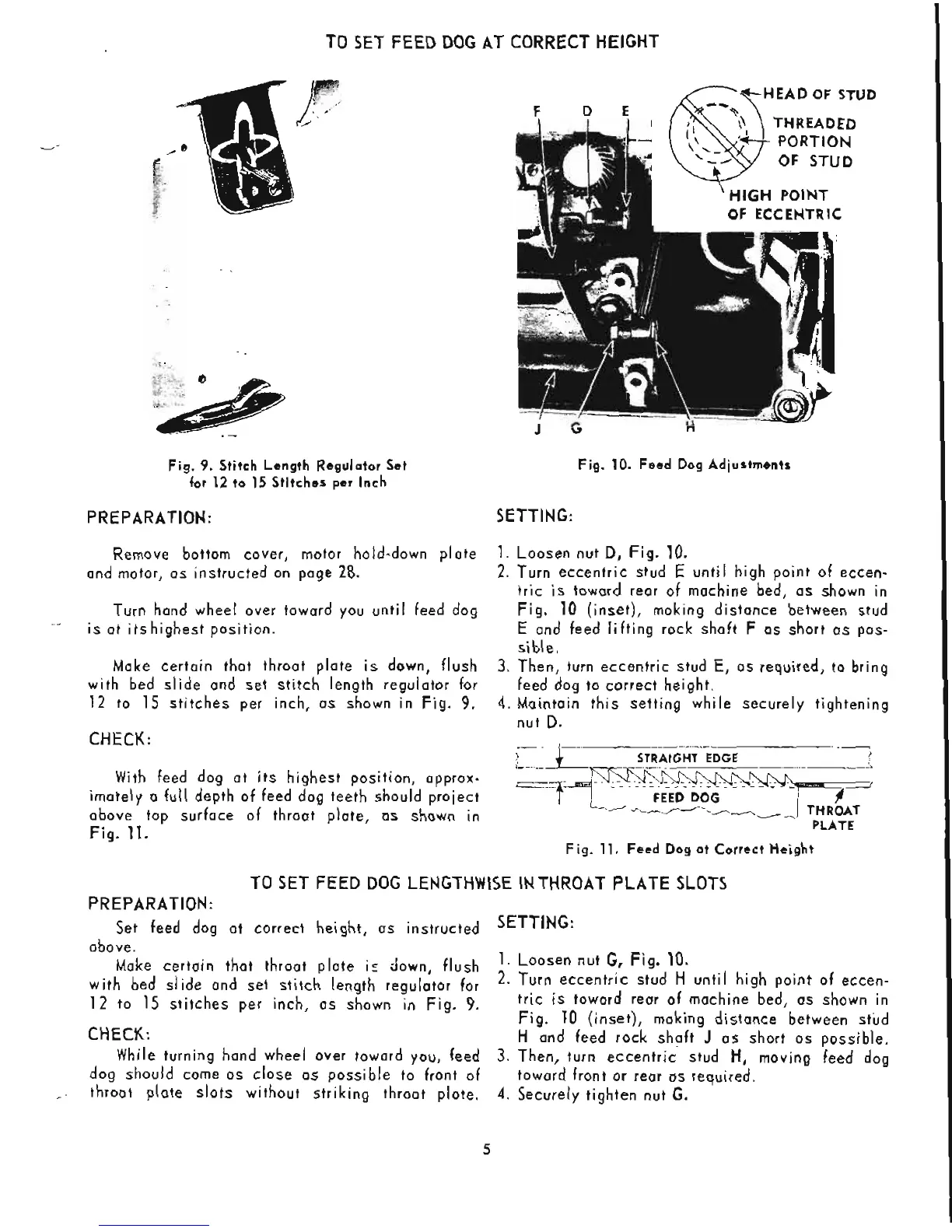

Singer 503 - To Set Feed Dog at Correct Height; To Set Feed Dog Lengthwise in Throat Plate Slots; Stitch Length Regulator Set for 12 to 15 Stitches Per Inch; Feed Dog Adjustments
