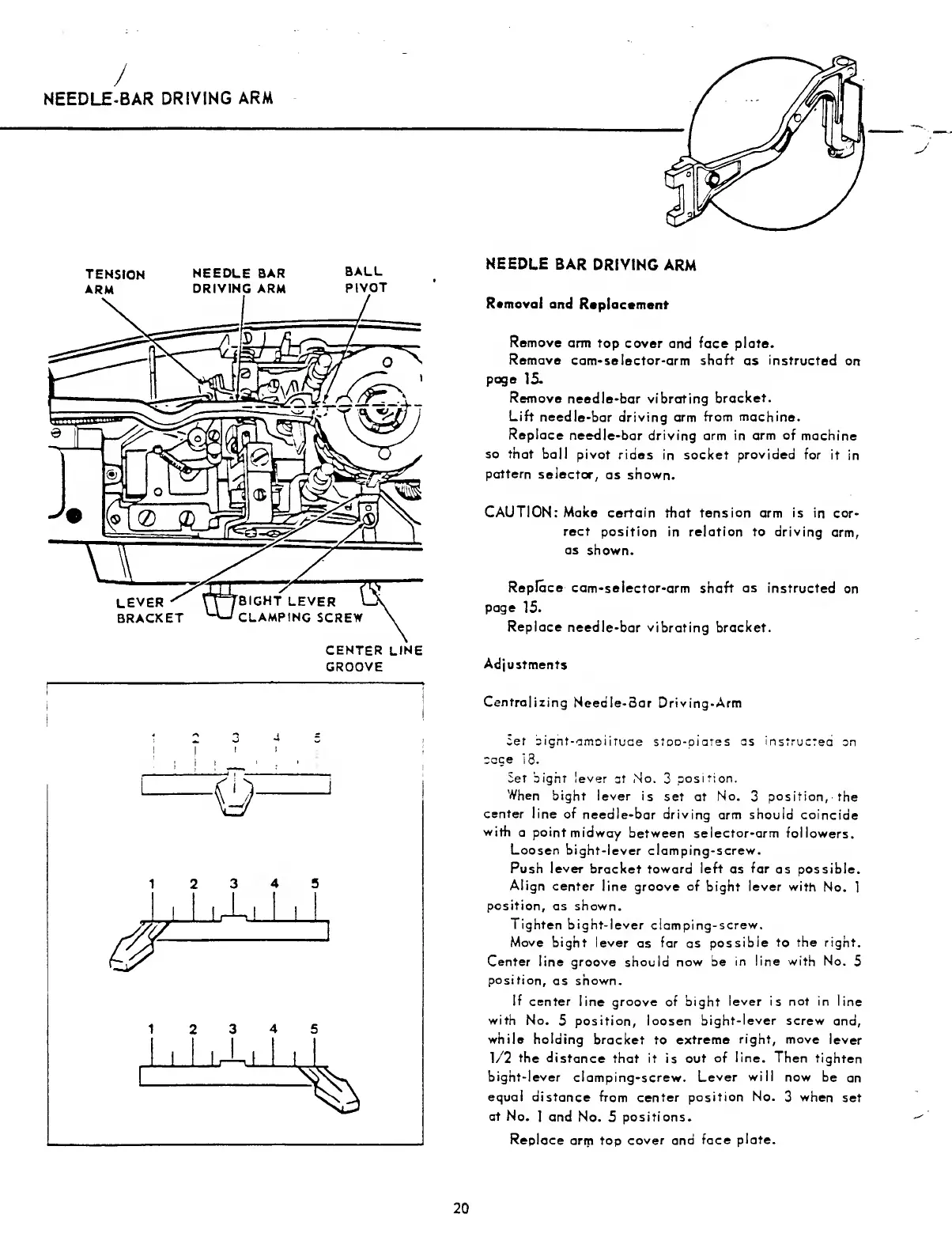

NEEDLE-BAR
DRIVING
ARM
TENSION
NEEDLE
BAR
BALL
ARM
DRIVING
ARM
PIVOT
CENTER
LINE
GROOVE
NEEDLE
BAR
DRIVING
ARM
Removal
and
Replacement
Remove
arm
top
cover
and
face
plate.
Remove
cam-selector-arm
shaft
as
instructed
on
page
15.
Remove
needle-bar
vibrating
bracket.
Lift
needle-bar
driving
arm
from
machine.
Replace
needle-bar
driving
arm
in
arm
of
machine
so
that
ball
pivot
rides
in
socket
provided
for
it
in
pattern
selector,
as
shown.
CAUTION;
Make
certain
that
tension
arm
is
in
cor¬
rect
position
in
relation
to
driving
arm,
as
shown.
Replace
cam-selector-arm
shaft
as
instructed
on
page
15.
Replace
needle-bar
vibrating
bracket.
Adjustments
Centralizing
Needle-3ar
Driving-Arm
Get
oignt-amDiiruae
stOD-piares
as
instrucrea
an
cage
18
.
Get
bight
lever
at
No.
3
position.
When
bight
lever
is
set
at
No.
3
position,
the
center
line
of
needle-bar
driving
arm
should
coincide
with
a
point
midway
between
selector-arm
followers.
Loosen
bight-lever
clamping-screw.
Push
lever
bracket
toward
left
as
far
as
possible.
Align
center
line
groove
of
bight
lever
with
No.
1
position,
as
shown.
Tighten
bight-lever
clamping-screw.
Move
bight
lever
as
far
as
possible
to
the
right.
Center
line
groove
should
now
be
in
line
with
No.
5
position,
as
shown.
If
center
line
groove
of
bight
lever
is
not
in
line
with
No.
5
position,
loosen
bight-lever
screw
and,
while
holding
bracket
to
extreme
right,
move
lever
1/2
the
distance
that
it
is
out
of
line.
Then
tighten
bight-lever
clamping-screw.
Lever
will
now
be
an
equal
distance
from
center
position
No.
3
when
set
at
No.
1
and
No.
5
positions.
Replace
arm
top
cover
and
face
plate.
20
