Service Manual
COSMO-7/8
series
Model

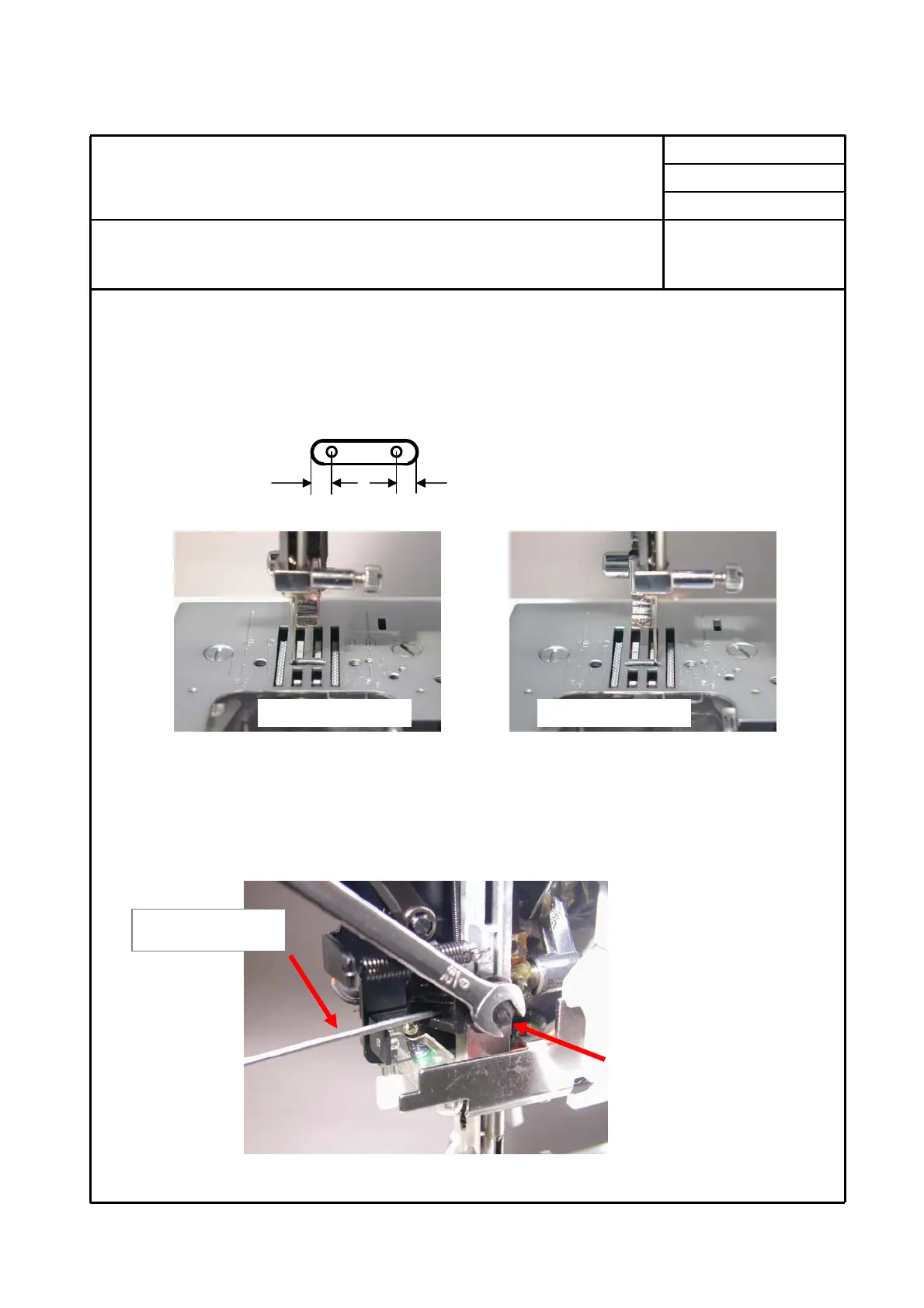

6. Needle position at zigzag stitching
Checking:
1. Select widest zigzag stitch.
2. Turn hand wheel by hand and see if needle leaves the same clearance at both right
and left end of needle plate hole.
Adjustment:
1. Loosen screw by hex screw driver and adjust needle position by turning eccentric
pin (A) using 7mm wrench.
b
a
a＝b
A
Hex screw driver
At left position At right position
