Either needle can be set closer to or farther from the other
(see Figs. 16 and 17) by loosening nuts (OO) and adjusting
hinge screws (R).
Great care must be taken when making any change of time,
not to make the change too great or carelessly. See that all of
the screws are tightened firmly before starting the machine.
NEEDLE BAR
To Set the Needle Bar. Two lines inch apart are marked
across the bar about IJ inch from its lower end; when the needle
bar is at its lowest position set it so that the highest mark is
even with the underside of the needle bar bushing.
To Set a Needle Bar Which Has no Mark. Set the needle
bar so that when it rises inch from its lowest position, the
point of the hook will be at the center of the needle and about
iV inch above the eye; by looking across the top of the bobbin
case down to the eye, the full length of the eye should be seen
below and close up to the point of the hook.
O

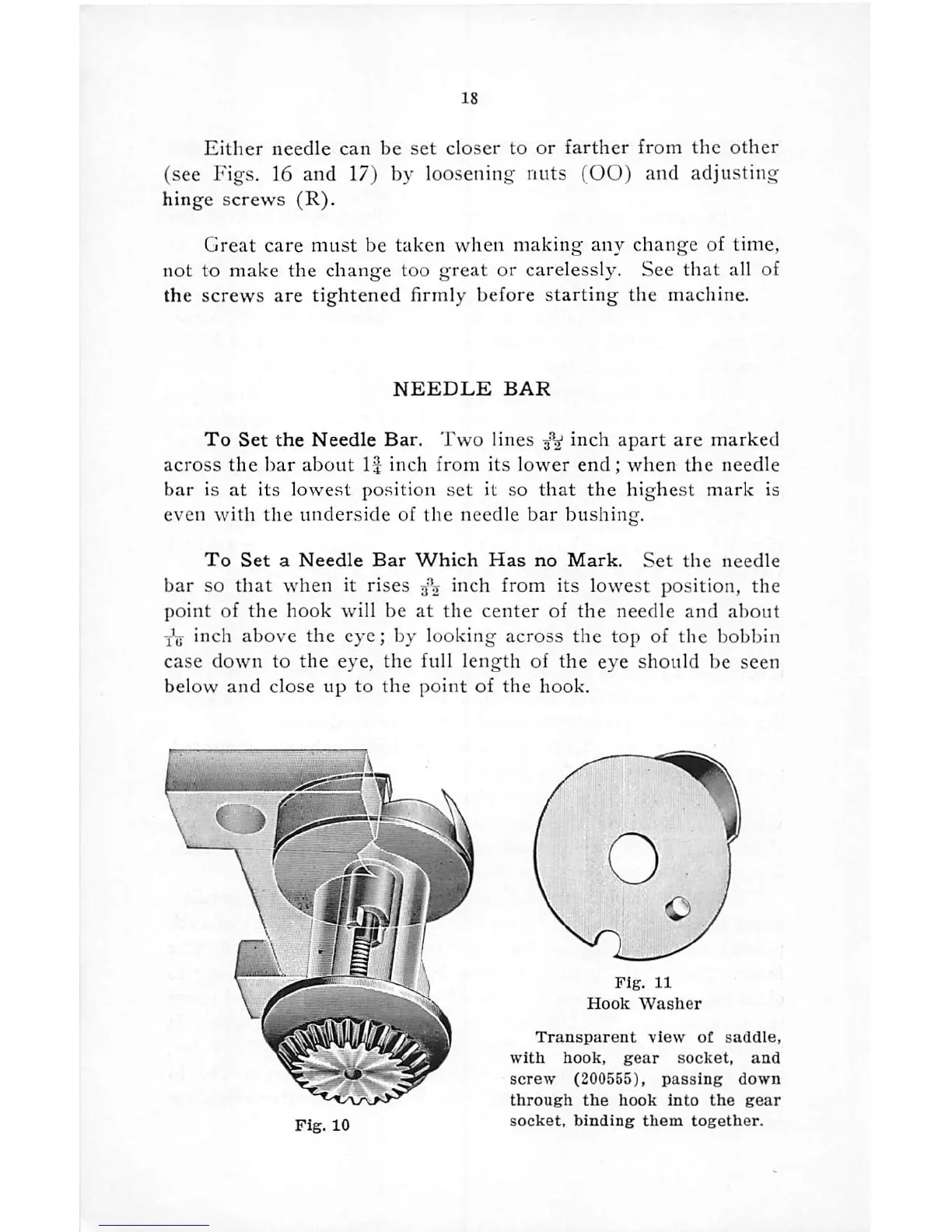

Fig. 11
Hook Washer
Transparent view of saddle,
with hook, gear socket, and
screw (200555), passing down
through the hook into the gear
socket, binding them together.
