Singer 72W19 - Attaching the Picot Edge Cutting Attachment; Attachment Preparation and Installation; Initial Machine Setup for Attachment

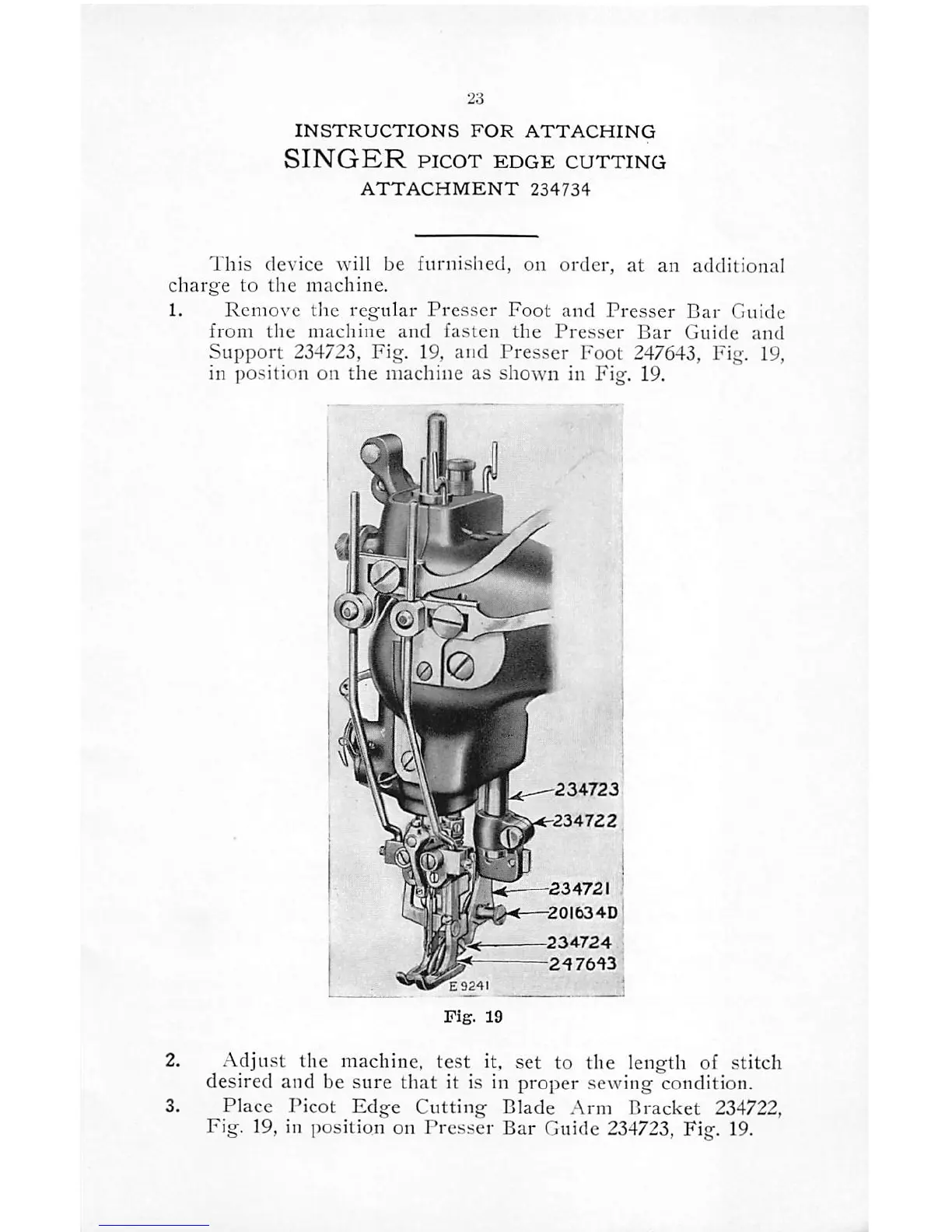

INSTRUCTIONS FOR ATTACHING
SINGER PICOT EDGE CUTTING
ATTACHMENT 234734
This device will be furnished, on order, at an additional
charge to the machine.
1. Remove the regular Presser Foot and Presser Bar Guide
from the machine and fasten the Presser Bar Guide and
Support 234723, Fig. 19, and Presser Foot 247643, Fig. 19,
in position on the machine as shown in Fig. 19.
llofe
-234723
-234722
20I634D
Fig. 19
2. Adjust the machine, test it. set to the length of stitch
desired and be sure that it is in proper sewing condition.
3. Place Picot Edge Cutting Blade .-\rm Bracket 234722,
Fig. 19, in position on Presser Bar Guide 234723, Fig. 19.
