-3 -


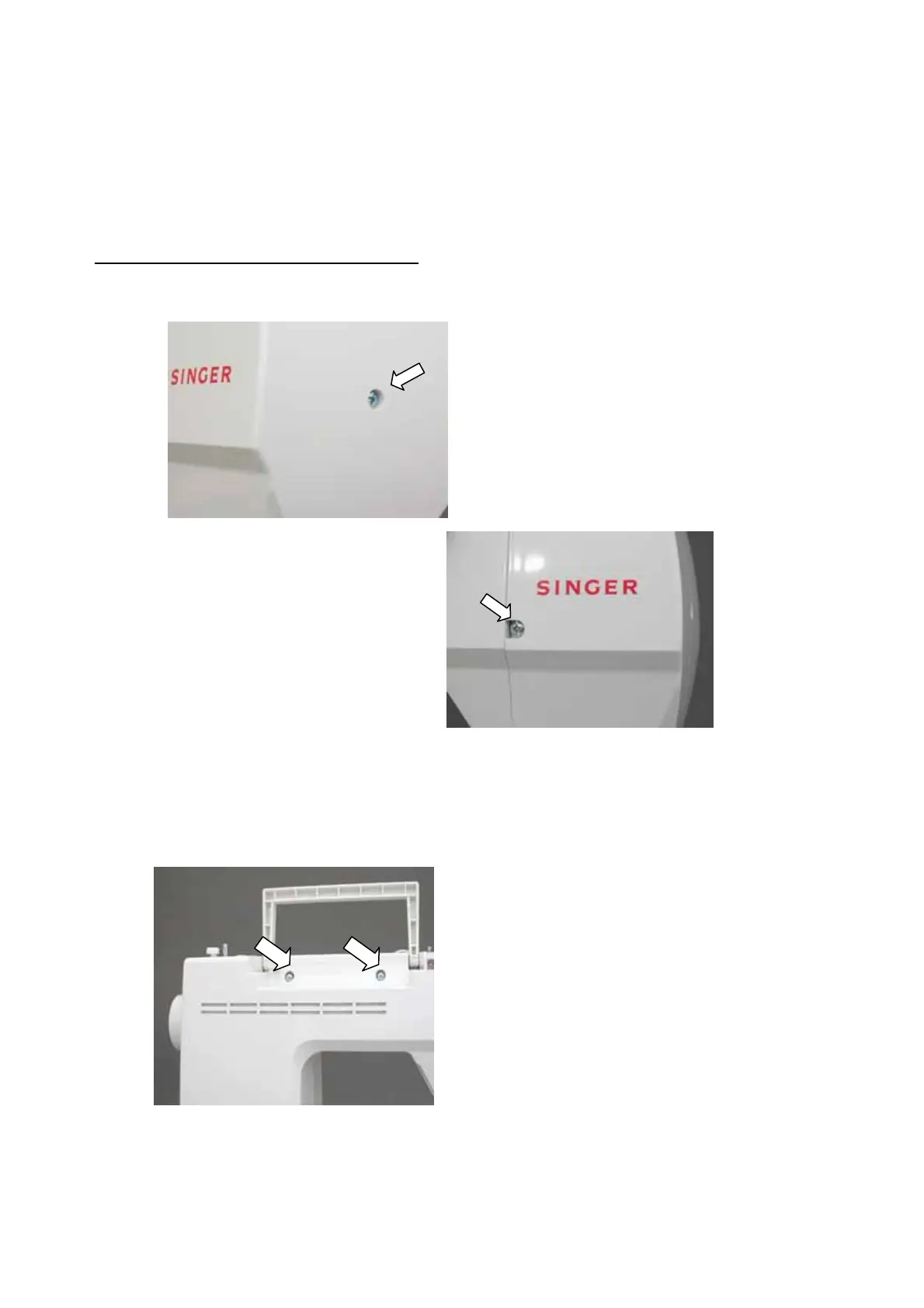

Sec.1 Disassembling of covers
(1) Face cover side

Remove screw A.




Remove screw Ｂ.
(2) Back cover side

Remove two self-tapping screws.
A
B
D E
