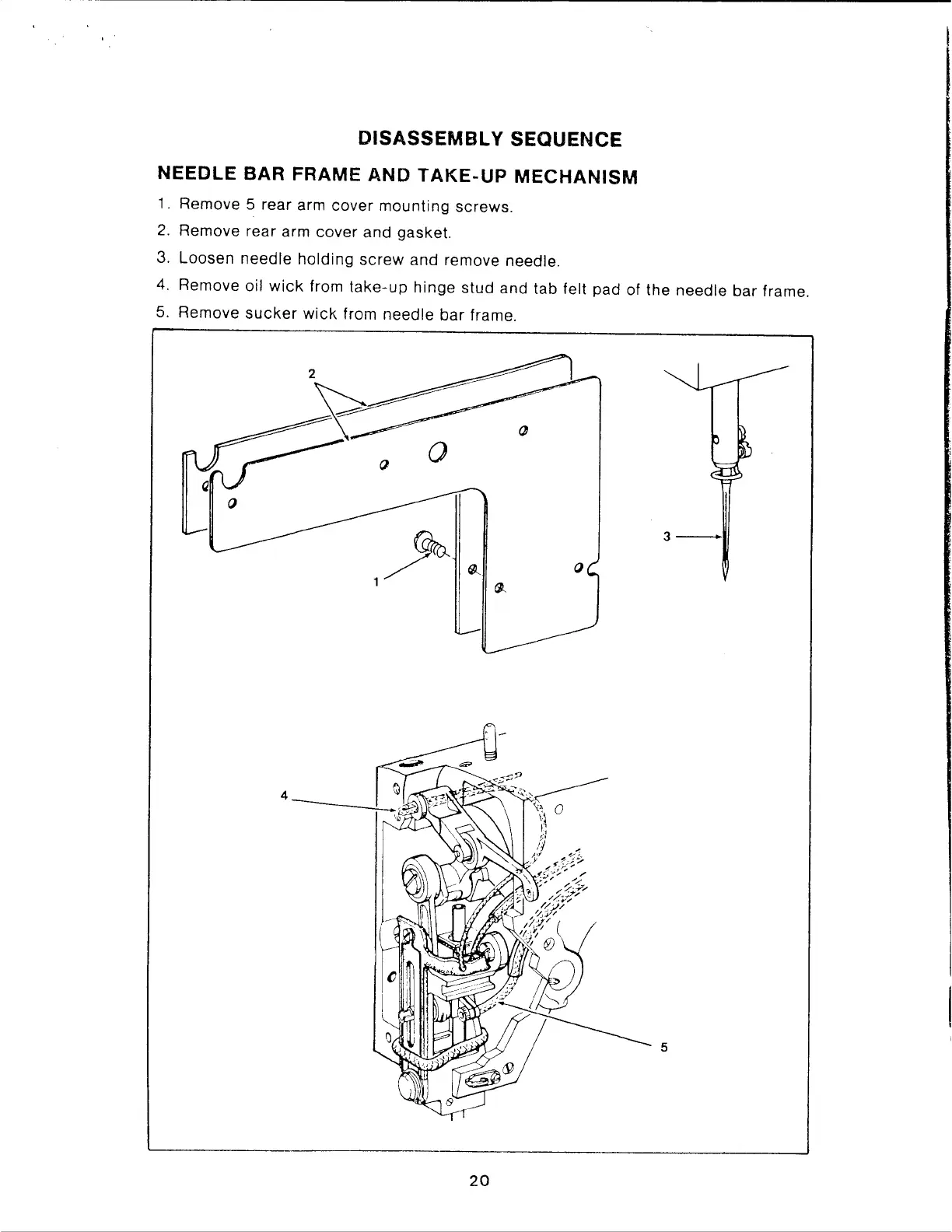

DISASSEMBLY
SEQUENCE
NEEDLE BAR FRAME AND TAKE-UP MECHANISM
1.
Remove 5 rear arm
cover
mounting
screws.
2.
Remove rear arm
cover
and gasket.
3. Loosen needle
holding
screw
and
remove needle.
4.
Remove oil
wick
from
take-up
hinge stud and tab felt pad of the needle bar frame.
5.
Remove
sucker
wick
from needle
bar
frame.
'
20
