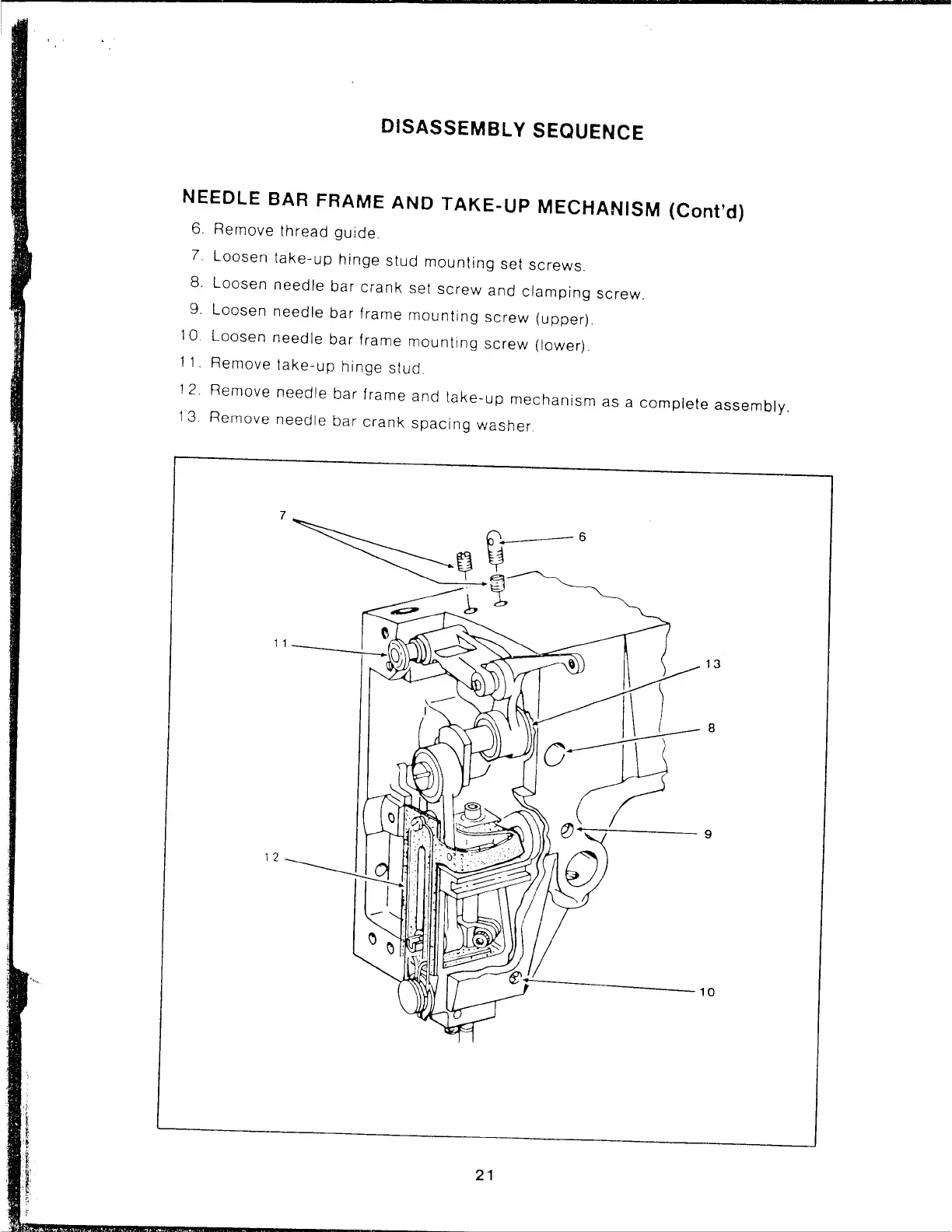

DISASSEMBLY SEQUENCE
NEEDLE
BAR
FRAME
AND
TAKE-UP
MECHANISM (Cont'd)
6. Remove
thread
guide.
7.
Loosen
take-up
hinge
stud
mounting
set
screws.
8.
Loosen
needle
bar
crank
set
screw
and
clamping
screw.
9.
Loosen
needle
bar
frame
mounting
screw
(upper)
10.
Loosen
needle
bar
frame
mounting
screw
(lower).
11. Remove
take-up
hinge
stud.
1
2.
Remove
needle
bar
frame
and
take-up
mechanism
as
a
complete
assembly.
13 Remove
needle
bar
crank
spacing
washer.
21
