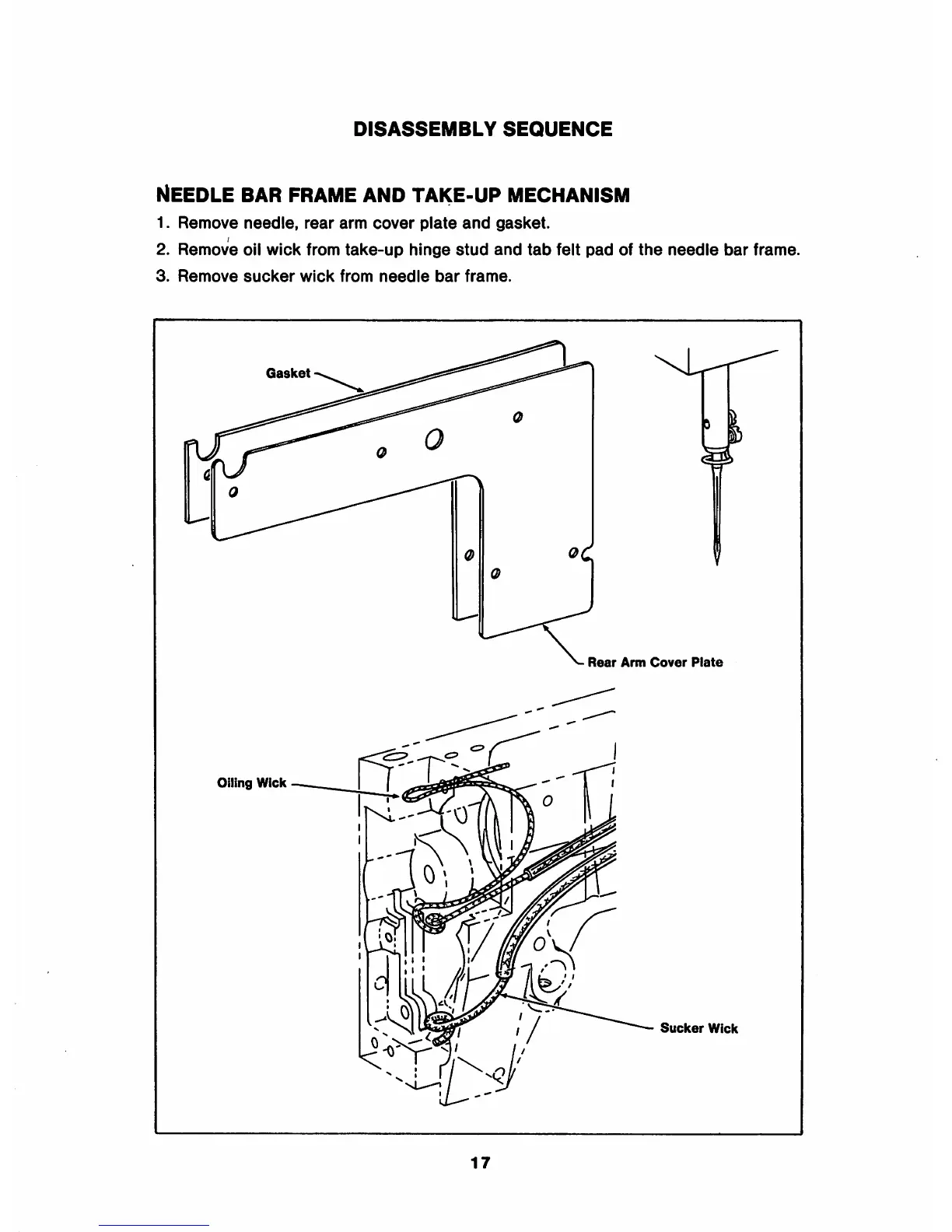

DISASSEMBLY SEQUENCE
Needle bar frame and take-up mechanism
1. Remove needle, rear arm cover plate and gasket.
2. Remove oil wick from take-up hinge stud and tab felt pad of the needle bar frame.
3. Remove sucker wick from needle bar frame.
Gasket
Rear Arm Cover Plate
Oiling Wick
Sucker Wick
17
