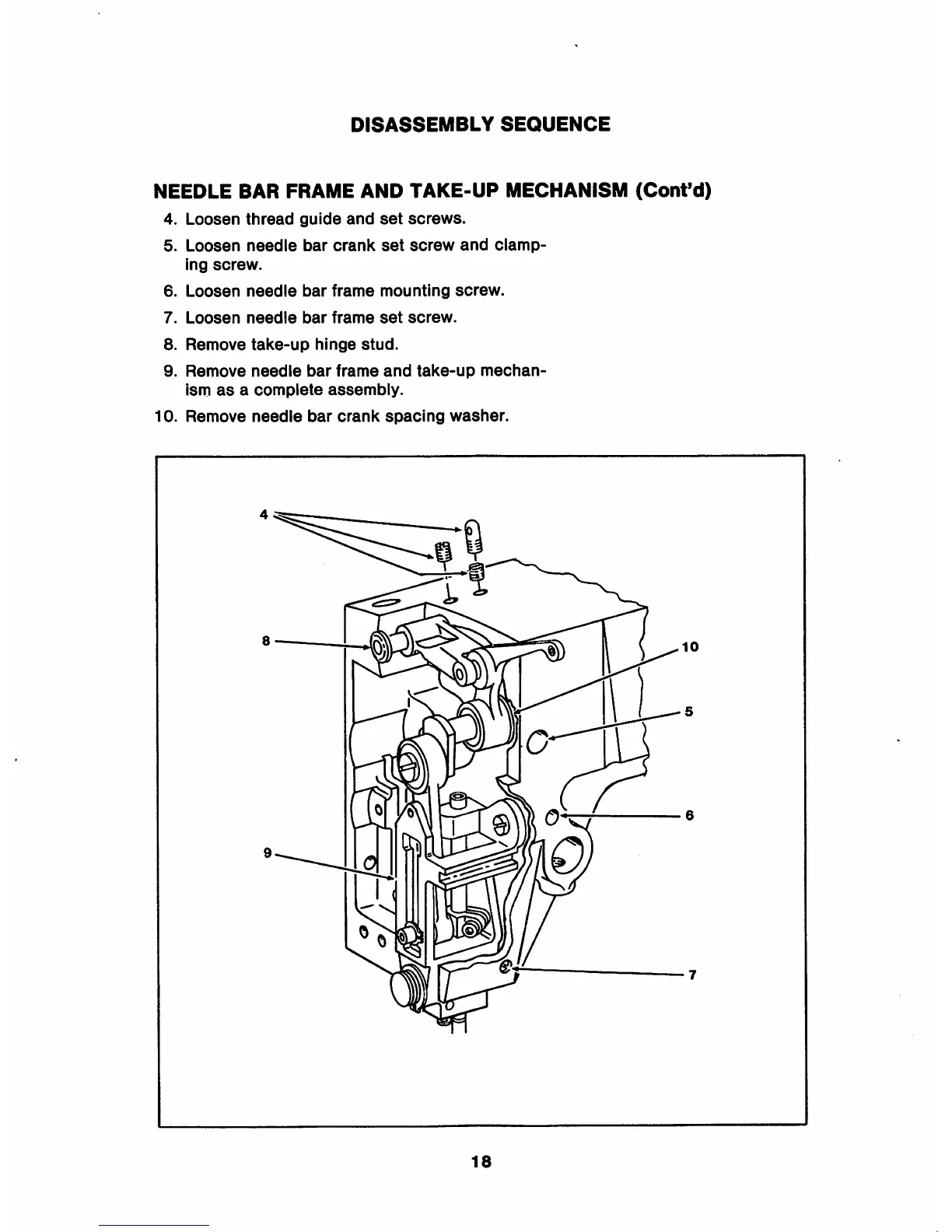

DISASSEMBLY SEQUENCE
NEEDLE BAR FRAME AND TAKE-UP MECHANISM (Cont'd)
4. Loosen thread guide and set screws.
5. Loosen needle bar crank set screw and clamp
ing screw.
6. Loosen needle bar frame mounting screw.
7. Loosen needle bar frame set screw.
8. Remove take-up hinge stud.
9. Remove needle bar frame and take-up mechan
ism as a complete assembly.
10. Remove needle bar crank spacing washer.
e
18
