PRESSURE
i'l
LESS
PRESSURE
LOCK
NUT

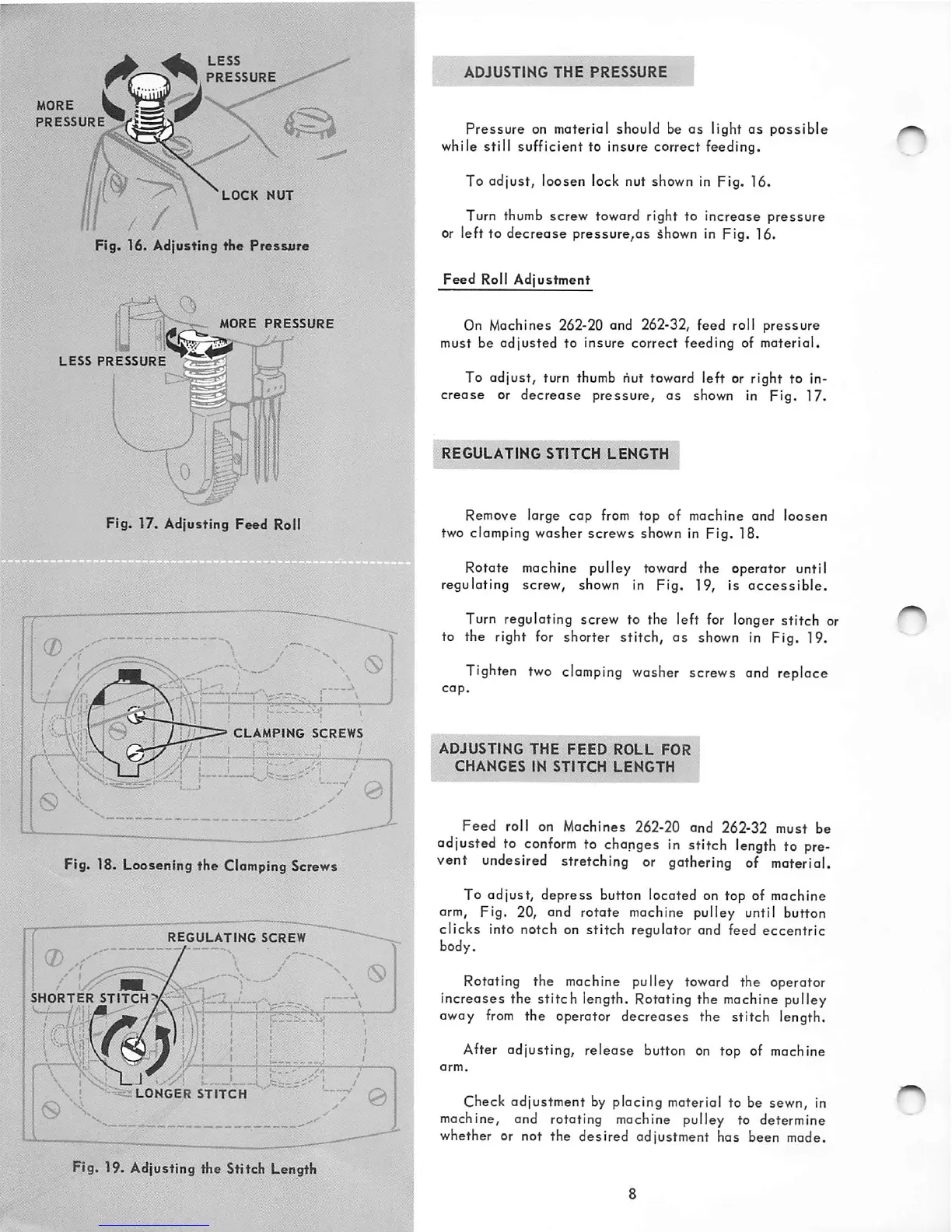

Fig.
16.
Adjusting
the
Pressure
i
-ii
MORE
PRESSURE
LESS
PRESSURE
TSrt
Fig. 17. Adjusting
Feed
Roil
Fig. 18. Loosening the
Clamping
Screws
REGULATING
SCREW
SHOR
T
ER
ST
ITCH
-
ijm
./AlVyi—
i i|l
LONGER
STITCH
Fig. 19. Adjusting the Stitch Length
•\
S)
ADJUSTING
THE
PRESSURE
Pressure on material should be as light as
possible
while still sufficient to insure correct feeding.
5
^ To adjust,
loosen
lock
nut
shown
in
Fig. 16.
•i
I
Turn
thumb
screw
toward
right
to
increase
pressure
or left to
decrease
pressure,as
Shown
in Fig. 16.
Feed
Roll Adjustment
f On Machines 262-20 and 262-32, feed roll
pressure
i!
must
be adjusted to insure correct feeding of material.
y
To
adjust,
turn
thumb
liut
toward
left
or
right
to
in-
I crease or decrease pressure, as
shown
in Fig. 17.
REGULATING
STITCH
LENGTH
Remove large
cap
from top of machine and loosen
two clamping washer screws shown in Fig. 18.
Rotate machine pulley toward the operator until
regulating screw, shown in Fig. 19, is
accessible.
Turn regulating screw to the left for longer stitch or
to the right for shorter stitch, as shown in Fig. 19.
Tighten
two
clamping
washer screws and replace
ADJUSTING
THE
FEED
ROLL
FOR
CHANGES
IN
STITCH
LENGTH
Feed
roll on
Machines
262-20
and
262-32
must
be
adjusted to
conform
to changes in stitch
length
to
pre
vent undesired stretching or gathering of material.
To adjust, depress button located on top of machine
arm, Fig. 20, and rotate machine pulley until button
clicks into notch on stitch regulator and feed eccentric
body.
Rotating the machine pulley toward the operator
increases the stitch length. Rotating the machine pulley
away
from
the operator decreases the stitch length.
After adjusting, release button on top of machine
Check adjustment by placing material to be sewn, in
machine, and rotating machine pulley to determine
whether or not the desired adjustment has been mode.
