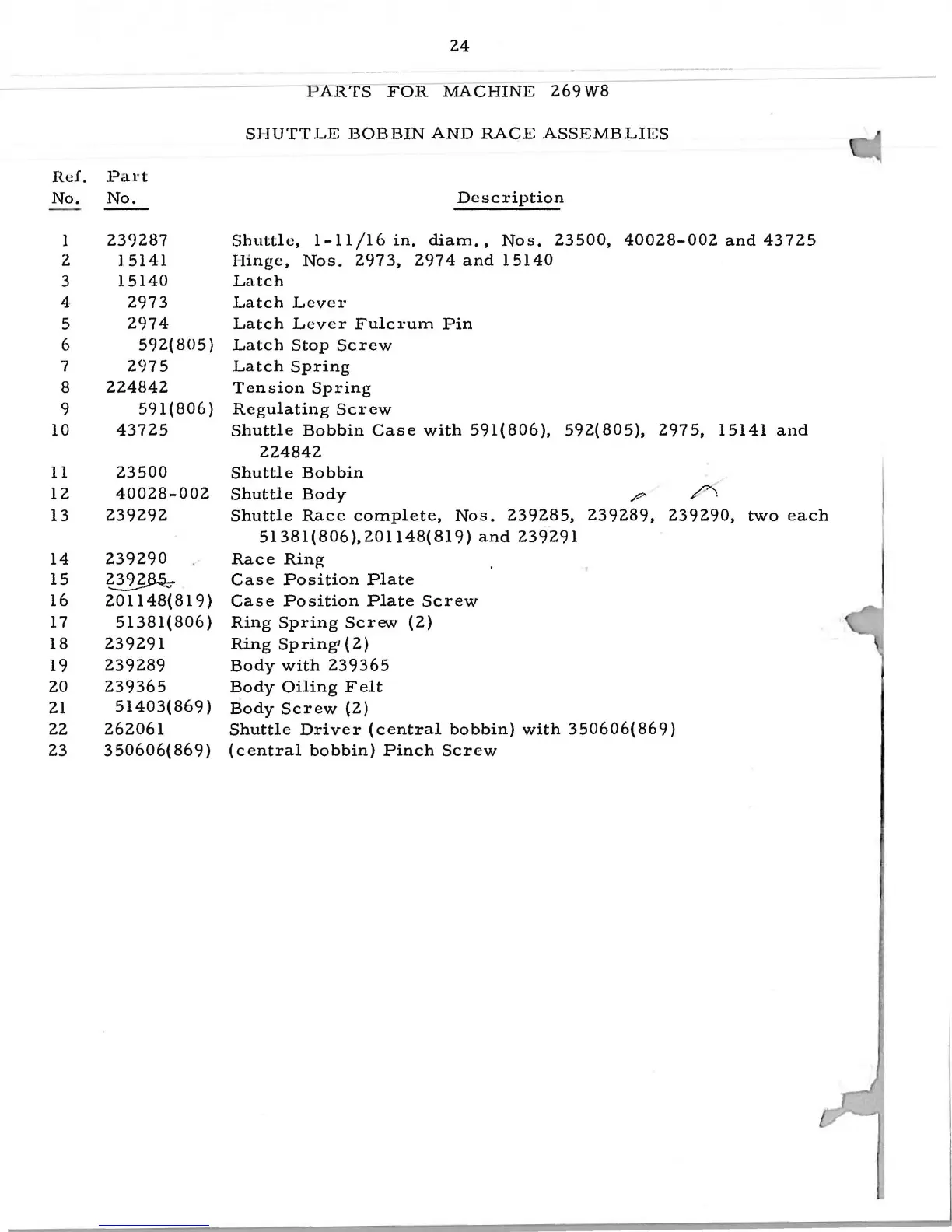

Singer Class 269w - Page 24

Ref.
P ar t
No. No.
1
239287
2 l 5141
3
15140
4 2973
5
2974
6
592(805)
7
2975
8 224842
9
591(806)
10 43725
11
23500
12 40028-002
13 239292
14
239290
15
~
16 2 0 1148( 81 9 )
17
51381(806)
18
239291
19
239289
20
239365
21
51403(869)
22 262061
23
350606(869)
24
ARTS FOR MACHINE 269 W8
SHUTTLE BOBBIN AND RACE ASSEMBLI ES
Description
Shuttle, 1-11/16 in. diam., Nos. 23500, 40028-002 and 43725
Hi nge, Nos. 2973, 2974 and 15140
Latch
Latch Lever
Latch Lever Fulcrum Pin
Latch Stop Screw
Latch Spring
Tension Spring
Regulating Screw
Shuttle Bobbin Case with 591(806), 592(805), 2975, 15141 and
224842
Shuttle Bobbin
Shuttle Body
Shuttle Race complete, Nos. 239285,
51381(806),201148(819) and 239291
Race Ring
Case Position Plate
Case Position Plate Screw
Ring Spring Screw (2)
Ring Sp ring1 ( 2)
Body with 239365
Body Oiling Felt
Body Screw (2)
/"
239289, 239290, two each
Shuttle Driver (central bobbin) with 350606( 869)
(central bobbin) Pinch Screw
