9960
4. Presser foot height and parallelism to the needle plate
Check
1. Lower the feed dog, with the feed dog drop mechanism, so it is below the needle plate.
2. Raise the presser foot to its highest position.

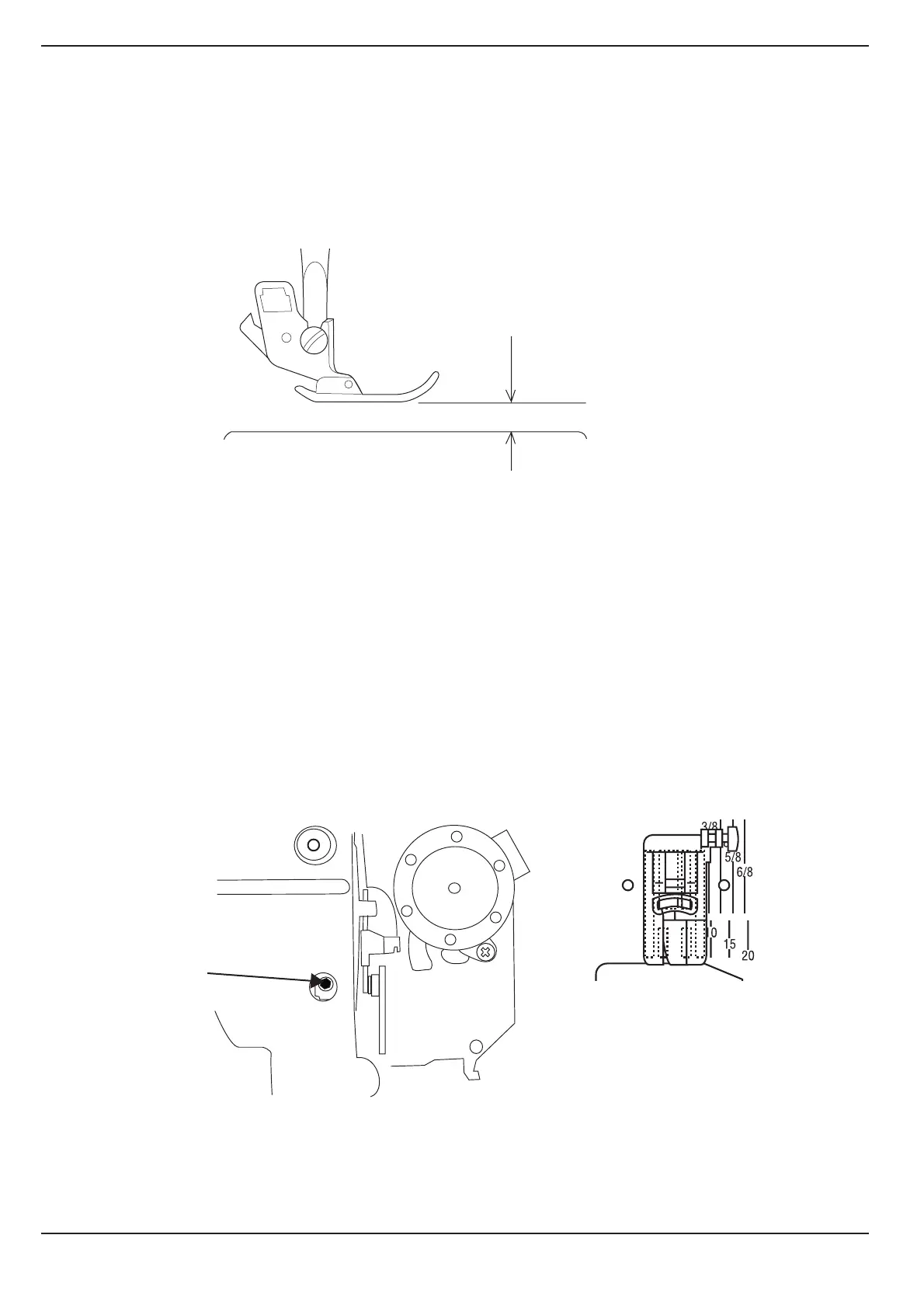

3. The clearance between the needle plate and the presser foot should be 6.5 mm.
4. Lower the presser foot , it should be parallel to the needle plate slot (B).
Adjustment
1. Remove the face cover,
2. Lower the feed dog, with the feed dog drop mechanism, so it is below the needle plate.
3. Raise the presser foot to its highest position.
4. Loosen the set screw (A) and adjust the presser foot height by moving the presser bar up or down.
5. Tighten the set screw (A) securely
6. Lower the presser foot and check so the presser foot is parallel with the needle plate slot (B).
if not
a. Lift up the presser foot
b. Loosen up set screw (A) and adjust the parallelism of the presser foot, by turn the Presser bar to the
left or to the right.
7. Tighten the set screw (A) securely.
8. Re-check height and parallelism of the presser foot.
A
6.5 mm
