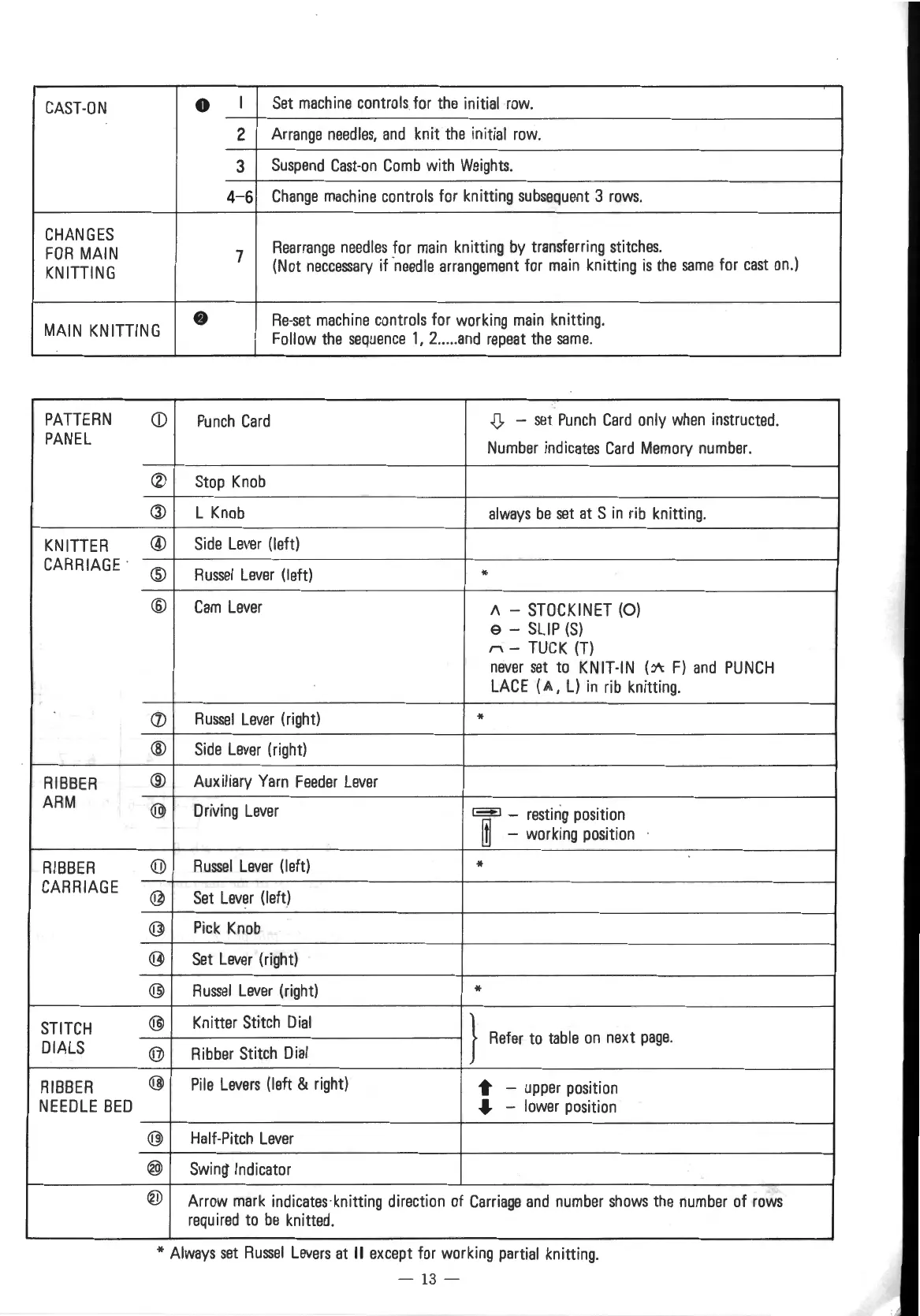

CAST-ON
0
I
Set machine controls for the initial row.
2
Arrange needles, and knit the in i tial row.
3
Suspend Cast-on Comb with Weights .
4-6
Change machine controls for knitting subsequent 3 rows.
CHANGES
Rearrange needles for main knitting by transferring stitches.
FOR MAIN
7
KNITTING
(Not neccessary if · needle arrangement for main knitting is the same for cast on.)
MAIN KNITTING
8
Re-set machine controls for working main knitting.
Follow the sequence 1, 2 .... . and repeat the same.
PATTERN
PANEL
KNITTER
CARRIAGE ·
RIBBER
ARM
RIBBER
CARRIAGE
STITCH
DIALS
RIBBER
NEEDLE BED
CD Punch Card
.(), - set Punch Card only when instructed.
Number indicates Card Memory number.
®
Stop Knob
®
L Knob
always be set at S in rib knitting.
@
Side Lever (left)
@
Russel Lever (left)
*
@
Cam Lever
I\ - STOCKINET (0)
e - SLIP (S)
n- TUCK (T)
never set to KNIT-IN (~ F) and PUNCH
LACE (A, L) in rib knitting.
([) Russel Lever (right)
*
@
Side Lever (right)
®
Auxiliary Yarn Feeder Lever
@
Driving Lever
,_, - resting position
ill - working position
([j)
Russel Lever (left)
*
@ Set Lever (left)
@ Pick Knob
@
Set Lever (right)
@
Russel Lever (right)
*
@
Knitter Stitch Dial
} Refer to table on next page.
@
Ribber Stitch Dial
@
Pile Levers (left & right)
•
- upper position
...
- lower position
@
Half-Pitch Lever
®
Swing' Indicator
@
Arrow mark indicates -knitting direction of Carriage and number shows the number of rows
required to be knitted.
* Always set Russel Levers at II except for working partial knitting.
