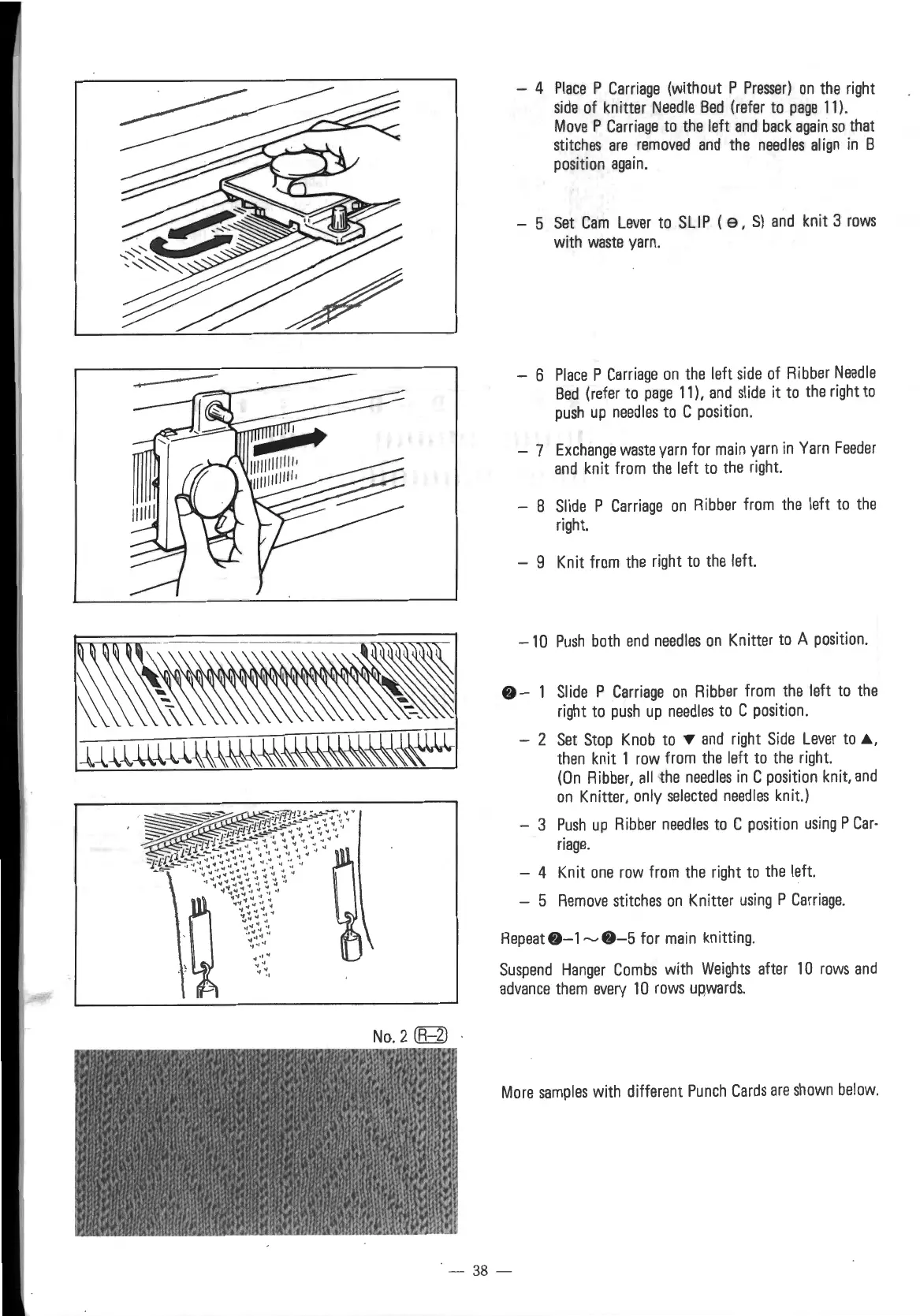

Singer SRP-50 - Page 42

No.2 (R-2)
- 4 Place P Carriage (without P Presser) on the right
side of knitter Needle Bed (refer to page 11 ).
Move P Carriage to the left and back again so that
stitches are removed and the needles align in B
position again.
- 5 Set Cam Lever to SLIP ( e, S) and knit 3 rows
with waste yarn.
- 6 Place P Carriage on the left side of Ribber Needle
Bed (refer to page 11 ), and slide it to the right to
push up needles to C position.
- 7 Exchange waste yarn for main yarn in Yarn Feeder
and knit from the left to the right.
- 8 Slide P Carriage on Ribber from the left to the
right.
- 9 Knit from the right to the left.
-10 Push both end needles on Knitter to A position.
f)- 1 Slide P Carriage on Ribber from the left to the
right to push up needles to C position.
- 2 Set Stop Knob to T and right Side Lever to A.,
then knit 1 row from the left to the right.
(On Ribber, all the needles inC position knit, and
on Knitter, only selected needles knit.)
- 3
Push up Ribber needles to C position using P Car-
riage .
- 4 Knit
one row from the right to the left.
- 5
Remove stitches on Knitter using P Carriage .
Repeatf)-1.-....-8-5 for
main knitting.
Suspend Hanger Combs with Weights after 10 rows and
advance them every 10 rows upwards.
More samples with different Punch Cards are shown below.
· _ 38 -
