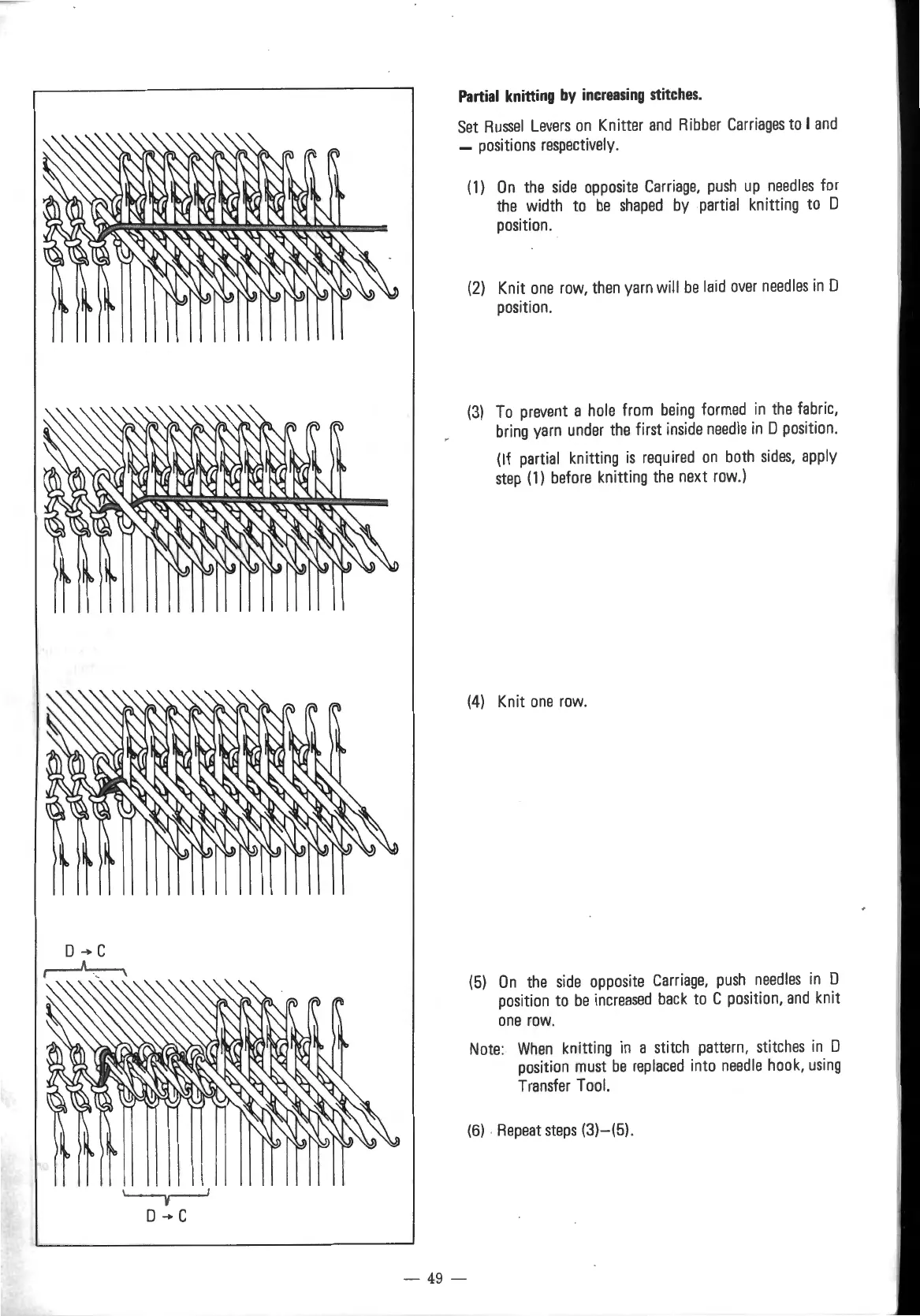

Partial knitting by increasing stitches.
Set Russel Levers on Knitter and Ribber Carriages to I and
- positions respectively .
- 49 -
(1) On the side opposite Carriage, push up needles for
the width to be shaped by partial knitting to D
position.
(2) Knit one row, then yarn will be laid over needles in D
position.
(3) To prevent a hole from being formed in the fabric,
bring yarn under the first inside needle in D position .
(If
partial knitting is required on both sides, apply
step ( 1) before knitting the next row.)
(4) Knit one row.
(5) On the side opposite Carriage, push needles in D
position to be increased back to C position, and knit
one row.
Note : When knitting in a stitch pattern, stitches in D
position must be replaced into needle hook, using
Transfer Tool.
(6) Repeat steps (3)-(5).
