SINGTRONIC KA-2500DSP User Manual

LOCK
UNLOCK
UNLOCK
LOCK
+
-
RIGHT
+
LEFT
-
+
-
RIGHT
+
LEFT
-
SPEAKER SYSTEM(8-16 Ω )
A
B
C
A
B
C
GND
REAR MIC 5 INPUT
REAR MIC 4 INPUT
1
2
3
1
2
3
INPUT
AUDIO
OUT
VIDEO
INPUT
AUDIO
INPUT
VIDEO OUT
AUX DVD HDD
L
R
L
R
B
REC
LINE
MIC
A
SUB
H
L
OUTPUT
R
L
R
EQ
OUTPUT
HD 2 HD 3
OUTPUT
HD INPUT HD OUTPUT
HD 1
MONITOR AUDIO OUTPUT
VOL
L
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTORE
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION
S/N:
MODEL KA-2500DSP
INPUT VOLTAGE ~115/ 60Hz
FUSE
250V/T20A
AC INPUT
115V/60Hz
POWER
CONSUMPTION 2600 WATTS
AUDIO OUTPUT 1300W+1300W
6

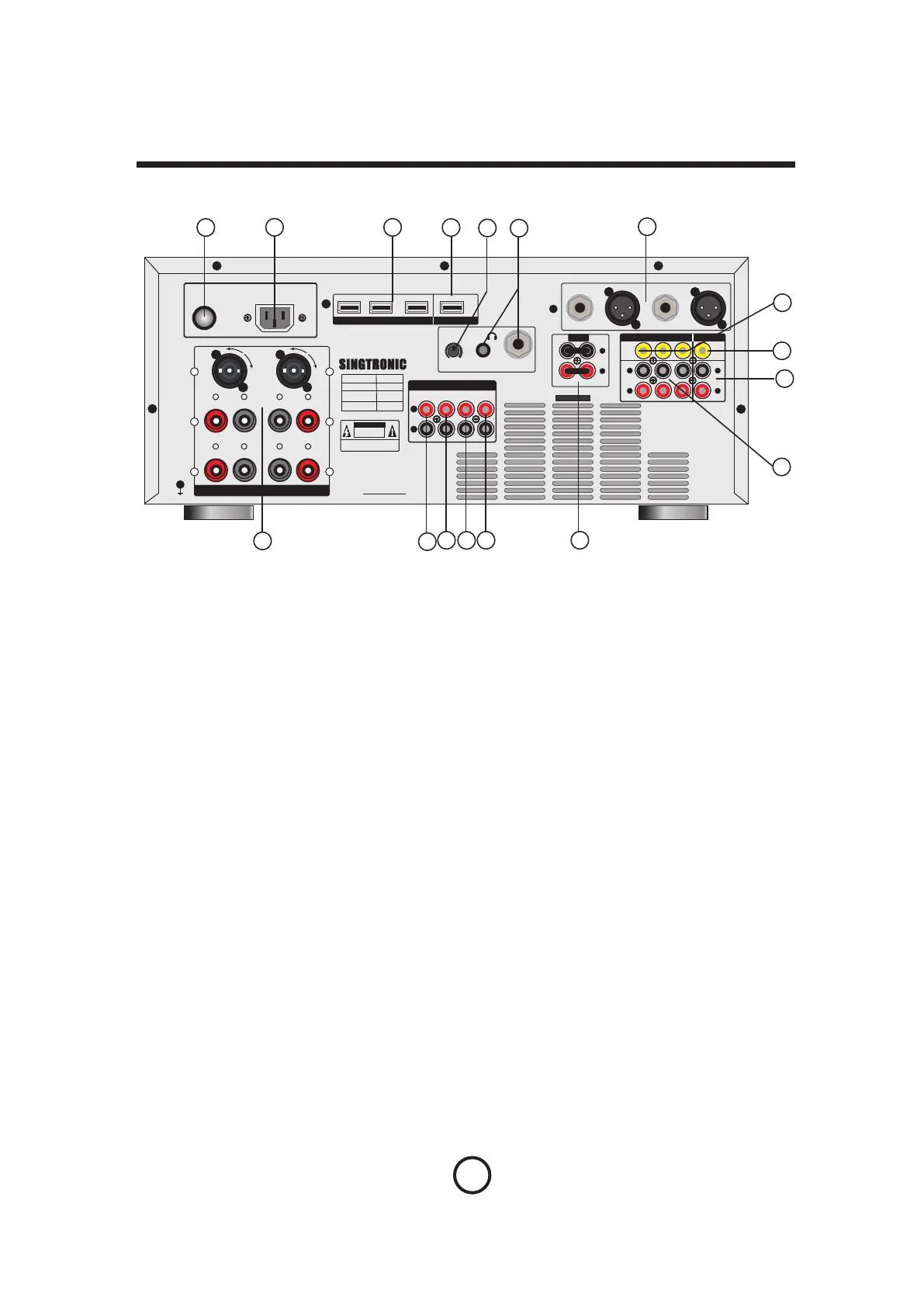

REAR PANEL
REAR PANEL FEATURES
1.DVD/AUX/HDD Audio In -This set of RCA jacks are for connecting the audio component from A/V device to
the KA-2500DSP.Connect the cable from the AUDIO OUT jacks on A/V device to these AUDIO IN jacks.
12.Subwoofer - The KA-2500DSP has 1 RCA style sub-woofer out jack,this jack are used to supply bass
to power sub-woofer Connect the cable from the sub-woofer in jack on the power sub-woofer to the
sub-woofer out jack.
13.Mic out-the KA-2500DSP has 2 RCA Mic out.these jacks are used to send the mic signal to the amplifier then
the KA-2500DSP is used as pre mixer connect cord from line out to the other amplifier's mic jacks.
9.Rear Mic1 Input And Mic5 Input Jack
13
3
2
4
5
8
10
9
11
12
1
14
15
16
14.The recording level output
15.Hdmi Input
16.Hdmi output
2.Audio signal output, external TV set
3.DVD/AUX/HDD Video In - This RCA jack is for connecting the video component form A/V device to the
KA-2500DSP to monitors, TFT displays and compatible TV'S.Conect the cable(s) form the VIDEO IN
jack(s) on the display device(s) to the VIDEO OUT jack(s)
4.Video Out - The KA-2500DSP has 1 RCA style VIDEO OUT jack and 1 S-VIDEO jack,These jacks are
used to supply video to monitors, TFT displays and compatible TV'S,Connect the cable(s) from the
VIDEO IN jack(s) on the display device(s) to the VIDEO OUT jack(s).
5.Speaker Out - The KA-2500DSP has 2 sets of speaker outlets.These outlets are used to supply the
music to the speaker Connect cable from the speaker "+" and "- " on the speaker to the KA-2500DSP’s
speaker outlet.
6.Fuse - The KA-2500DSP has 20A/115V fuse.
7.AC Input - The KA-2500DSP has 1 AC inlet.This inlet is used to supply the power to KA-2500DSP,
Connect the power cords from wall AC coutlet to the KA-2500DSP AC inlet.
8.Audio output, an external headset
11.Line Out - The KA-2500DSP has 2 RCA Line Out.These jacks are used send the mic signal to the
amplifier,then the KA-2500DSP is used pre mixer.Connect the cord from line out to the other amplifier's
Line jacks.
6
7
10.Effect In/Out - The has 2 RCA Effect In/Out,These jacks are used to send the signal to the other
devices like Equalizer, and return with mixing.Connect the cord from Effect out to the Equalizer ,then
connect the cord from the Equalizer to Effect in
KA-2500DSP
17
17.Headphone output volume control
