Singular Sound BeatBuddy - Page 11

10
How to plug in
BeatBuddy Manual

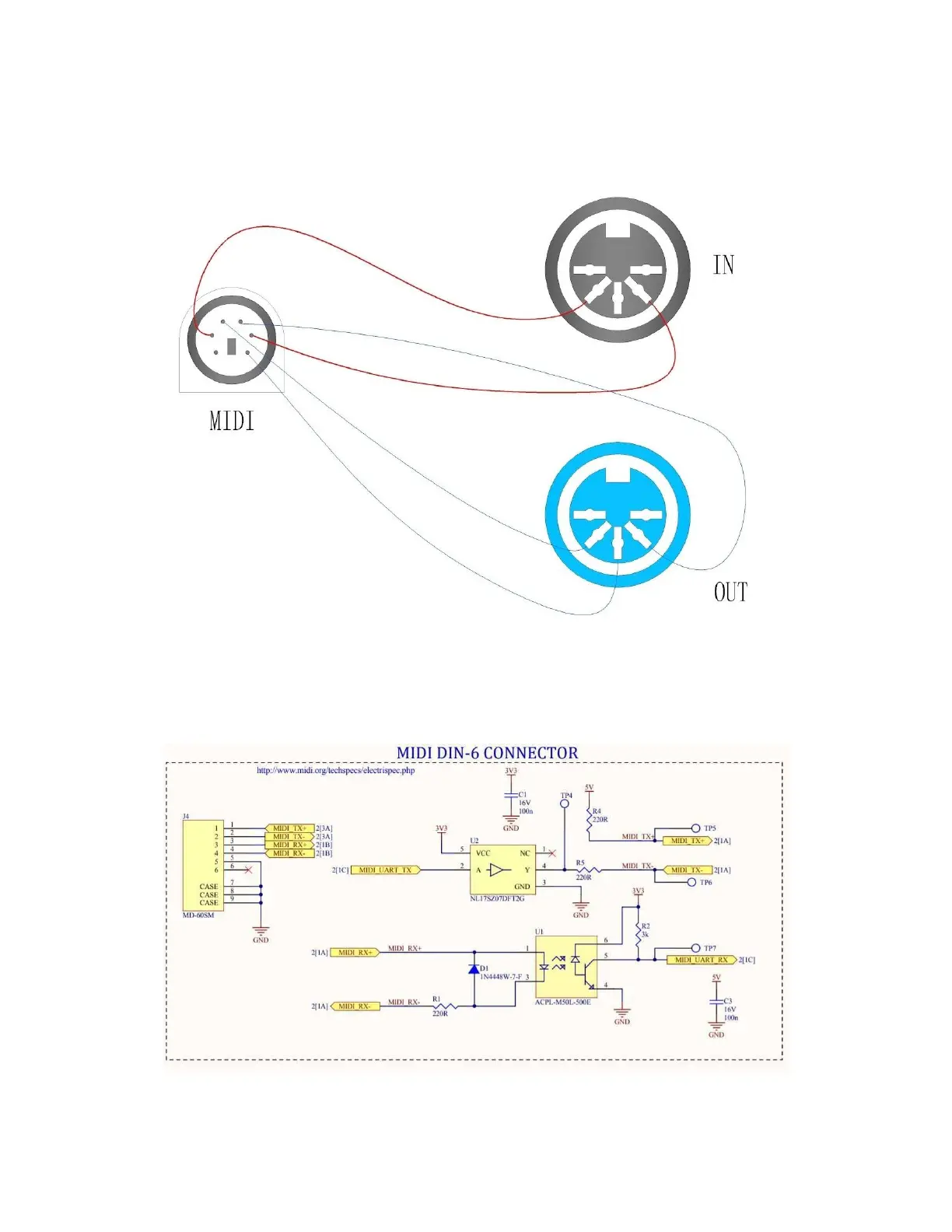

A breakdown of the MIDI Sync Breakout Cable’s routing of MIDI data from the PS/2
connector to both the IN and Out Port.
A graphical representation of the PS/2 connector circuit.
These images are for all you tech nerds, all the normal people can skip this schematics page.
