TECHNICAL SPECIFICATIONS
Model SIAC0109
Power 65W
Power Supply 220240~, 5060Hz
Cable length 1,80m
Fan speed 300m3/h
Effective Distance up to 7m
Rotating Degrees of Aircooler 60°
Timer Up to 12h
Water Tank Capacity 11 L
Noise level ≤60dB
Main material Plastic
Dimensions 218*258*610mm
Weight (empty) 4,6kg
USER MANUAL
1. Assembling the Sinji Aircooler
2. Operation instructions
2.1. General
2.2. Filling
2.3. Ice Packs
2.4. Functions
3. Storage and maintenance
4. Disposal of electrical and electronic equipment
1. Assembling the Sinji Aircooler
Note: Assembly can be made easier with the assistance of another person.
1.1 Place the Aircooler on a soft surface, like a cardboard box, carpet or a rug, to avoid damaging it.

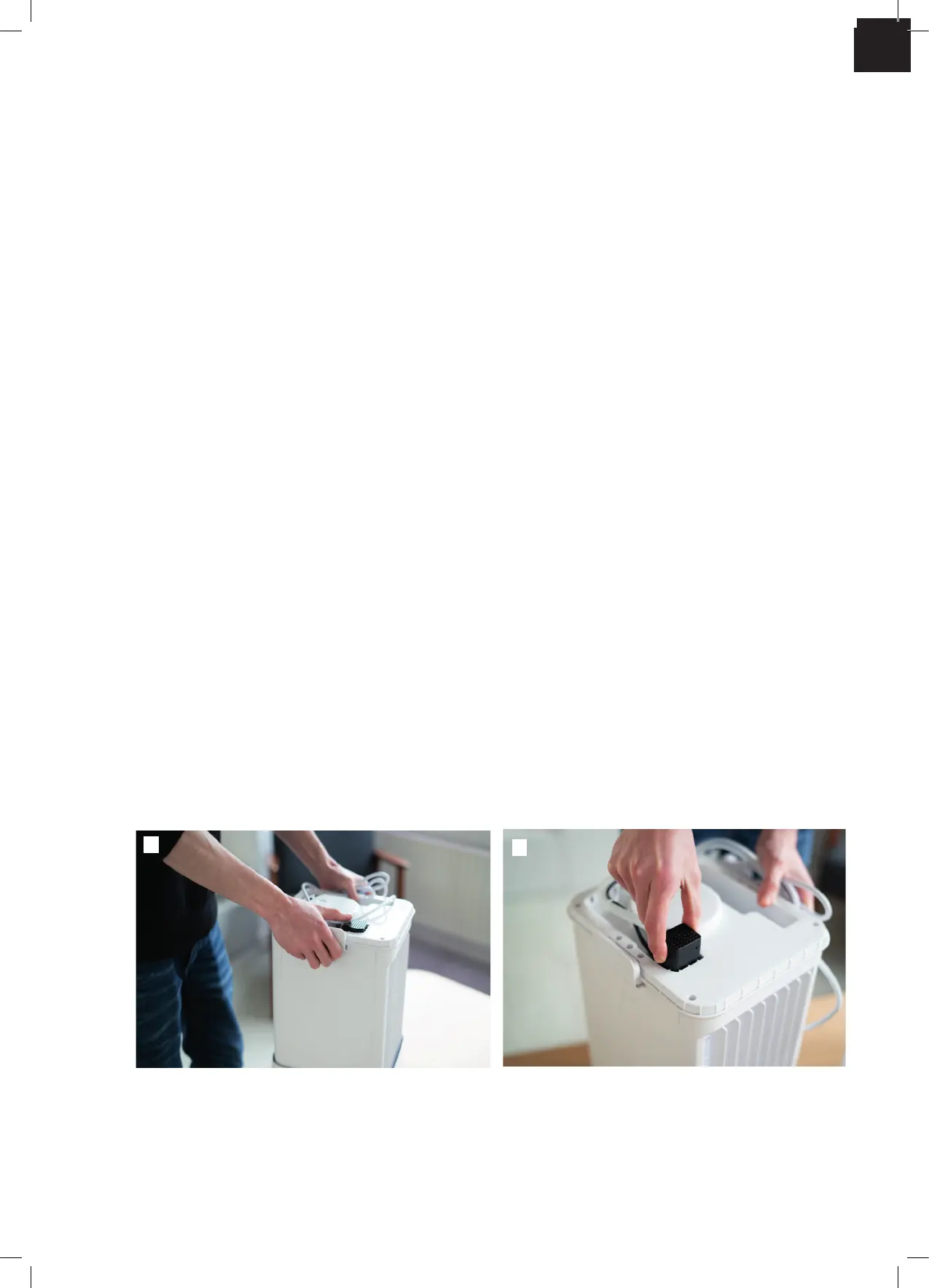

1.2 Carefully lift and slide the water tank base of the Aircooler main body. (Figure 1)
1.3 Slide the water pump out of the bottom of the Aircooler main body. (Figure 2)
(It will hang from the bottom for now.)
2
1
