PRE-OPERATION FUNCTION TEST
TB24 Plus&26J Plus Operation Manual 6-3 © Jun 2022

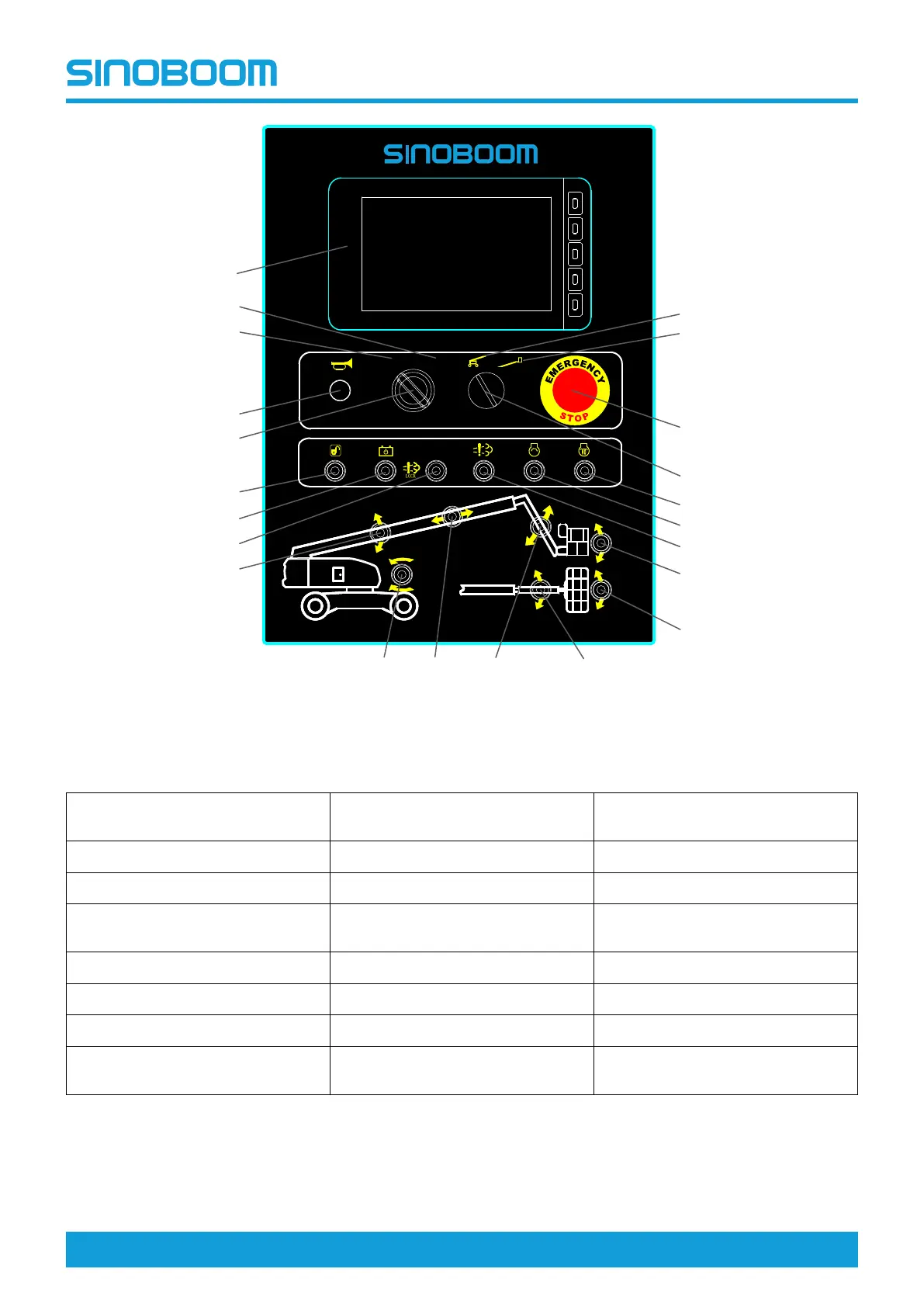

Figure 6-2 Ground Controller (China Stage 3/4 & US Stage 3/4)
Table 6-2
1. Display (see the figure and table
below)
9. Main boom up/down switch 17. Engine start switch
2. ON position
10. Turntable rotate switch
18. Glow plug switch (if equipped)
3. OFF position 11. Main boom telescope switch
19. Ground/Platform select switch
4. Horn button
12. Jib up/down switch-TB26J Plus
only
20. Emergency stop button
5. Key switch 13. Jib rotate switch (not used) 21. Platform control position
6. Enable switch 14. Platform rotate switch
22. Ground control position
7. Emergency power switch
15. Platform level switch
8. After-treatment locking switch (if
equipped)
16. Exhaust treatment switch (if
equipped)
OFF
ON
1
2
3
4
5
6
7
8
9
10
12 13
21
20
11
22
14
15
16
17
18
19
