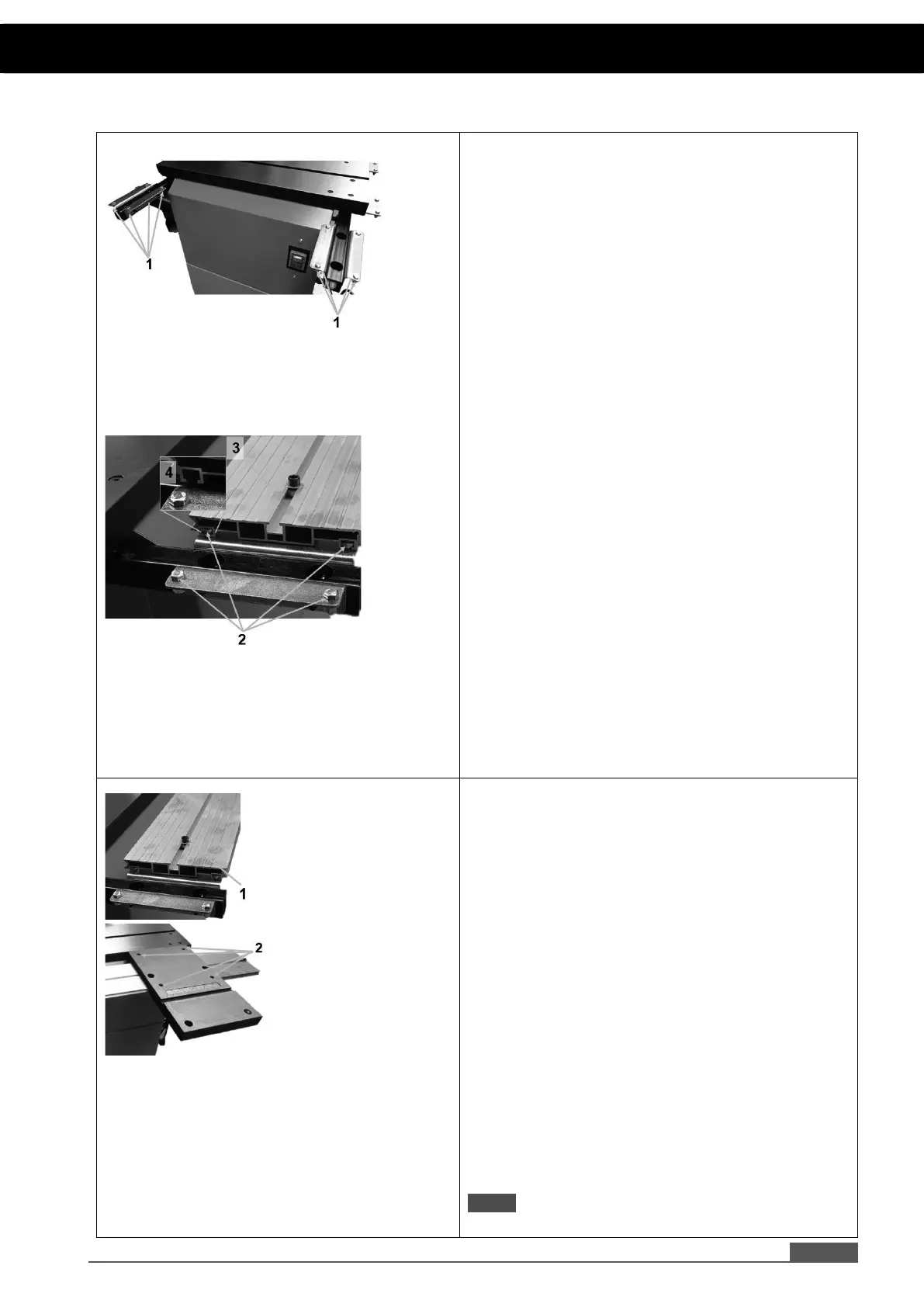

8.2. Sliding table base profile
• Loosen 4 nuts (1) per sliding table bracket.
• Slide the screw heads (2) of both sliding table
brackets into the left and right T-slot (4) of the
sliding table base profile (3).
• Slightly tighten the nuts (1) in the in the
middle position.
8.3. Sliding table
• Loosen the screw to remove the stopper (1)
from the sliding table base profile.
• Loosen the screws (2) on the upper side of the
sliding table very slightly.
• Loosen the 4 nuts (3), which fix the guide rolls
(4), with a wrench until the largest width is
reached.
• The 4 guide rolls on the underside of the
sliding table (5) are inserted laterally (6) at the
sliding table base plate.
• Tighten the 4 nuts (3) on the underside of the
sliding table with a wrench until the sliding
table can be moved without any play.
NOTE: Do not overtighten nuts (3) so that the
sliding table can still be moved easily!
5. ASSEMBLY Cont...
