• This measured distance must also be
readable on the ruler (3).
• Then tighten the nuts (4) on the brackets
again to fix the guide rail.

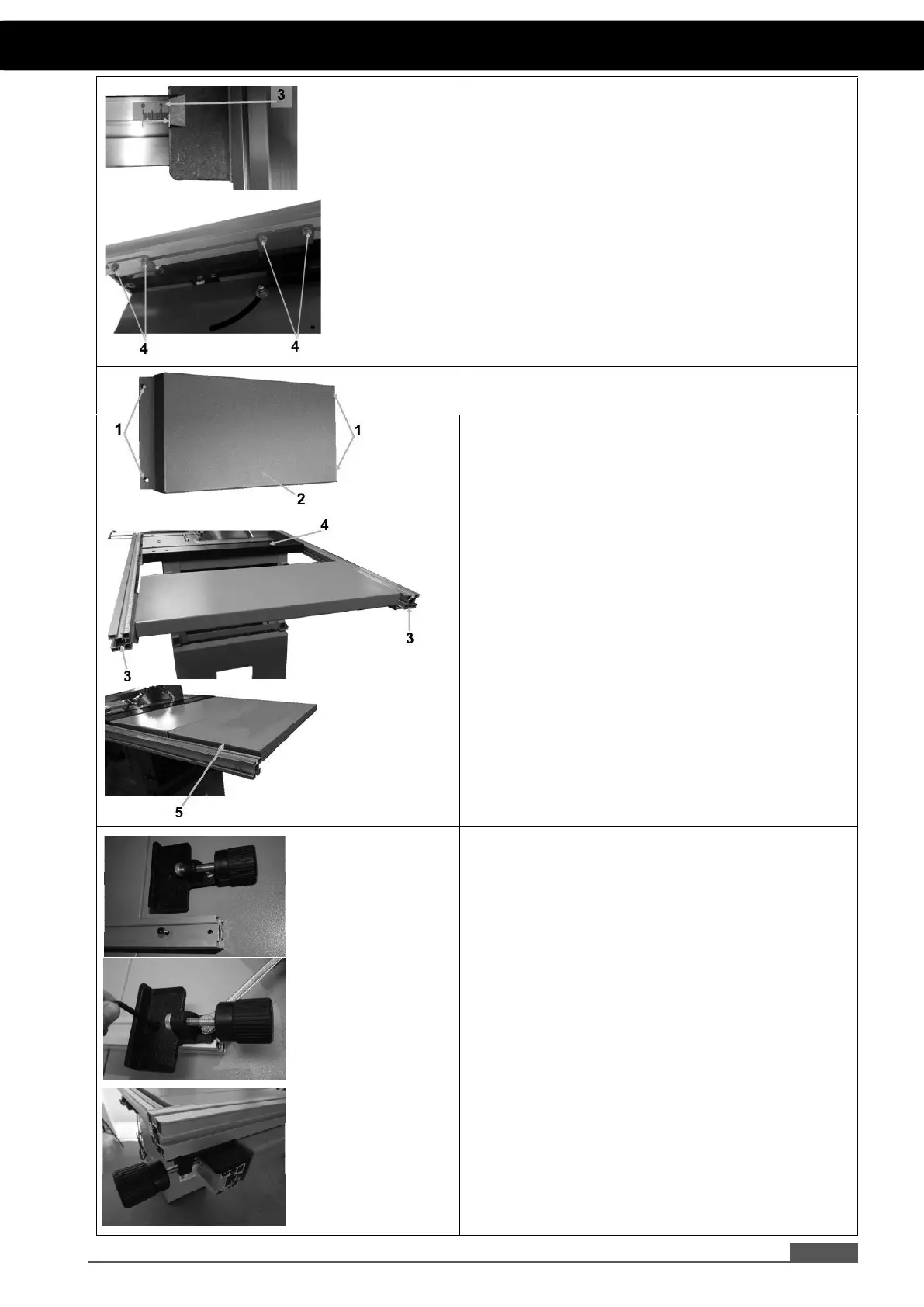

11. Assembly table extension
• Loosen the screws (1) at the table extension
(2) so far that they can be inserted into the T-
slot (3) of the guide profiles on the left and
right.
• Push the first table extension (2) to the main
table (4).
• Mount the second table extension (5) as
described above.
• Retighten the screws (1) of the two table
extensions.
17. Assembl
y rip fence
Screw the adapter as shown on the aluminum
•
profile and slide it into the rip fence guide profile.
5. ASSEMBLY Cont...
