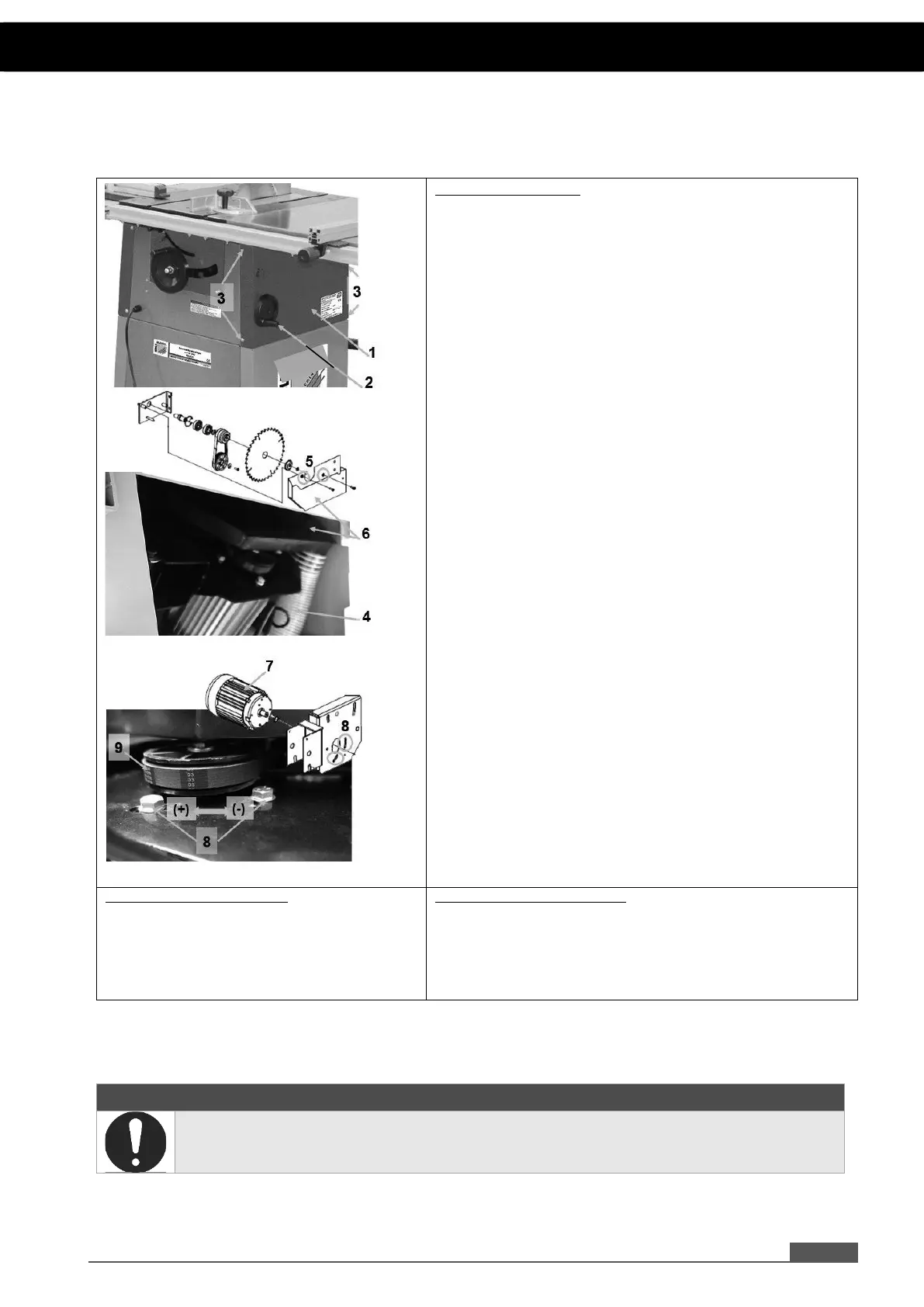

7.2.5 Checking / adjusting / replacing V-Belt
The V-belt tension is set correctly for new machines ex-factory. By stretching the belts over the
running time, retensioning of the V-belt is necessary.
Changing the
belt:
• Dismount the saw blade and the riving.
• Remove the side cover (1) to gain access to the
belt. For this, disassemble the hand wheel (2) and
remove 4 screws (3) of the cover (1).
• Remove the suction hose (4) from the lower saw
blade guard (6).
• Remove the saw blade guard by loosening the 2
screws (5).
• By loosening the 2 nuts (8), the motor position can
be adjusted.
• Move the motor (7) upwards (-) to release the V-
belt (9).
• Now the V-belt can
be changed.
• After changing the belt and adjusting the tension
correctly,
reassemble the previously disassembled
components:
• Lower saw blade guard
• Suction hose
• Saw blade
• Riving knife + saw blade guard
• Cover
• Then establish correct V-belt tension again.
Increase V-belt tension:
Loosen the 4 nuts (8) now the motor
can be shifted in the direction (+) of
more V-belt tension.
When correct tension is reached.
Tighten the 4 nuts (8) firmly again.
Decrease V-belt-tension:
Loosen the 4 nuts (8) now the motor can be shifted
in the direction (-) of less V-belt tension.
When correct tension is reached. Tighten the 4 nuts
(8) firmly again.
7.3 Storage
NOTE
Improper storage can damage and destroy important machine parts. Store packed
or unpacked parts only under the intended ambient conditions!
7. CLEANING, MAINTENANCE, STORAGE & DISPOSAL Cont...
