5.3 Preparation of the surface
NOTICE
The use of paint thinners, gasoline, corrosive chemicals or abrasive cleaners will result
in damage to the surface! Therefore use only mild cleaning agents.
Before you install and commission the machine at the intended location, carefully remove the
anti-corrosion protection and grease residues. This can be done with the usual solvents. Under
no circumstances should you use nitro thinner or other cleaning agents that could attack the
machine's paint.
5.4 Assembling the machine
The machine has been disassembled for transport and must be assembled before use. Follow
the instructions below:
WARNING
Handling the machine with the mains supply intact can result in serious injury or
death. Therefore, do not connect the machine to the power supply before
completing the assembly.

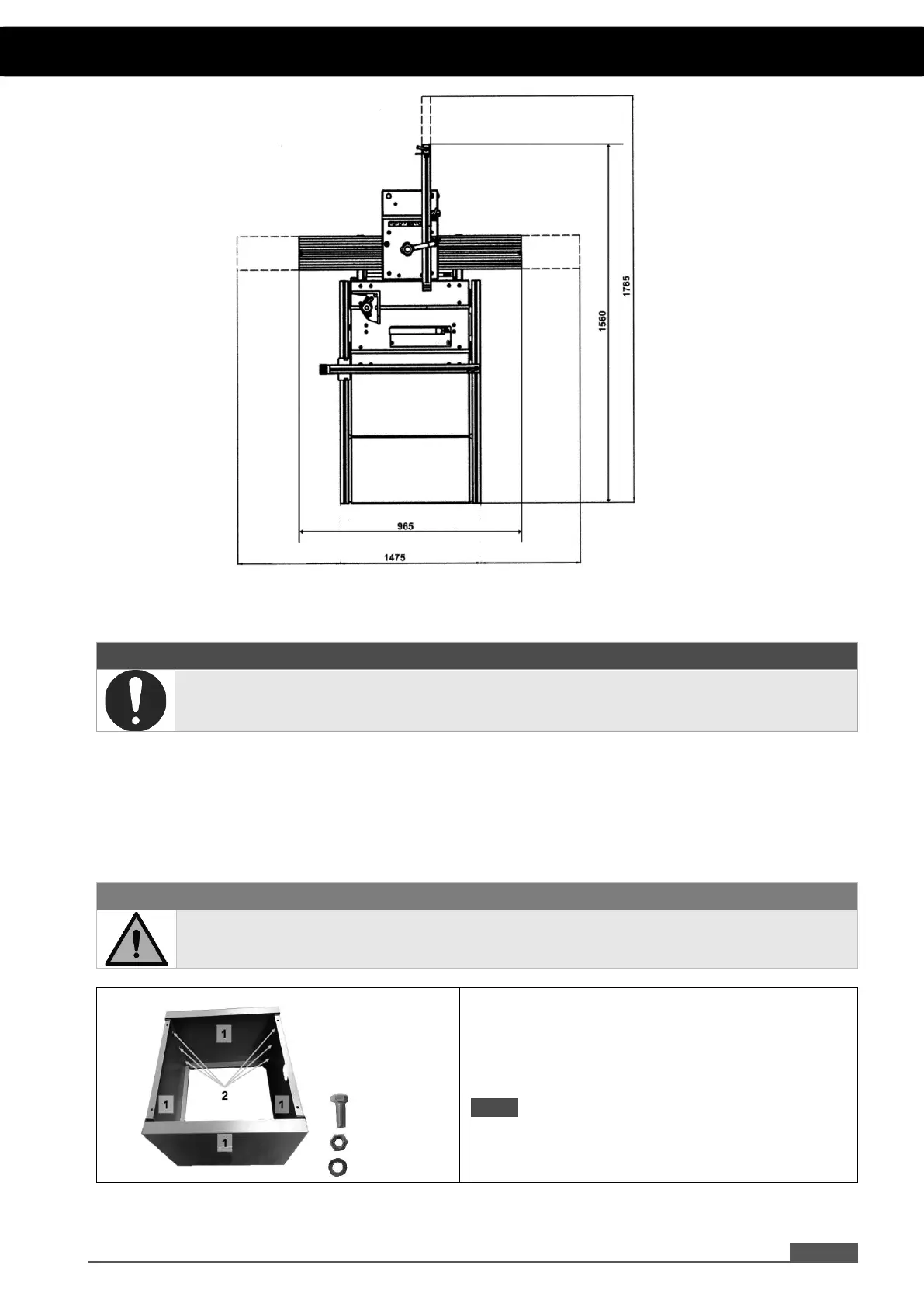

1. Assembly
socket
The socket consists of 2 different socket
elements (1).
• The socket elements are assembled with 3
screws M6x20, washers and nuts each (2).
NOTE: Make sure that the threaded holes for the
machine feet are located at the bottom.
5. ASSEMBLY Cont...
