12
GETTING TO KNOW YOUR BANDSAW….cont
Ref. Description Ref. Description
1. Power on light 15. Coolant tank
2. Coolant pump switch 16. Pivot arm
3. Start switch 17. Belt guard
4. Stop switch 18. Moveable blade guard
5. Emergency stop button 19. Fixed vice jaw
6. Motor 20. Moving vice jaw
7. Gearbox 21. Filter
8. Adjustable guide bracket right 22. Cut off stop shaft
9. Hydraulic cylinder 23. Cut off stop
10. Electrical box 24. End of cut microswitch
11. Blade guard 25. Adjustable guide bracket left
12. Vice hand-wheel 26. Blade tensioning knob
13. Wheel 27. Blade tracking adjustment
14. Coolant pump 28. Coolant tap

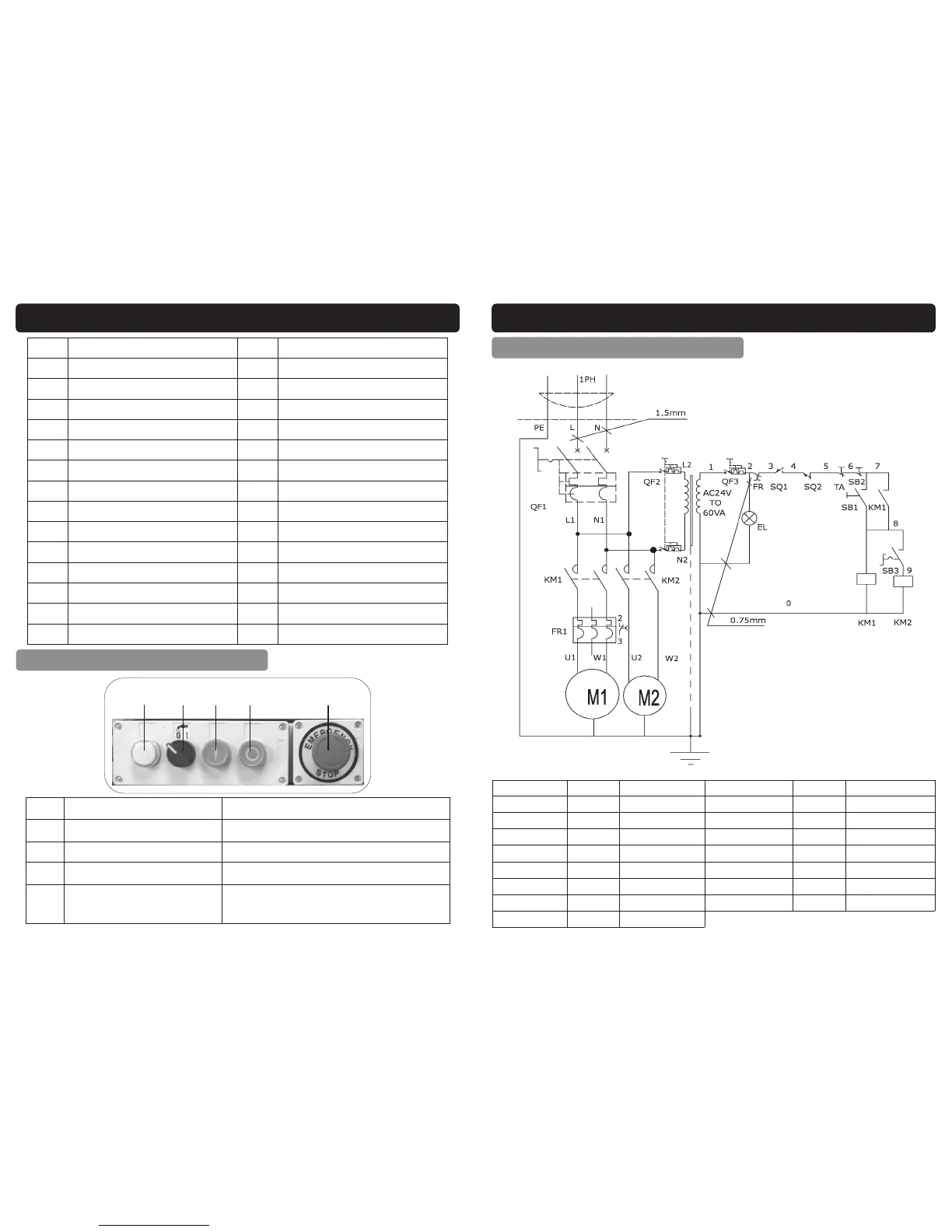

CONTROL PANEL
1 2 3 4 5
1. Power on light When lit the machine is ready for operation.
2. Coolant pump switch Turns the coolant pump on / off.
3. Start button Turns the machine on.
4. Stop button Turns the machine off.
5. Emergency stop button
Interrupts power to the system and stops the motor,
twist the button until it pops out to bring power back
to the machine.
25
WIRING DIAGRAM
1 PHASE WIRING
Description Reference Specification Description Reference Specification
Main motor M1 50hZ 1ph Contactor KM CN6 AC24v 50Hz
Coolant pump M2 230/400v 50Hz 40w Heat relay FR RHM-5N 5.5-8.5A
Transformer TC AC400,230 24v Limit switch SQ1 QKS7 250V 10A
Current breaker QF1 DZ47-63 3P 5A Interlocking switch SQ2 QKS8 250V 10A
Current breaker QF2 DZ47-63 2P 2A Start SB XB2-BE101
Current breaker QF3 DZ47-63 1P 1A Stop SA1 XB2-BE102
Switch TA XB2-BX542 Start SA2 XB2-ED21
Indicator light EL XB2-BVD3
