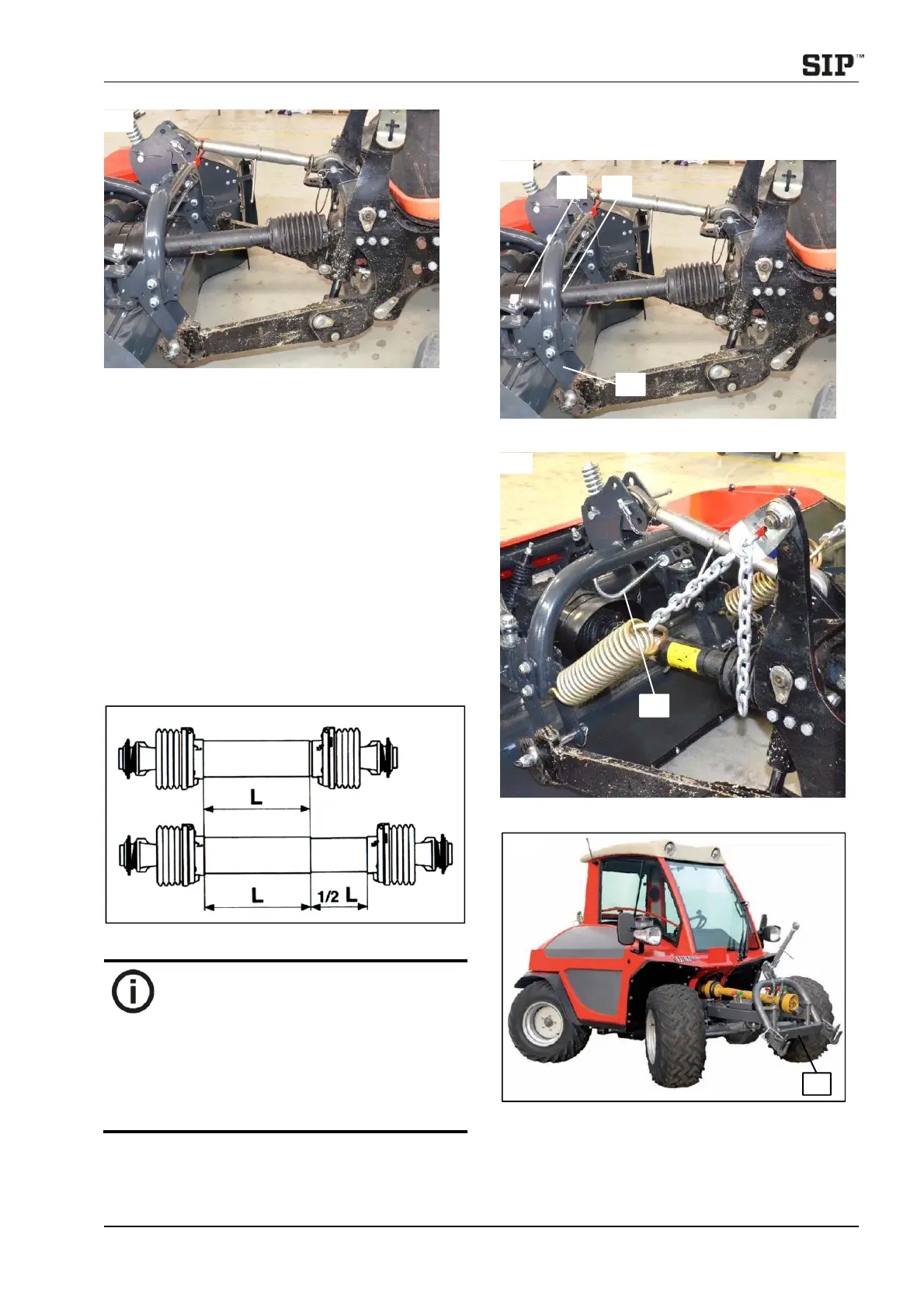

Instruction for work
18
– To adjust the length of the cardan shaft pull the
both halves apart.
– Place the corresponding cardan shaft halves on the
machine's side (1) and on the tractor's side (2).
Safety clutch must be mounted on the
machine's side!
– Set the machine with 3 point hitch to the shortest
position of the P.T.O. shaft.
– Hold both halves together and measure out the
right length.
– For further measurements and adjustments use
the instructions of the P.T.O. shaft manufacturer.
– The length of the cardan shaft in operating position
may be extended to a maximum of 1/2 of length.
– At standstill, the cardan shaft may be extended to a
maximum of 2/3 of length.
–
Danger of material damage: Do not
lower the mower with the hydraulic
before the P.T.O. shaft length is
adjusted.
–
After adjusting and mounting the P.T.O.
shaft perform a test with stand still
P.T.O. shaft, lift the mower from the
lowest to the highest position of the
cutter bar.
2.3.3 Mounting the cardan shaft
12
15
7
11
3
14
5
13
6
4
