定位器之安裝與調整
INSTALLATION AND ADJUSTMENT
OF SYNCHRONIZER

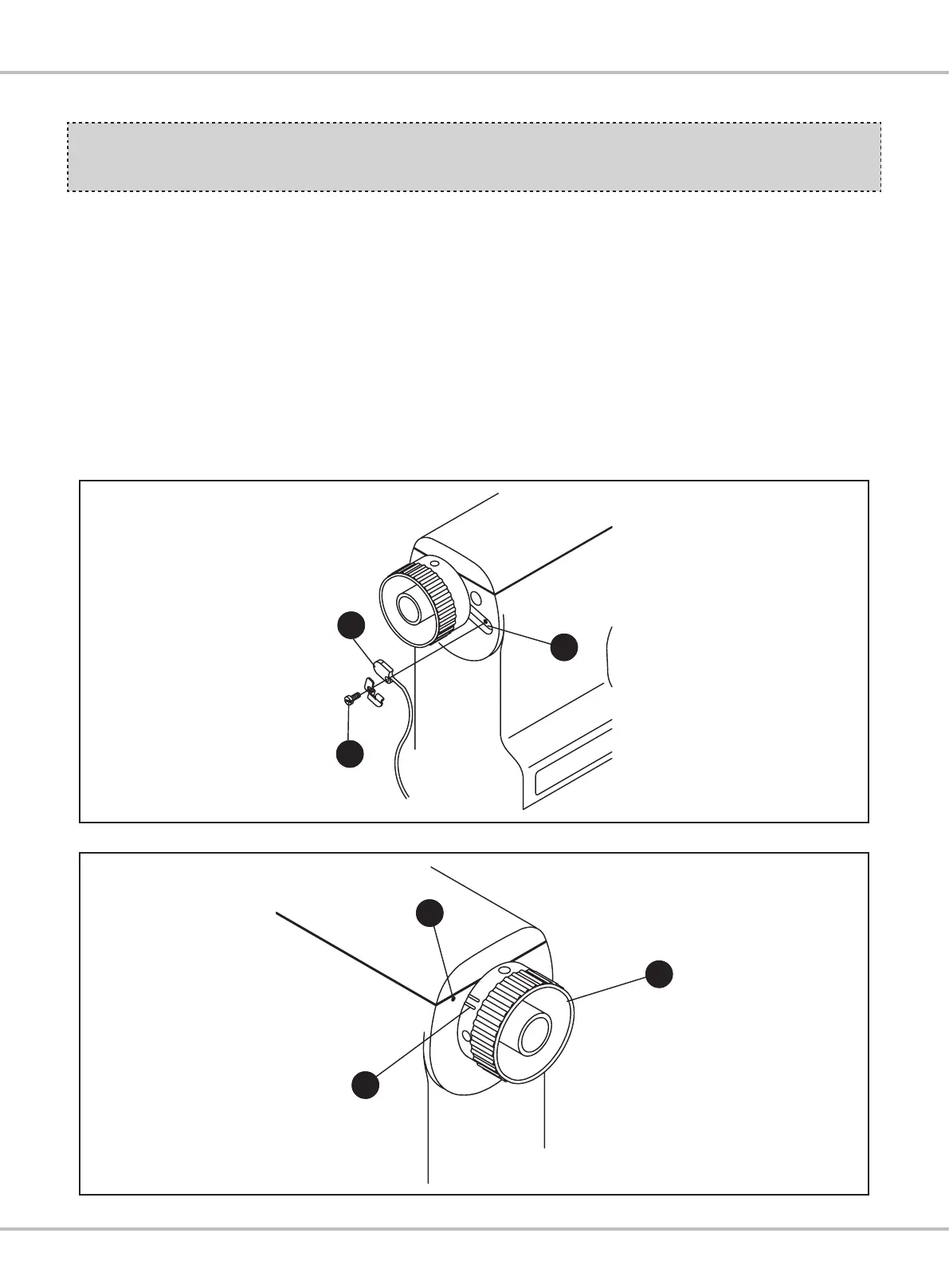

1. 將隱藏式定位器 (1) 壓入車頭長溝 (2) 後，
再以螺絲 (3) 鎖緊。( 圖 8)
2. 在連接各部接線或接頭時應注意先關閉電
源開關。
3. 確認針棒在上定位時，車頭上之記號 (1)
應與手輪 (2) 上所標示的刻畫 (3) 上方一
小刻劃對齊。( 圖 9)
1.Press the hidden synchronizer into the
long groove of the machine head,and then
tighten the screw (3). (Fig.8)
2.Before connecting each wire or plug,please
check that all the electric switches are turned
off.
3.The mark (1) should be aligned with the
shorter marking line (3) on the hand pulley (2)
when the needle bar is at its top dead point.
(Fig.9)
圖 8/Fig.8
圖 9/Fig.9
