Siruba DL3880 Series User Manual

1.

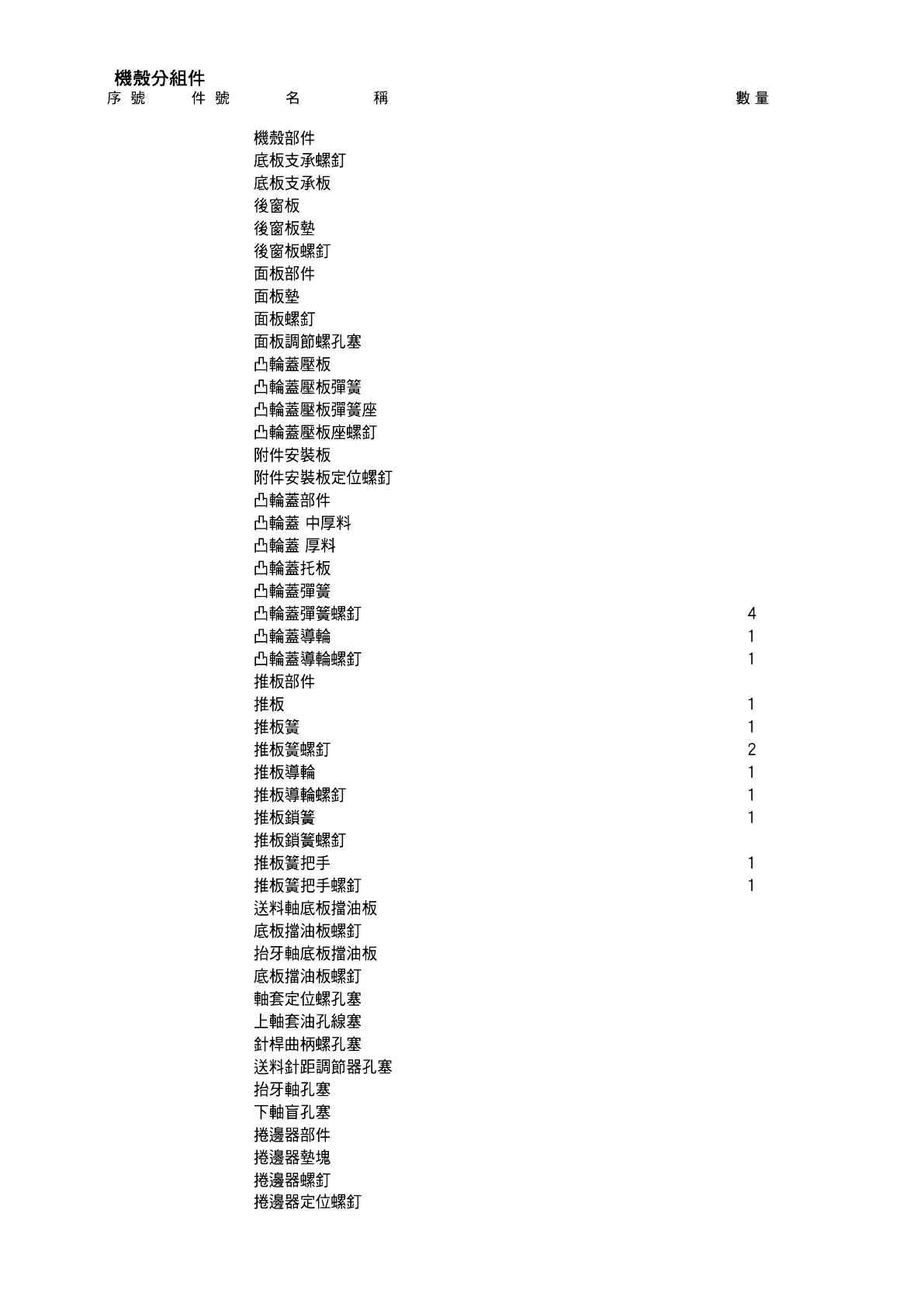

1.Arm bed components
Ref.No. Part.No
Description
Amt.Req.
1
GQ202/13 ·················· Arm bed complete ········································
1
2
GS0127 ············ Bed screw stud ············································
2
3
GR1823 ··············· Bed support ·················································
1
4
GK186 ······················ Side plate ····················································
1
5
GR1812 ·················· Gasket ························································
1
6
GS100 .................. Screw ··························································
8
7
GR1455/2 ..................... Face plate asm. ··········································
1
8
GR1457 ......................... Face plate gasket ········································
1
9
GS100 ..................... Screw ··························································
3
10 GR1458 .......... Rubber plug ·················································
2
11 GR1813 .................. Cam cover latch ···········································
1
12 GW287 .......... Spring ·························································
1
13 GR1814 ...... Spring suspension ·······································
1
14 GS069 ...... Screw ··························································
1
15 GM241 .................. Attachment installing plate····························
1
16 GS012 ... Screw ··························································
1
17 GM242/9 .................. Cam cover asm ········································· (1)
18 GM243
( )
.......... Cam cover (Medium weight fabric) ···············
1
GM243-S
( )
.............. Cam cover (Heavy weight fabric) ·················
1
19 GW289 .................. Cam cover ···················································
1
20 GW290 .................. Spring ·························································
1
21 GS045 .......... Screw ························································
22 GR1815 .................. Cam cover guide ·······································
23 GS0129 .......... Screw ························································
24 GM244/6 ..................... Bed slide asm. ·········································· (1)
25 GM245 ............................. Bed slide ···················································
26 GW291 ......................... Spring ·······················································
27 GS045 .................. Screw ························································
28 GR1816 ..................... Bed slide guide ··········································
29 GS0129 .............. Screw ························································
30 GW292 ..................... Bed slide lock spring ··································
31 GS010 .............. Screw ··························································
2
32 GR1817 .................. Latch ·························································
33 GS44 .......... Screw ························································
34 GR1818 ...... Bed oil shield ···············································
1
35 GS010 .......... Screw ··························································
2
36 GR1819 ...... Bed oil shield ···············································
1
37 GS010 .......... Screw ··························································
2
38 GR1461 .......... Rubber plug ·················································
4
39 GR1462 .......... Rubber plug ·················································
2
40 GR1463 .......... Rubber plug ·················································
1
41 GR1464 ... Rubber plug ·················································
1
42 GR1465 .................. Rubber plug ·················································
1
43 GR1466 .................. Rubber plug ·················································
1
44 GR1916/5
(1/4")
......... Folder ·························································
1
45 GR1923 .................. Gasket ························································
1
46 GS0148 .................. Screw ··························································
2
47 GS0147 .......... Screw ··························································
1
. 21 .
