17. DL3880

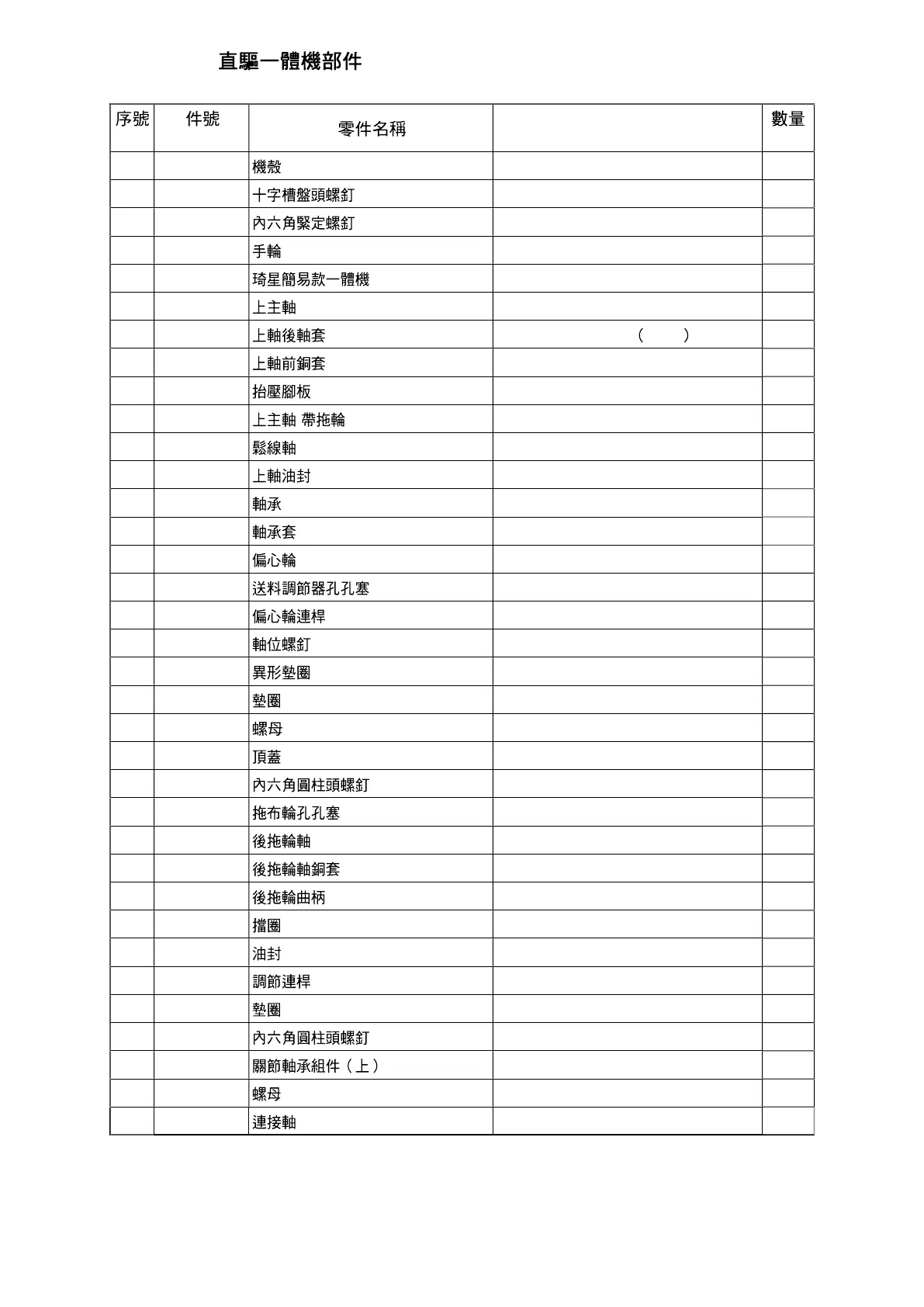

DL3880 Direct drive one mechanism
No. Part. No
Description
Q′ty
1
V20-01 Machine Frame
1
2
LD00222
M5×9
Screw
2
3
LD00083
M5×5
Screw
4
4
V20-04DD Hand wheel
1
5
3880DK-3-01 Motor asm.
1
6
V20-27-DD Main’shaft
1
7
V20-65
Main Shaft Bushing Rear
1
8
V20-19 Copper sets
1
9
V20-30 Board
1
10 V20-27-DD-P
( )
Main’shaft
1
11 V20-22 Tension release shaft
1
12 YF00020 Oil Seal
1
13 ZC00043
6907Z
Ball bearing
1
14 V20-64 Ball bearing sets
1
15 V20-25 Eccentric wheel
1
16 V20-14 Cushion rubber
1
17 V20-21 connecting rod
1
18 V20-32 Screw
1
19 V20-29 Washer
1
20 DQ00045 Washer
1
21 LM00024
SM1/4"×32
Nut
1
22 V20-28 Top cap
1
23 LD00116
M4×12
Screw
4
24 V20-34 Cushion rubber
1
25 V20-35 Puller driving shaft
1
26 V20-36 Bush
2
27 V20-37 Puller driving lever
1
28 V20-38 Collar
1
29 YF00021 Oil Seal
1
30 V20-40 Adjusting Rod Assembly
1
31 DQ00046 Washer
2
32 LD00226
M6×20
Screw
1
33 927PL013 Ball parts(Upper)
1
34 LM00003
M6
Nut
1
35 V20-41 Shaft for linking balls
1
55
