Siruba DL3880 Series User Manual

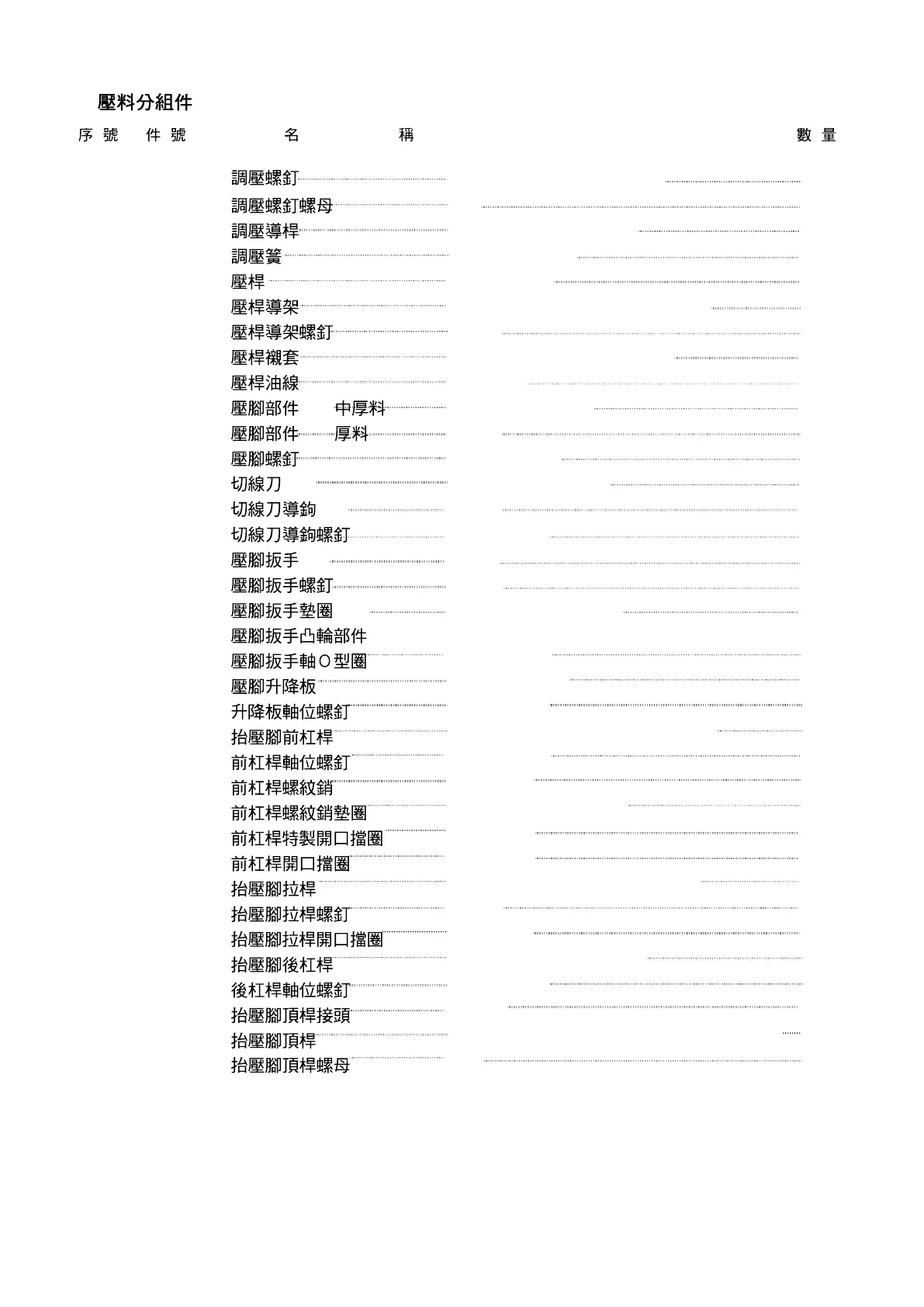

3. 3.Presser bar components
Ref.No.
1
Part.No
GS0553
Description
Presser spring rugulator
Amt.Req.
1
2 GL0114 Nut 1
3 GR1494
Presser bar guide bar
1
4 GW253 Presser spring 1
5 GZ305 Presser bar 1
6 GR1827 Presser bar guide bracket asm 1
7 GS019 Screw 1
8 GO273 Presser bar bushing,lower 1
9 GR1525 Oil wick 1
10 GM246/5
1/4"( )
Presser foot asm.(Medium weight fabric) 1
GM246-H
1/4"( )
Presser foot asm.(Heavy weight fabric) 1
11 GS020 Screw 1
12 GR1832 Thread knife 1
13 GR1833 Thread knife guide 1
14 GS0129 Screw 1
15 GR1499 Hand lifter 1
16 GS021 Screw 1
17 GR1500 Washer 1
18 GR1501/2 Hand lifter cam asm. 1
19 GR1503 Rubber ring 1
20 GR1504 Lifting lever 1
21 GS022 Hinge Screw 1
22 GR1505 Lifting link for lifting lever 1
23 GS023 Hinge Screw 1
24 GS024 Hinge pin 1
25 GR1506 Lifting lever gasket 1
26 GR1508 Snap ring 1
27 GR1507 Snap ring 1
28 GR1834 Lifting lever connecting rod 1
29 GS025 Screw 2
30 GR1510 Snap ring 2
31 GR1835 Lifting lever link rear 1
32 GS0131 Hinge Screw 1
33 GR1836 Swivel 1
34 GX378 lifting lever connecting rod,vertical 1
35 GL19 Nut 1
