Siruba DL3880 Series User Manual

4.

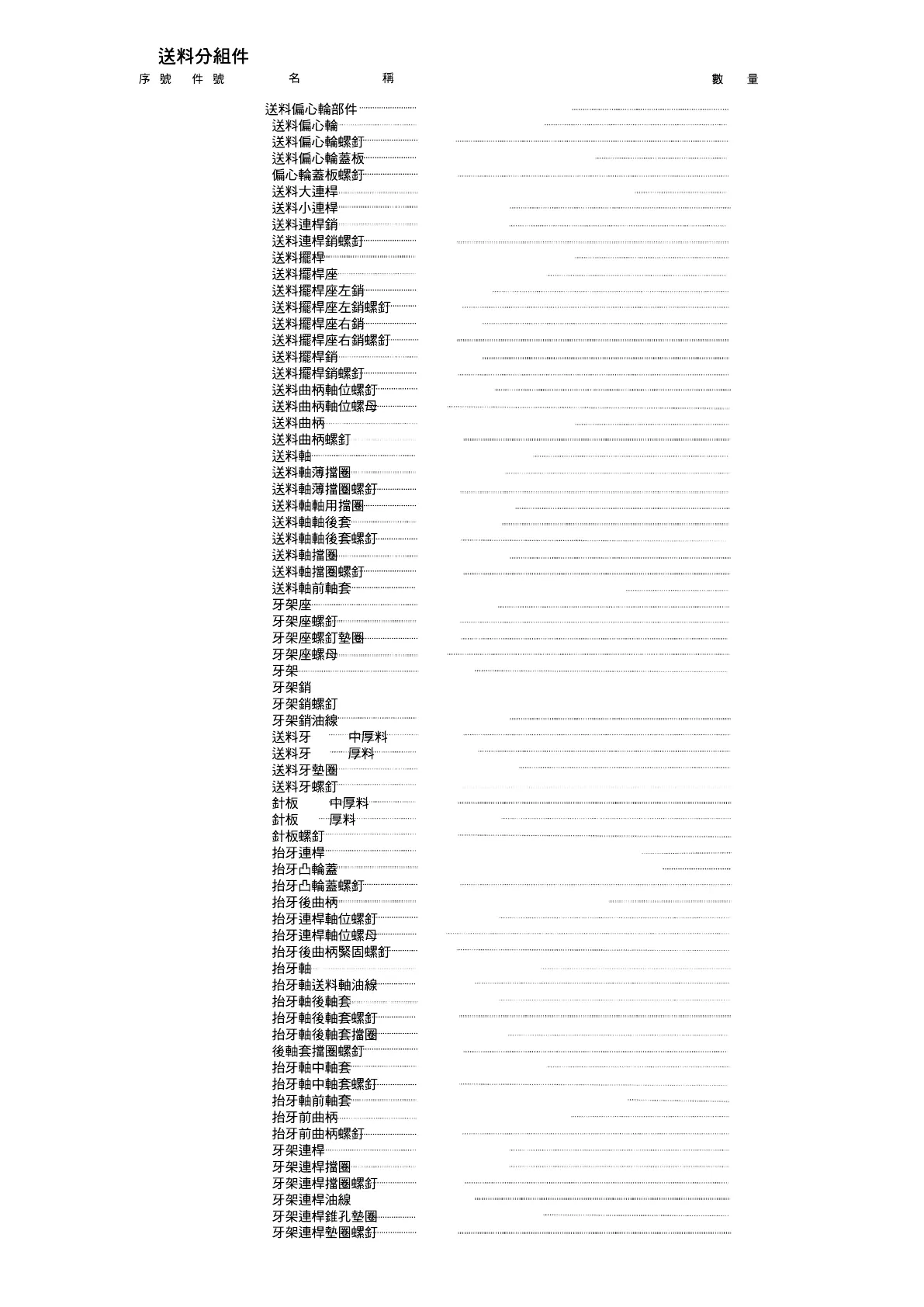

4.Feed mechanism components
Ref.No. Part.No
Description
Amt.Req.
1 GT160/10 Feed eccentric cam asm. 1
2
GT161
Feed
eccentric
cam
2
3 GS034 Screw 1
4 GR1521 Feed eccentric thrust washer 3
5 GS035 Screw 1
6 GH335 Feed rocker shaft connecting rod 1
7 GH380 Connecting rod 1
8 GX340 Connecting pin 1
9 GS036 Screw 1
10 GR1522 Feed driving rocket arm 1
11 GR1523 Feed driving rocket 1
12 GX341 Hingd stud 1
13 GS037 Screw 1
14 GX342 Hinge pin 1
15 GS05 Screw 1
16 GZ279 Hinge pin 1
17 GS038 Screw 2
18 GS039 Hinge screw 1
19 GL7 Nut 1
20 GH337 Feed rocker shaft crank 1
21 GS040 Screw 1
22 GZ280 Feed rocker shaft 1
23 GR1890 Thrust collar 1
24 GS032 Screw 1
25 GR1524 Retaining ring 2
26 GO285 Bushing rear 1
27 GS41 Screw 2
28 GR1469 Thrust collar 1
29 GS39 Screw 2
30 GO286 Feed rocker shaft bushing,front 1
31 GR1838 Feed rocker 1
32 GS040 Screw 1
33 GR1528 Washer 1
34 GL20 Nut 1
35 GR1839 Feed bar 1
36 GX379 Feed bar shaft 1
37 GS042 Screw 2
38 GR1837 Oil wick 1
39 GM247 1/4" ( ) Feed dog 1/4" (Medium weight fabric) 1
GM247-H 1/4" ( ) Feed dog 1/4" (Heavy weight fabric) 1
40 GR1528 Washer 1
41 GS019 Screw 1
42 GM248 1/4" ( ) Throat plate (Medium weight fabric) 1
GM248-H 1/4" ( ) Throat plate (Heavy weight fabric) 1
43 GS044 Screw 2
44 GH381 Feed driving shaft connecting rod 1
45 GR1840 Feed driving eccentric thrust washer 1
46 GS0115 Screw 2
47 GH397 Feed driving shaft crank rear 1
48 GS039 Hinge screw 1
49 GL7 Nut 1
50 GS040 Screw 1
51 GZ306 Feed driving shaft 1
52 GR1837 Oil wick 2
53 GO285 Bushing rear 1
54 GS48 Screw 1
55 GR1469 Thrust collar 1
56 GS39 Screw 2
57 GO300 Bushing,intermediate 1
58 GS04 Screw 1
59 GO306 Feed rocker shaft bushing,front 1
60 GH382 Feed rocker shaft crank 1
61 GS0132 Screw 2
62 GH383 Feed bar link 1
63 GR1841 Thrust collar 1
64 GS013 Screw 1
65 GR1837 Oil wick 1
66 GR1842 Counter-sunk washer 1
67
GS0133
Screw
1
. 27 .
