Siruba DL3880 Series User Manual

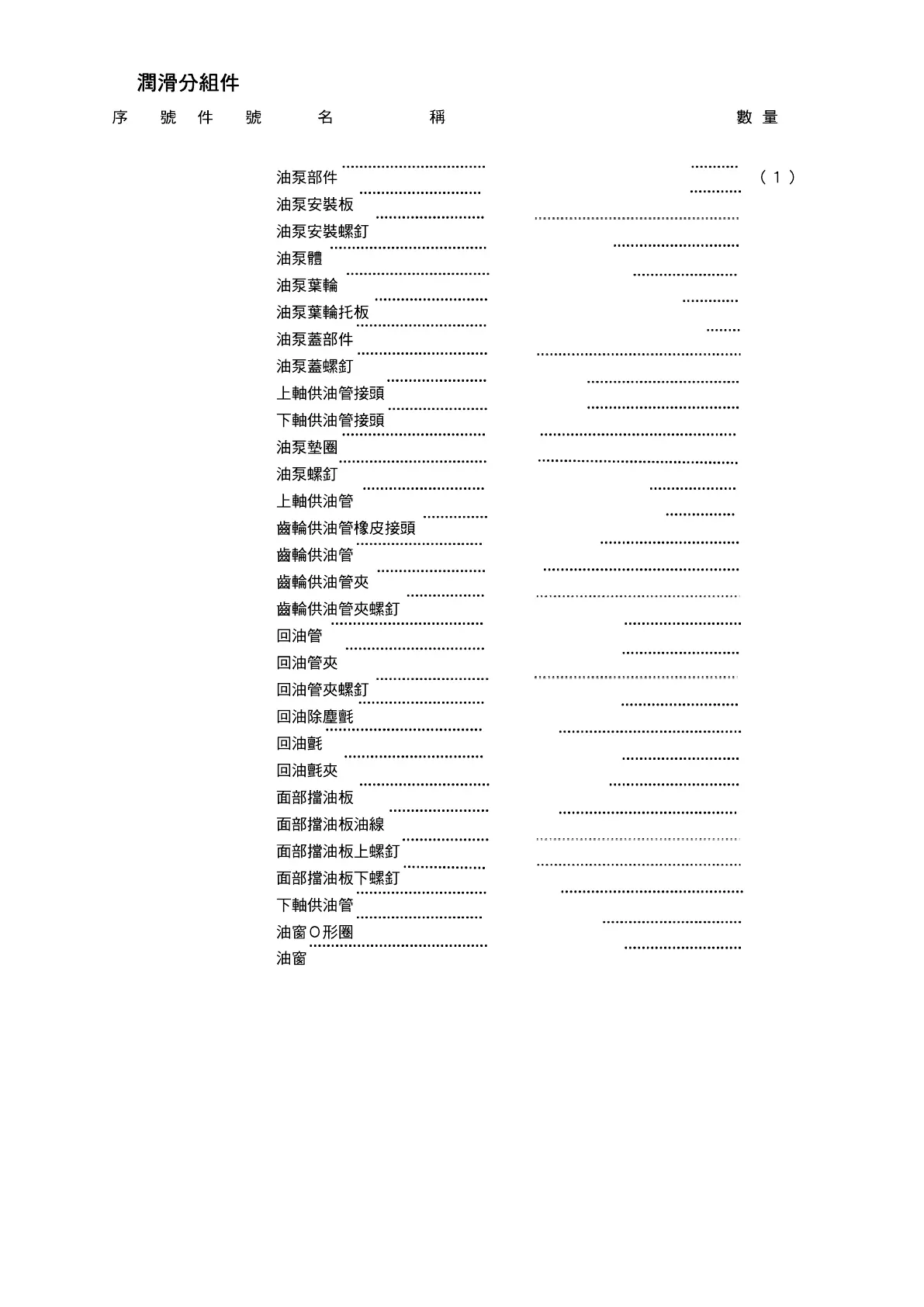

8. 8.Lubrication
Ref.No. Part.No Description
Amt.Req
.
1 GR1899/21 Lubricating oil pump asm.
2 GR1549 Oil pump installing base 1
3 GS553 Screw 4
4 GR1551 Lubricating oil 1
5 GR1900 Oil pump impeller 1
6 GR1553 Oil pump impeller cover 1
7 GR1554/2 Lubricating oil pump cover 1
8 GS554 Screw 3
9 GR1557G Rubber joint 1
10 GR1559G Rubber joint 1
11 GR1901 Collar 3
12 GS0109 Screw 3
13 GR1902 Main shaft oil tube 1
14 GR1903 Oil sight window base 1
15 GR1904 Gear oil pipe 1
16 GR1566 Holder 2
17 GS81 Screw 2
18 GR1565 Oil felt presser 1
19 GR1566 Oil felt presser 1
20 GS81 Screw 1
21 GR1567 Oil felt presser 1
22 GR1568 Oil felt 1
23 GR1569 Oil felt presser 1
24 GR1906 Arm oil shield 1
25 GR1735 Oil wick 1
26 GS069 Screw 1
27 GS010 Screw 1
28 GR1909 Oil tube 1
29 GR1562 O-Rubber ring 1
30 GR1561 Oil sight window 1
. 37 .
