Siruba DL3880 Series User Manual

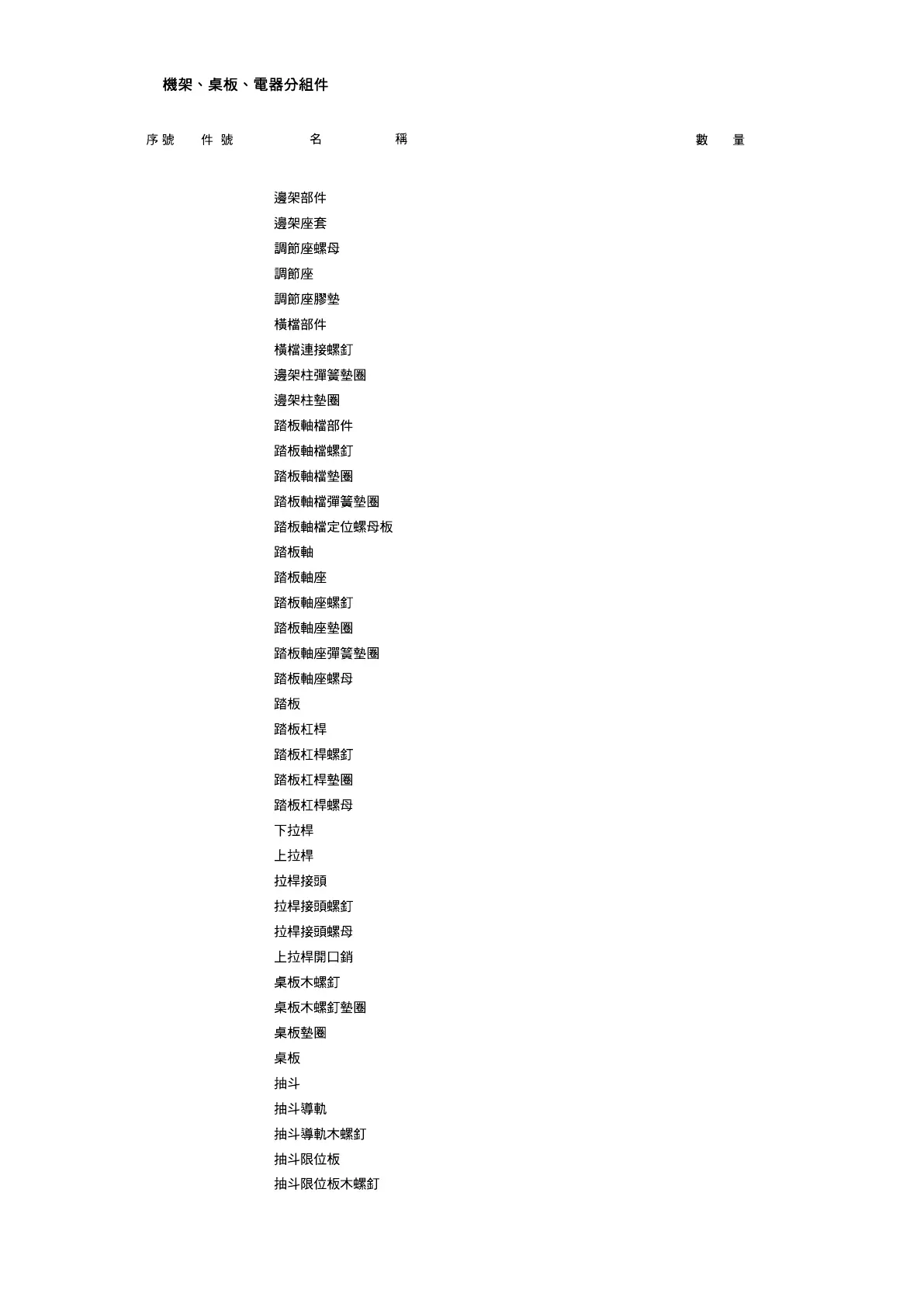

12. 12.Machine stand,table and
electric appliance components
Ref.N
o.
Part.No
Description
Amt.Req.
1 GKR193/5 Stand side asm 2
2 GKR194 Rubber cushion 4
3 GKL104 Nut 4
4 GKR196/2 Screw 4
5 GKR198 Spring washer 4
6 GKR173/3 Stand side support asm 1
7 GKS119 Screw 4
8 GKR176 Spring washer 4
9 GR253 Washer 4
10 GKR178/3 Treadle brace asm 1
11 GKS110 Screw 2
12 GKR122 Washer 2
13 GKR106 Spring washer 2
14 GKR181 Treadle brace locknut plate 2
15 GKX106 Treadle shaft 1
16 GKR184 Treadle bracket 2
17 GKS110 Screw 2
18 GKR122 Washer 4
19 GKR106 Spring washer 2
20 GKL102 Nut 2
21 GKR182 Treadle 1
22 GKR111 Treade pitman 1
23 GKS102 Screw 2
24 GKR112 Washer 2
25 GKL102 Nut 2
26 GKR116 Pitman rod,lower 1
27 GKR118 Pitman rod,upper 1
28 GKR183 Joint 1
29 GKS110 Joint screw 1
30 GKL101 Joint nut 1
31 GKX101 Pitman rod split pin(uooer) 1
32 GBS114 Table wood screw 4
33 GKR112 Table wood screw washer 4
34 GKR186 Table washer 4
35 DL7000T-T1 Table 1
36 GBR151 Drawer 1
37 GBR152 Drawer rail 2
38 GBS121 Drawer rail wood screw 6
39 GBR153 Drawer limit plate 1
40 GBS120 Drawer limit plate wood screw 2
. 45 .
