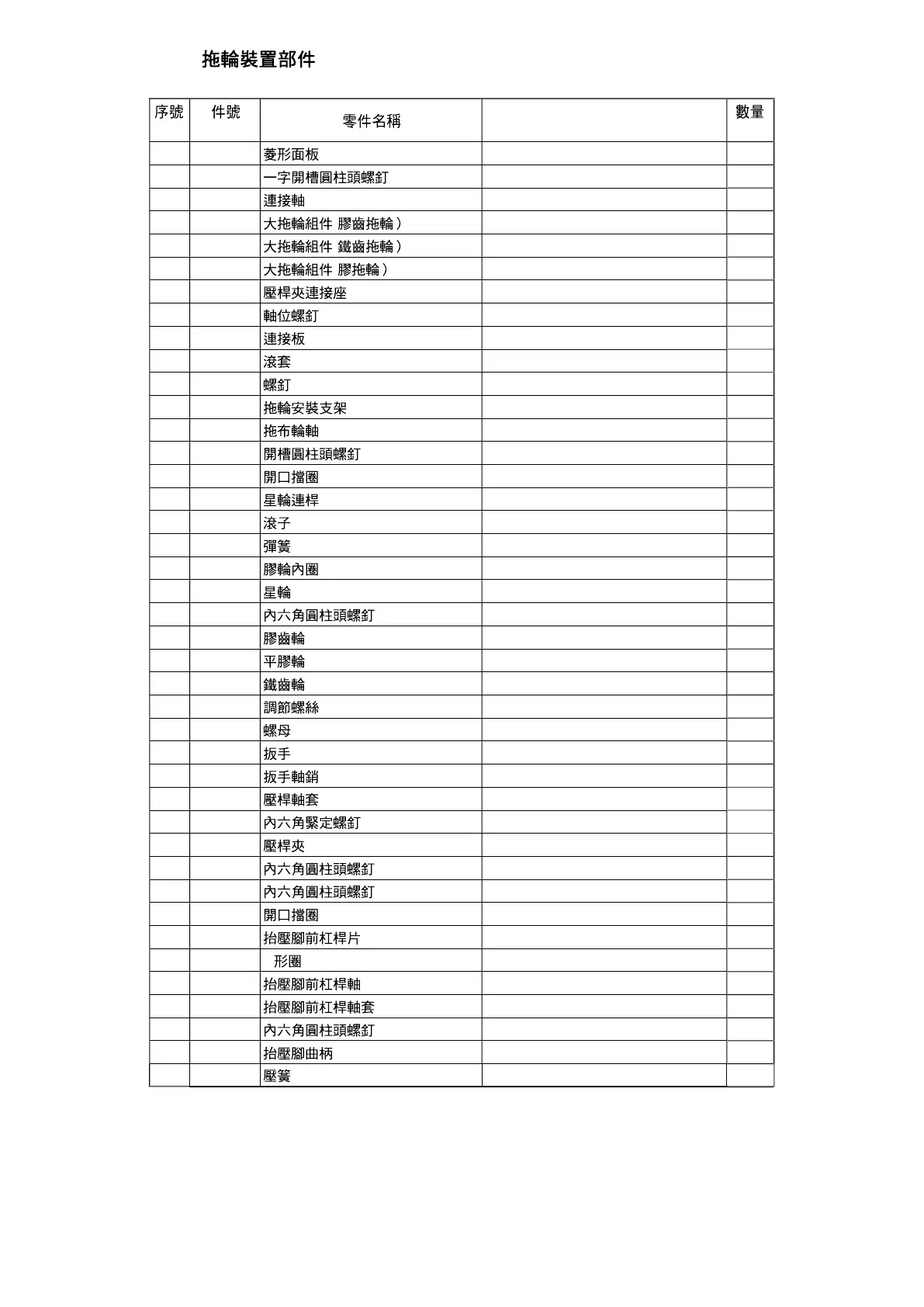

P tugboat device components
No. Part. No
Description
Q′ty
1 V21-01 Diamond panel 1
2 V4-21 Screw SM3/16”×28 4
3 V21-03 Shaft for linking balls 1
4 V21-04 ( Large tug components(Plastic gear) 1
4 V21-04-T ( Large tug components(Iron gear) 1
4 V21-04-J ( Large tug components(Rubber wheel) 1
5 V21-05 Connecting seat 1
6 V18-60 Screw 1
7 V21-07 Plate 1
8 V21-08 Collar 1
9 V21-09 Screw 1
10 V21-10 Upper puller Stent 1
11 927PL049 Puller Shaft 1
12 LD00170 SM3/32″×56 Screw SM3/32″×56 6
13 TDQ00006 6 Ring 1
14 V21-14 Star ferry link 1
15 927PL052 Rolling shaft 6
16 TH00024 Spring 6
17 V21-17 Tire inner ring 1
18 927PL054 Star ferry 2
19 V20-49 SM11/64″×40 Screw 2
20 V21-20 (G) Plastic gear (G) 1
21 V21-21 (P) Rubber wheel (P) 1
22 V21-22 (I) Iron gear (I) 1
23 927BT001 Screw 1
24 V21-24 Nut 1
25 927PL030 Presser foot lifter 1
26 927PL029 Support stud 1
27 927PL031 Presser bar bush 1
28 LD00003 M6×6 Screw M6×6 3
29 V18-4 Presser bar clamp 1
30 LD00044 M5×10 Screw M5×10 1
31 V18-61 SM15/64″×28 Screw SM15/64″×28 1
32 V18-53 7 Ring 2
33 V18-51 Leverage tablets 1
34 V18-54 O O ring 1
35 V18-52 Lever shaft 1
36 V18-55 Sleeve 1
37 V18-57 M4×16 Screw M4×16 1
38 V18-56 Crank 1
39 V18-2 Presser bar spring 1
