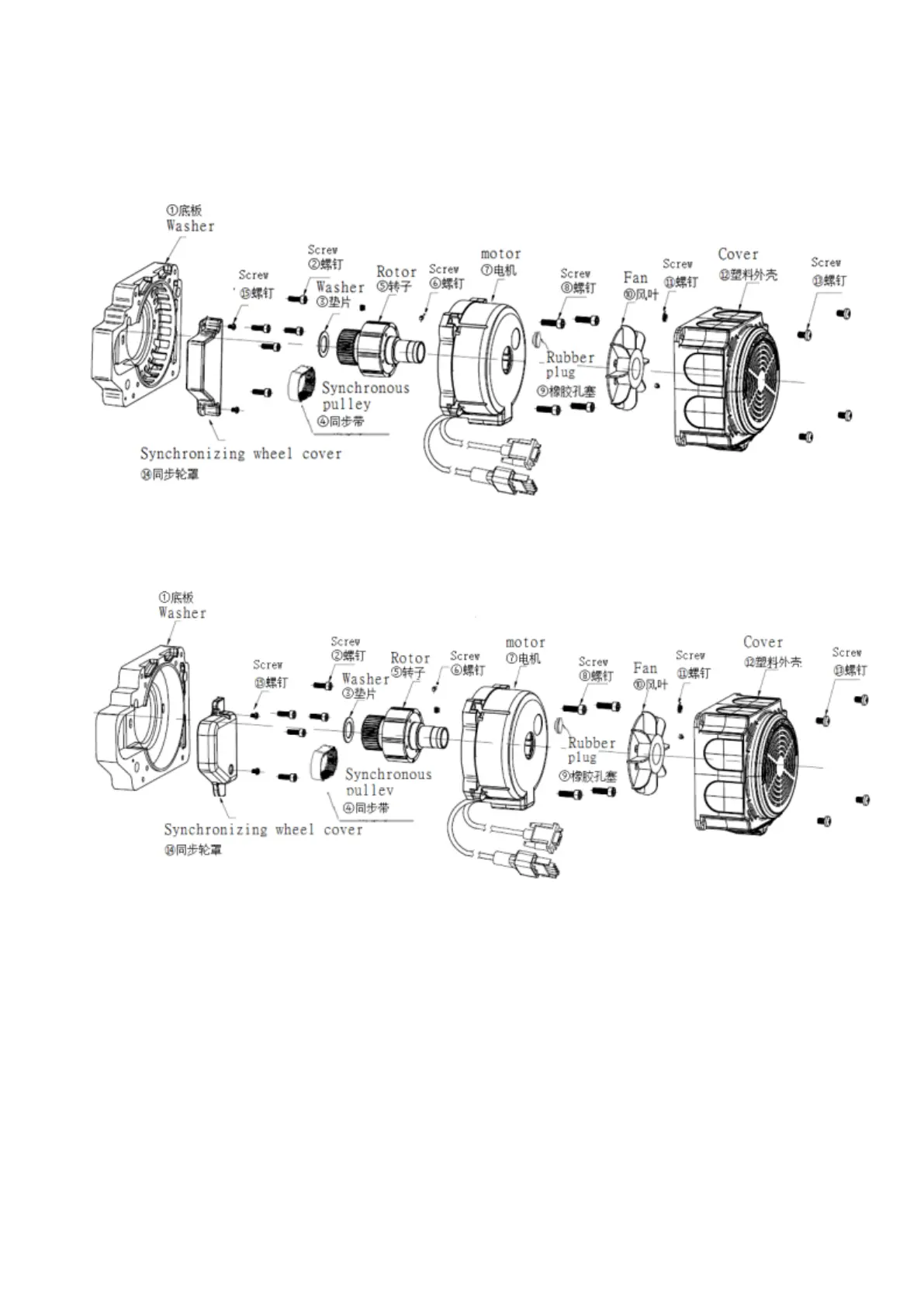

2.直驅電機安裝示意圖:
Schematic diagram of the installation of direct drive motor
C007KD
S007KD
直驅電機安裝共 6 步驟：Motor installation of a total of 6 steps
（1）裝底板：Install Plate
a）拆掉縫紉機上的手輪、皮帶、皮帶罩。
Remove the hand wheel, belt cover and wind blade on the sewing machine.
b）如安裝圖所示將圖①底板用圖②螺釘鎖在對應的縫紉機孔位上。
According to the above install picture, use the screw(picture②) installing
the plate(picture①) into the sewing machine head.
