Siruba S007KD - Page 9

（2）裝轉子：Install rotor
a)如安裝圖所示將圖③墊片放置縫紉機軸上，將圖⑤轉子裝入縫紉機
軸上，用⑥的螺釘鎖緊，裝入圖④同步帶(適用於 C007KD 或 S007KD)
According to the above install picture, put the washer(picture③) into the
sewing machine axis, then put the rotor(picture⑤) to the sewing machine
axis, use the screw(picture⑥) to fix it, then install the synchronizing
pulley(picture④). (apply to C007KD or S007KD)
（3）裝電機：Install Moter
a)如安裝圖所示將圖⑦電機裝入並用圖⑧螺釘鎖緊固定在圖①底板上
（注：電機裝入轉子要注意磁鐵吸力，小心夾到手。）
According to the above install picture,use the screw(picture⑧)to fix the
motor(picture⑦) in to the plate(picture①).(attention: please take care the
magnetism to hurt the hand when put the motor to the rotor.)

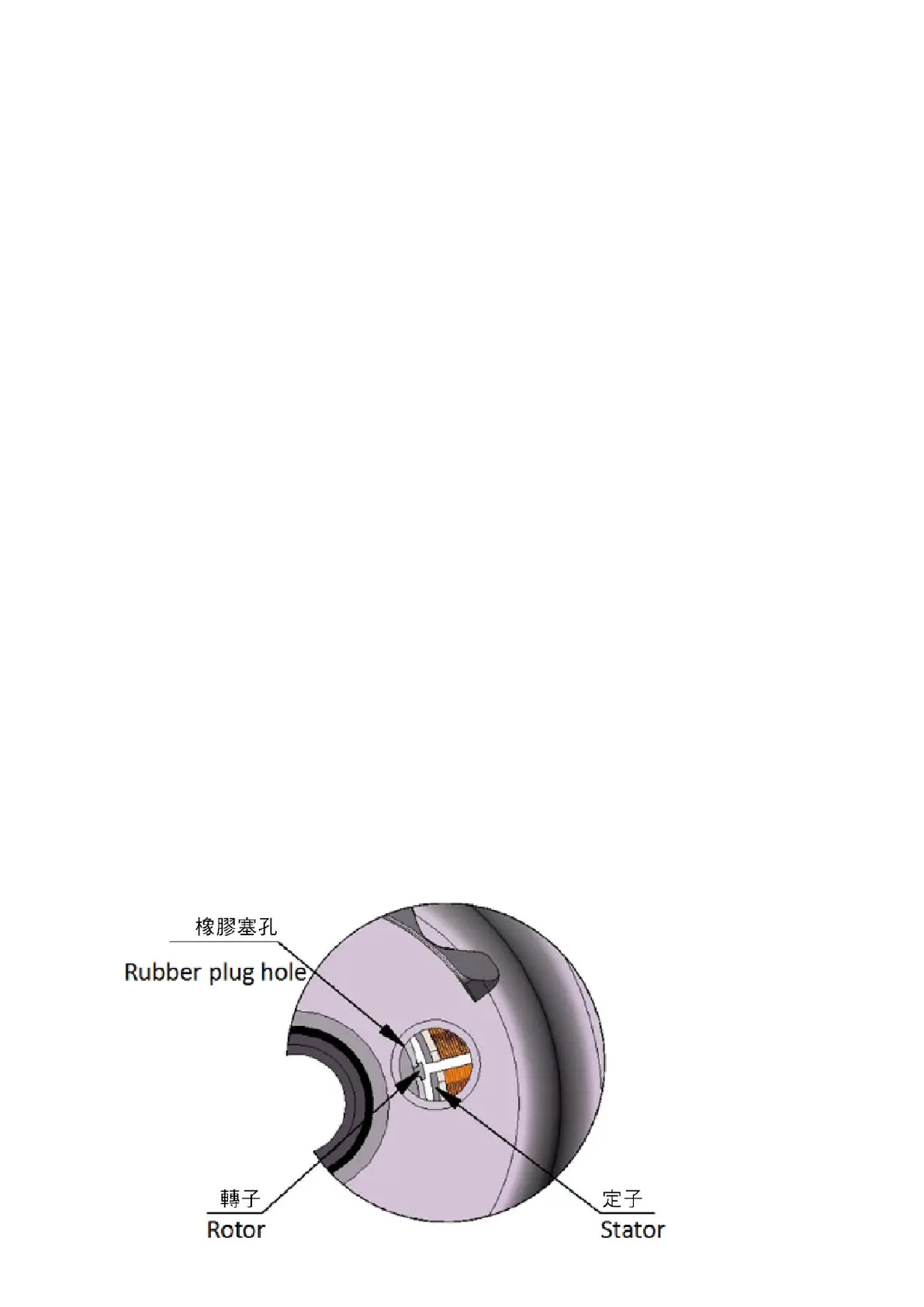

（4）檢查轉子和定子是否裝好
Check the rotor and the stator is installed or not
A）拿出圖⑨橡膠孔塞。
Taking out figure⑨rubber hole stopper.
B）目測轉子平面與定子平面是否相平，兩面相平度不得超過 1.5mm
（看剖視圖 A),如果超過 1.5mm 的話,要拆掉電機和轉子用圖⑪墊片來調
整。
Check the plane of the rotor and the stator is flat or not, two surface
roughness shall not exceed 1.5mm(See section view A), if more than 1.5mm,
to remove the motor and the rotor with figure⑪gasket to adjust
. 圖 A
