TECHNICAL DATA

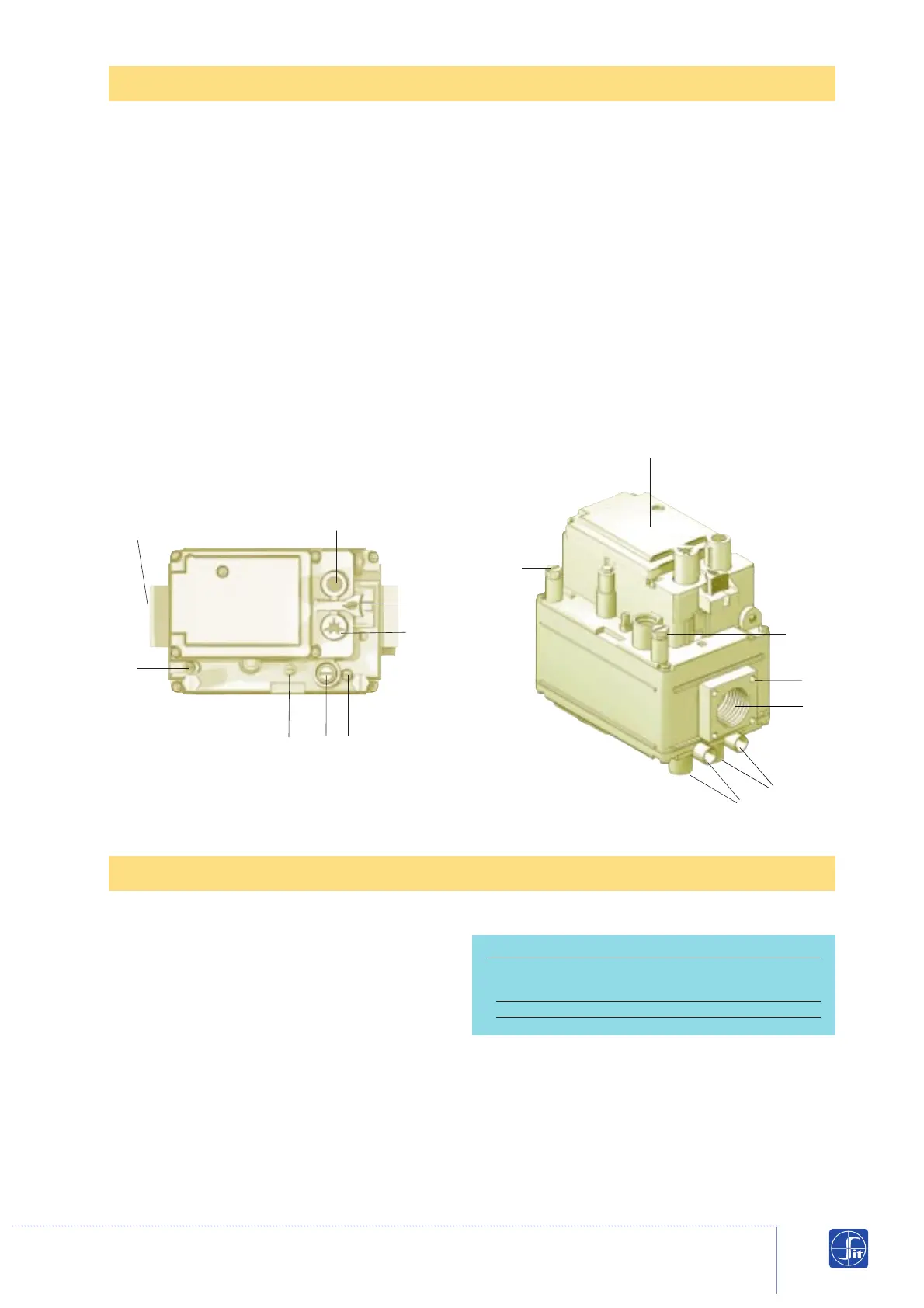

DESCRIPTION
7 Pressure regulator override device
8 Inlet pressure test point
9 Outlet pressure test point
10 On-off solenoid valve
11 Thermocouple connections
12 Pilot outlets
13 Main gas inlet
14 Main gas outlet
15 Holes (M5) for fixing flanges
8
9
10
11
13
15
• Gas connections: Rp 1/2 ISO 7 (Rp 3/4 on request)
• Installation position: any position
• Gas families: I, II and III
• Maximum gas inlet
pressure: 50 mbar
• Outlet pressure setting
range: 3...18 mbar (on request 15...30)
• Working temperature
range: 0...60 °C
• Pressure regulator: Class C
• Automatic solenoid valve: Class D
Data refer to EN 126
1 Ignition button (pilot position)
2 Main burner ignition enabling
button
3 Shutdown button
4 Pressure regulator setting device
5 Pilot gas flow adjusting screw
6 Step ignition device adjustment
screw
12
POWER SUPPLY
Voltage (AC) Consumption (mA)
230 V 50 Hz 75
24 V 50 Hz 650
7
6
2
1
3
4
5
14
