13

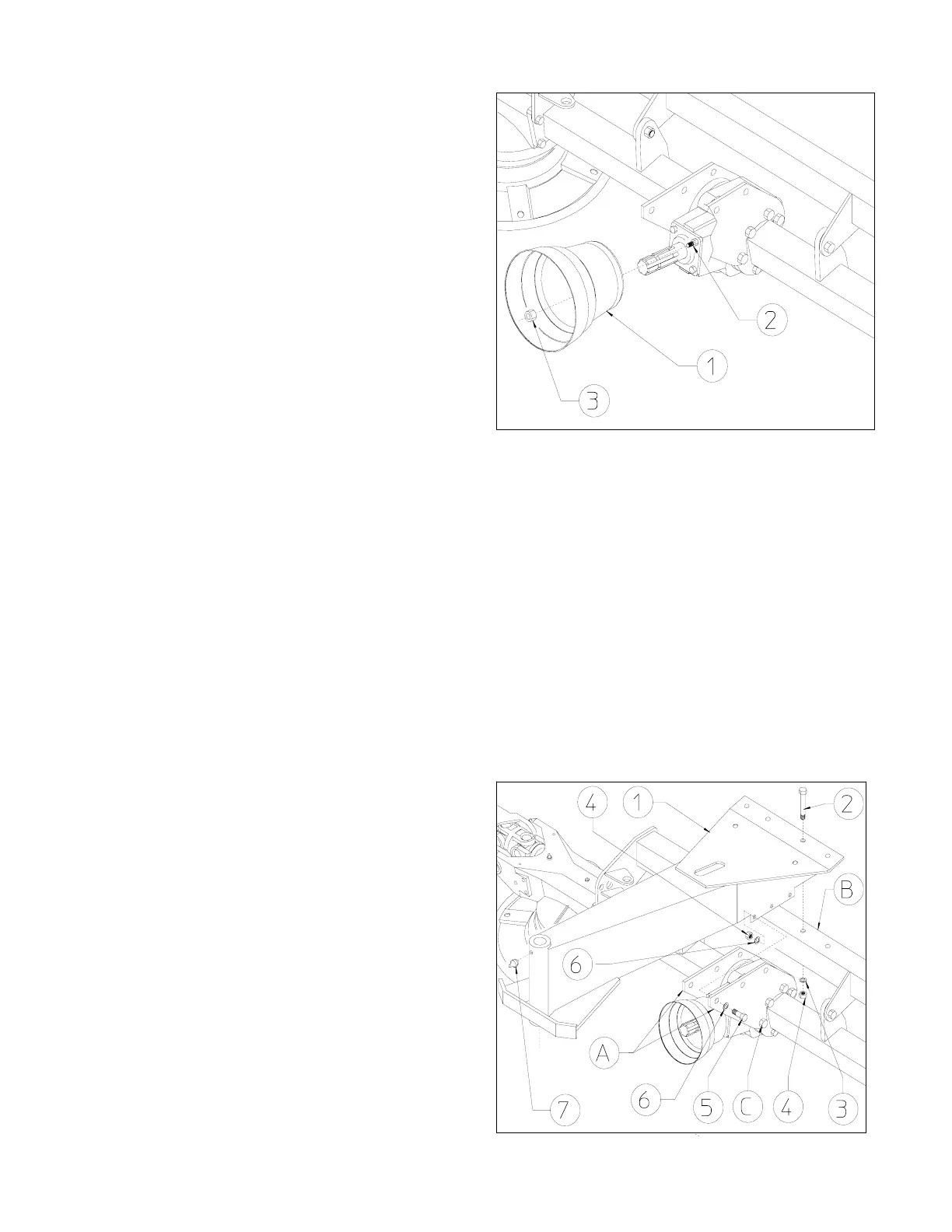

STEP “A”
Attach the guard 1 to the central gear box
2 using the nuts 3.
In this step, you will use:
Item 3 : 2 nuts M8 (0.31“)
STEP “B”
NB. The plates “A” are assembled to the chassis of the machine by the
manufacturer. The assembly personnel may loosen screws “C” in order to make
it easier to assemble the frame 1. In this case, he must subsequently re-tighten
them correctly, otherwise the stability of the machine would be prejudiced.
Secure the frame 1 to the seats provided on the cross-member “B” and the plates “C”
using the screws 2, the spring washers 3, the nuts 4, the screws 5, the spring washers
6 and the nuts 4. Fit the grease nipple 7 to its seat on the frame 1.
In this step, you will use:
Item 2 : 4 screws M12x80 (0.47”x 3.15”)
Item 3 : 4 spring washers ø13 (ø0.51”)
Item 4 : 10 nuts M12 (0.47”)
Item 5 : 6 screws M12x35 (0.47”x 1.38”)
Item 6 : 12 washers ø13 (ø0.51”)
Item 7 : 1 grease nipple M6 (ø0.24”)
